CloudSync + TerraSync: Your Data, Everywhere: Two-way sync with Google Drive, OneDrive, Dropbox, Baidu, and Alibaba Cloud. Keep your PC, Mac, and NAS in perfect sync — local speed, global access.
Features:
- Quad Core 2.0 GHz processor with Max burst up to 2.9 GHz.
- 4 GB DDR4 non-ECC SODIMM memory, supporting up to 16GB.
- 4 disk slots supporting 3.5" SATA HDD, 2.5" SATA HDD and 2.5" SATA SSD.
- Maximum internal raw storage capacity of 120 TB (30TB x4).
- 1 x RJ-45 2.5GbE Network Port.
- 2 x 10 Gbps + 1 x 5 Gbps USB3.2 Host Port.
- Hardware transcoding supports H.264, H.265, MPEG-4 and VC-1 up to 4K.
- Supports RAID Migration and Drive Hot Swap.
Specifications:
| Processor |
|
| Processor Architecture |
x86 64-bit |
| Processor Frequency |
Quad Core 2.0 GHz (Max burst up to 2.9 GHz) |
| Hardware Transcoding Engine |
H.264, H.265, MPEG-4, VC-1; maximum resolution:
4K (4096 x 2160); maximum frame rate per second (FPS): 60
|
| Hardware Encryption Engine |
√ |
| Memory |
|
| System Memory |
4 GB DDR4 non-ECC SODIMM |
| Pre-installed Memory Module |
4 GB DDR4 non-ECC SODIMM (1x 4GB) |
| Total Memory Slot Number |
1 (DDR4 SODIMM) |
| Maximum Supported Memory |
16GB DDR4 non-ECC SODIMM |
| Storage |
|
| Disk Slot Number |
4 |
| Compatible Drive types |
3.5" SATA HDD2.5" SATA HDD2.5" SATA SSD |
| Maximum Internal Raw Storage Capacity |
120 TB (30TB x4) (Capacity may vary by RAID types) |
| RAID Migration |
√ |
| Drive Hot Swap |
√ |
| File System |
|
| Internal Drive |
Btrfs, EXT4 |
| External Drive |
EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS |

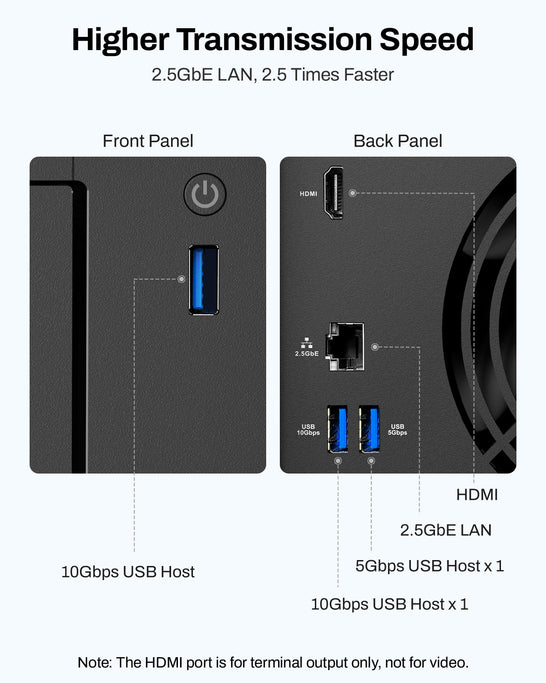

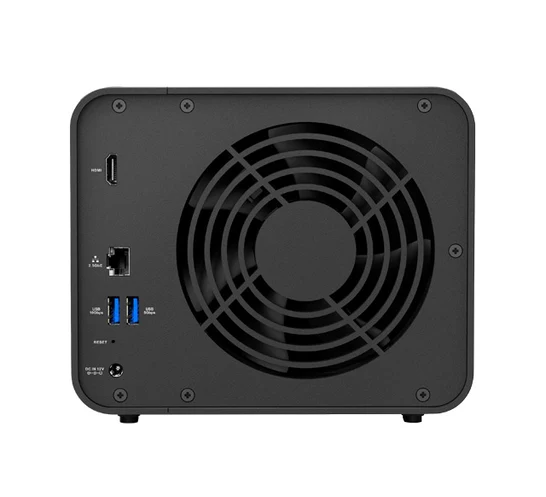

| External Ports |
|
| RJ-45 2.5GbE Network Port |
1 |
| USB3.2 Host Port |
2 x 10 Gbps + 1 x 5 Gbps |
| HDMI |
1 x HDMI |
| Appearance |
|
| Size (H*W*D) |
222 x 179 x 154 mm |
| Packaging Size (H*W*D) |
300 x 275 x 186 mm |
| Weight |
Net Weight: 2.1 Kg , Gross Weight: 3.2 Kg |
| Others |
|
| System Fan |
120 x 120 x 25mm 1PCS |
| Fan Mode |
Smart, High speed, Middle speed, Low speed |
| Noise Level |
21.0 dB(A) （Using 2 SATA HDDs/SSDs in standby mode; Test environment noise: 17.3dB(A); Test distance: 1m） |
| Power Supply |
90 W |
| Redundancy Power Supply |
/ |
| AC Input Voltage |
100V - 240V AC |
| Current Frequency |
50/60 Hz, Single frequency |
