| Processor |
|
| Processor Model |
Intel N95 |
| Processor Architecture |
X.86 64-bit |
| Processor Frequency |
4-Core (Max burst up to 3.4 GHz) |
| Hardware Encryption Engine |
√ |
| Hardware Transcoding Engine |
H.264, H.265, MPEG-4, VC-1;maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60 |
| Memory |
|
| System Memory |
8 GB DDR5 non-ECC SODIMM |
| Pre-installed Memory module |
8 GB DDR5 non-ECC SODIMM (1x 8 GB) |
| Total Memory Slot Number |
1 (DDR5 SODIMM) |
| Maximum Supported Memory |
32 GB DDR5 non-ECC SODIMM |
| Storage |
|
| Disk Slot Number |
6 |
| Compatible Drive types |
3.5" SATA HDD2.5" SATA HDD2.5" SATA SSD |
| Maximum Internal Raw Storage Capacity |
132 TB (22 TB x6) (Capacity may vary by RAID types) |
| Drive Hot Swap |
√ |
| File System |
|
| Internal Drive |
Btrfs, EXT4 |
| External Drive |
EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS |

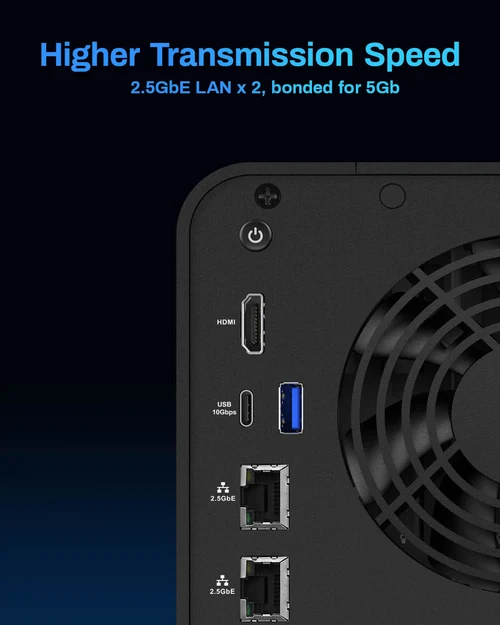

| External Ports |
|
| RJ-45 2.5GbE Network Jack |
2 |
| USB3.2 Host Port |
Type A *1 (10 Gbps) ; Type C *1 (10 Gbps) |
| HDMI |
1（HDMI 2.0b) |
| M.2 2280 NVMe Slot |
2 (PCIe 3.0 x1） |
| Appearance |
|
| Size (H*W*D) |
154x 240 x222 mm |
| Packaging Size (H*W*D) |
188 x 342 x 281 mm |
| Weight |
Net Weight: 2.7 Kg Gross Weight: 4.2 Kg |
| Others |
|
| System Fan |
92 x 92 x 25 mm 2PCS |
| Fan Mode |
Smart, High speed, Middle speed, Low speed |

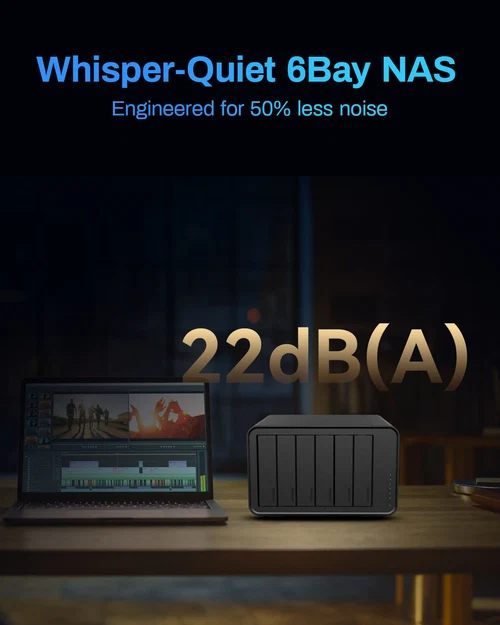

| Noise Level |
22.0 dB(A) （Using M.2 SSDs in standby mode;
Test environment noise: 17.3dB(A); Test distance: 1m）
|
| Power Supply |
150 W |
| AC Input Voltage |
100V - 240V AC |
| Current Frequency |
50/60 Hz, Single frequency |
| Power Consumption |
43.0 W(Fully loaded WD RED WD221KFGX 22TB hard drive(s) in read/write state)
15.0 W (Fully loaded WD RED WD221KFGX 22TB hard drive(s) in hibernation)
|
| Certificate |
FCC, CE, CCC, KC |
| Environment |
RoHS, WEEE |
| Temperature |
|
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
| TOS Features |
|
| OS Supported |
|
| Supported Client OS |
Windows OS, Mac OS, Linux OS |
| Supported Web Browsers |
Google Chrome 97.0.xxxx, Mozilla Firefox 9.3, Apple Safari 12.1 ; Microsoft Edge 99.0.xx or later version. |
| Supported mobile OS |
iOS14.0, Android 10.0 or later version |
| Storage Management |
|
| Supported RAID Types |
TRAID, TRAID＋, Single, JBOD, RAID 0, RAID 1, RAID5, RAID 6, RAID 10 |
| Maximum Internal Volume Number |
256 |
| Maximum iSCSI Target |
128 |
| Maximum iSCSI LUN |
256 |
| Volume Expansion with Larger HDDs |
TRAID, TRAID＋, RAID5, RAID 6, RAID 10 |
| Volume Expansion by Adding a HDD |
/ |
| RAID Migration |
√ |
| SSD Cache |
√ |
| Hot Spare |
√ |
| SSD TRIM |
√ |
| Hard Drive S.M.A.R.T. |
√ |
| Seagate IHM |
√ |
| NVRAM write cache(BBU-protected) |
/ |
| Shared Folder Snapshot |
√ |
| LUN Snapshot |
√ |
| File Services |
|
| File Protocol |
SMB/AFP/NFS/FTP/SFTP/WebDAV |
| Maximum Concurrent SMB/AFP/FTP/SFTP Connections |
512 |
| Windows Access Control List (ACL) Integration |
√ |
| NFS Kerberos Authentication |
√ |
| Account & Shared Folder |
|
| Maximum local user's account number |
2048 |
| Maximum local group number |
512 |
| Maximum shared folders number |
512 |
| Maximum shared folders syncing tasks |
8 |
| Backup |
|
| Rsync Backup |
√ |
| Duple Backup |
√ |
| Centralized Backup |
√ |
| Snapshot |
√ |
| USB Backup |
√ |
| Cloud Sync |
√ |
| Time Machine Backup |
√ |
| File System Snapshot |
√ |
| TFM Backup |
√ |
| Networking |
|
| TCP/IP |
IPv4/IPv6 |
| Protocols |
CIFS/SMB, NFS, FTP, SFTP, HTTPS, SSH, iSCSI, SNMP |
| Link Aggregation |
√ |
| DLNA Compliance |
√ |
| VPN Client |
√ |
| VPN Server |
√ |
| Proxy Client |
√ |
| Proxy Server |
/ |
| UPnP/Bonjour Discovery |
√ |
| TNAS.online Remote Access |
√ |
| DDNS |
√ |
| Access Right Management |
|
| Batch users creation |
/ |
| Import/Export users |
√ |
| User Quota Management |
√ |
| Local user access control for CIFS/SAMBA and FTP |
√ |
| Domain Authentication |
|
| AD Domain |
√ |
| LDAP Client |
√ |
| LDAP Server |
/ |
| Security |
|
| Firewall Protection |
√ |
| Account Auto-block Protection |
√ |
| AES Shared Folder Encryption |
√ |
| Importable SSL certificate |
√ |
| Instant Alert via email, Desktop Notification, Beep |
√ |
| RSA 2048 Encryption（TOS 7.0） |
√ |
| PAM (Pluggable Authentication Modules) |
√ |
| OTP Authentication（TOS 7.0） |
√ |
| HyperLock File System（TOS 7.0） |
√ |
| Power Management |
|
| Power Resume |
√ |
| Scheduled Power On/Off |
√ |
| Wake up On LAN（WOL） |
√ |
| UPS Supported |
√ |
| Administration |
|
| Multi-window, Multi-task System Management |
√ |
| Custom Desktop |
√ |
| Control Panel |
√ |
| Resource Monitor |
√ |
| Syslog |
√ |
| Applications |
|
| Application Center |
√ |
| iSCSI Target |
√ |
| Terra Photos |
√ |
| TerraSync |
√ |
| Duple Backup |
√ |
| CloudSync |
√ |
| Centralized Backup |
√ |
| USB Backup |
√ |
| VPN Server |
√ |
| Transmission |
√ |
| qBittorent |
√ |
| Aria 2 |
√ |
| Terra Search |
√ |
| Deduplication |
√ |
| Web Server |
√ |
| Clam Antivirus |
√ |
| EMBY |
√ |
| Multi Media Server |
√ |
| Plex Media Server |
√ |
| Docker Manager |
√ |
| Snapshot |
√ |
