TerraMaster F8 SSD, Intel N95 8GB DDR5, 8‑bay NAS
Unmatched All‑SSD Performance in Your Palm: Meet the F8 SSD—the first 8‑bay NAS designed from the ground up for all‑flash storage. Powered by an Intel® N95 4‑core CPU and 8 GB DDR5 memory, it delivers exceptional speed for virtualization, databases, and 4K media workflows, all in a chassis smaller than a paperback book.

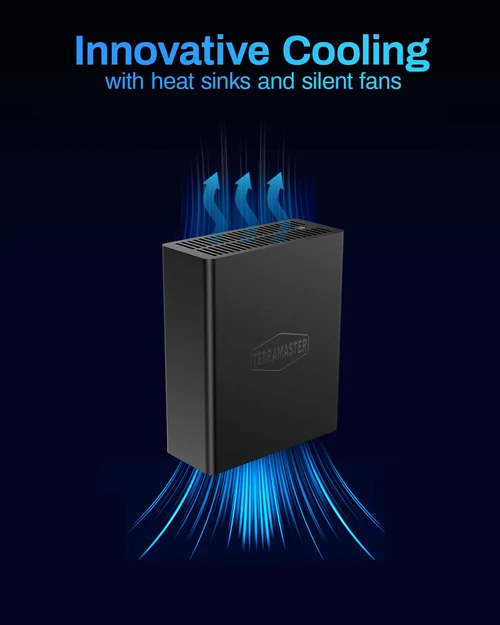

Whisper‑Quiet, Always Cool: With no moving storage drives, the F8 SSD runs virtually silent (<19 dB in standby). Its innovative convection cooling, individual SSD heatsinks, and silent fans keep temperatures low even under full load—perfect for offices, studios, or living spaces.
10GbE Speed, Real‑Time Workflows: A built‑in 10GbE copper port provides sustained transfer speeds up to 1020 MB/s, with 4K random I/O nearing 300 MB/s. Edit 4K projects directly from the NAS, streamline database operations, or expand storage via the USB 3.2 10Gbps port.

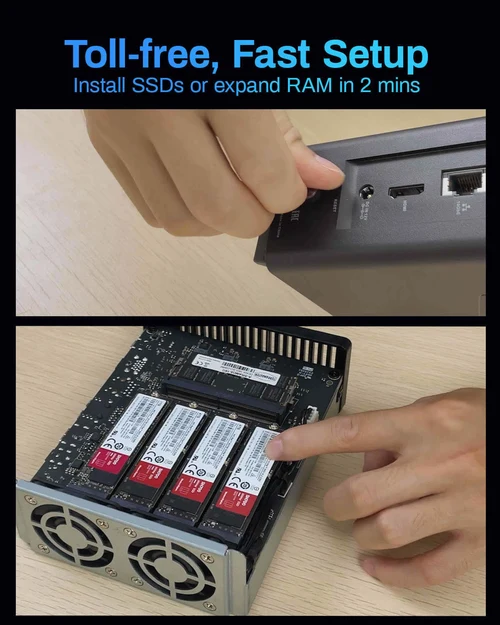

Tool‑Free Setup, Effortless Expansion: Install eight M.2 NVMe SSDs (up to 64 TB) in under two minutes, no tools required. The drawer‑style tray and Push‑Lock design secure drives firmly. Choose from multiple RAID types, including flexible TRAID for automatic capacity expansion.
Designed for Creators and Teams: With 10GbE networking and cross‑platform file support, multiple editors can work simultaneously on 4K footage. After projects wrap, easily offload final files to a TerraMaster DAS (like the D4‑320) to free up space for the next job.
Features:
- Intel N95 processor with Max burst up to 3.4 GHz.
- 8 GB DDR5 non-ECC SODIMM memory, supporting up to 32 GB.
- Maximum internal raw storage capacity of 64 TB (8 TB x8).
- 1 x RJ-45 10GbE Network Jack.
- 3(10Gbps) USB3.2 Host Port.
- 8(PCle 3.0 x1) M.2 2280 NVMe Slots.
- Hardware transcoding supports H.264, H.265, MPEG-4 and VC-1 up to 4K.
- Supports TRAID, TRAID＋, Single, JBOD, RAID 0, RAID 1, RAID5, RAID 6 and RAID 10
Specifications:
| Processor |
|
| Processor Model |
Intel N95 |
| Processor Architecture |
X.86 64-bit |
| Processor Frequency |
Max burst up to 3.4 GHz |
| Hardware Encryption Engine |
√ |
| Hardware Transcoding Engine |
H.264, H.265, MPEG-4, VC-1;maximum resolution: 4K (4096 x 2160);
maximum frame rate per second (FPS): 60
|
| Memory |
|
| System Memory |
8 GB DDR5 non-ECC SODIMM |
| Pre-installed Memory module |
8 GB DDR5 non-ECC SODIMM (1x 8 GB) |
| Total Memory Slot Number |
1 (DDR5 SODIMM) |
| Maximum Supported Memory |
32 GB DDR5 non-ECC SODIMM |
| Maximum Internal Raw Storage Capacity |
64 TB (8 TB x8) (Capacity may vary by RAID types) |
| File System |
|
| Internal Drive |
Btrfs, EXT4 |
| External Drive |
EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS |
| External Ports |
|
| RJ-45 10GbE Network Jack |
1 |
| USB3.2 Host Port |
3(10Gbps) |
| HDMI |
1（HDMI 2.0b) |
| Compatible M.2 SSD Types |
PCle3.0/4.0/5.0 NVMe M.2 2280 SSD |
| M.2 2280 NVMe Slot |
8(PCle 3.0 x1), compatible with Pcle3.0/4.0/5.0 NVMe M.2 2280 SSD |
| Appearance |
|
| Size (H*W*D) |
177 x 60 x 140 mm |
| Packaging Size (H*W*D) |
220 x 195 x 183 mm |
| Weight |
Net Weight: 0.7Kg Gross Weight: 1.7 Kg |
| Others |
|
| System Fan |
50 x 50 x 10mm 2PCS |
| Fan Mode |
Smart, High speed, Middle speed, Low speed |
| Noise Level |
19.0 dB(A) （Using M.2 SSDs in standby mode;
Test environment noise: 17.3dB(A); Test distance: 1m）
|
| Power Supply |
72 W |
| AC Input Voltage |
100V - 240V AC |
| Current Frequency |
50/60 Hz, Single frequency |
| Power Consumption |
45.0 W(Fully loaded Seagate 2TB M.2 SSDs in read/write state) |
| 9.0 W (Fully loaded Seagate 2TB M.2 SSDs in hibernation) |
|
| Certificate |
FCC, CE, CCC, KC |
| Environment |
RoHS, WEEE |
| Temperature |
|
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
