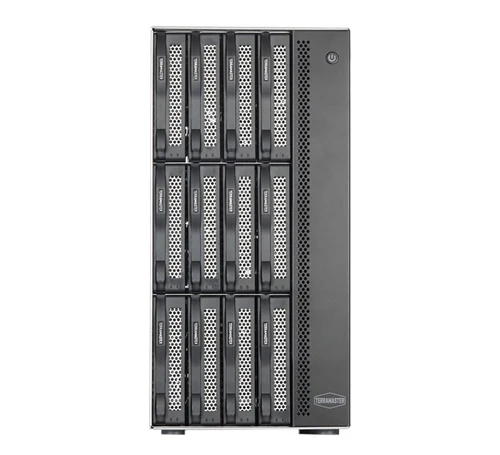

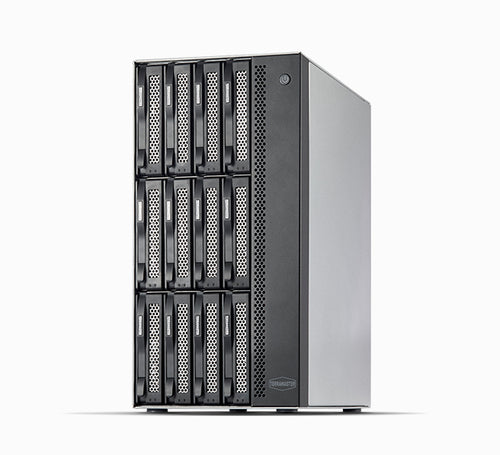

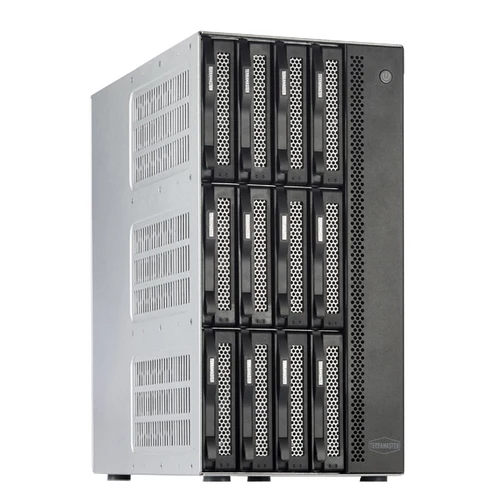

TerraMaster T12-423, Intel Celeron N5095, 8GB 12-Bay NAS
Professional-Grade Storage: The 12-Bay T12-423 NAS storage is suitable for SMB users who need high-performance storage solutions. High performance means that users can easily handle high-load assignments, while multiple business-level backup solutions ensure data safety and prevent the potential risk of data loss.
Powerful Hardware: N5105/5095 Quad-core 2.0GHz CPU, 8GB RAM DDR4 (expandable up to 32GB). Dual 2.5-Gigabit Ethernet ports - Supports up to 5 Gbps under Link Aggregation. 12Bay NAS designed for SMB High Performance Requirements.
Maximum Internal Raw Capacity: 240TB (20 TB drive x 12). Compatible with 3.5" and 2.5" SATA HDD, 2.5" SATA SSD. Supports RAID 0/1/ 5/6/10, Supports online capacity expansion and online migration. The built-in M.2 2280 NVMeSSD slot can realize SSD cache acceleration and increase the storage efficiency of the disk array several times.
Multiple Backup Solutions: CentralizedBackup, DupleBackup, Snapshot, CloudSync, enhance the Safety of your Data with multiple backup applications.
Multiple Backup Solutions: Centralized Backup, Duple Backup, Snapshot, CloudSync, enhance the Safety of your Data with multiple backup applications.
All-in-One Solution: Easily build file storage servers, mail servers, web servers, FTP servers, MySQL databases, CRM systems, Node.js, and Java virtual machines, as well as a host of other commercial applications.
Features:
- Intel® Celeron® N5095 Quad Core 2.0 GHz processor with Max burst up to 2.9 GHz.
- 8 GB DDR4 non-ECC SODIMM system memory, expandable up to 32 GB.
- 12 drive slots supporting 3.5" SATA HDDs.
- Maximum internal raw storage capacity of 240TB (20TB x12).
- 2 x RJ-45 2.5GbE Network Jacks.
- 2 x USB3.1 Host Ports with 10Gbps speed and 1 x HDMI 2.0 port.
- 1 x M.2 2280 NVMe Slot with Btrfs and EXT4 internal drive support.
- Supports hardware transcoding up to 4K (4096 x 2160) at 60 FPS.
Specifications:
| Processor |
|
| Processor Model |
Intel Celeron N5095 |
| Processor Architecture |
X.86 64-bit |
| Processor Frequency |
Quad Core 2.0 GHz (Max burst up to 2.9 GHz) |
| Hardware Encryption Engine |
√ |
| Hardware Transcoding Engine |
H.264, H.265, MPEG-4, VC-1;maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60 |
| Memory |
|
| System Memory |
8 GB DDR4 non-ECC SODIMM |
| Pre-installed Memory module |
8 GB DDR4 non-ECC SODIMM (1x 8GB) |
| Total Memory Slot Number |
2 (DDR4 SODIMM) |
| Maximum Supported Memory |
32 GB (16 GB+16 GB) DDR4 non-ECC SODIMM |
| Storage |
|
| Disk Slot Number |
12 |
| Compatible Drive types |
3.5" SATA HDD, 2.5" SATA HDD
2.5" SATA SSD |
| Maximum Internal Raw Storage Capacity |
240TB (20TB x12) (Capacity may vary by RAID types) |
| Drive Hot Swap |
√ |
| File System |
|
| Internal Drive |
Btrfs, EXT4 |
| External Drive |
EXT3, EXT4, NTFS, FAT32, HFS+ |

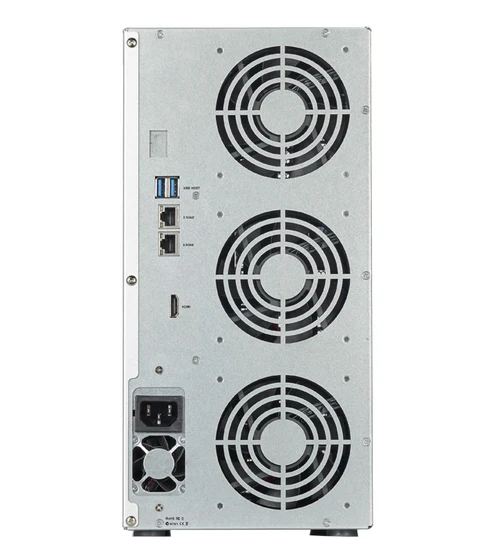

| External Ports |
|
| RJ-45 2.5GbE Network Jack |
2 |
| USB3.1 Host Port |
2(10Gbps) |
| HDMI |
1(HDMI 2.0) |
| M.2 2280 NVMe Slot |
1 |
| Appearance |
|
| Size (HWD) |
334 x 163x 295 mm |
| Packaging Size (HWD) |
437 x 235 x 370 mm |
| Weight |
10.3 kg |
| Others |
|
| System Fan |
92 x 92 x 25mm 3PCS |
| Fan Mode |
Smart, High speed, Middle speed, Low speed |
| Noise Level |
31.4 dB(A) (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in idle state) |
| Power Supply |
500 W |
| AC Input Voltage |
100V - 240V AC |
| Current Frequency |
50/60 Hz, Single frequency |
| Power Consumption |
94W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state)
32 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation)
|
| Certificate |
FCC, CE, CCC, KC |
| Environment |
RoHS, WEEE |
| Temperature |
|
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
