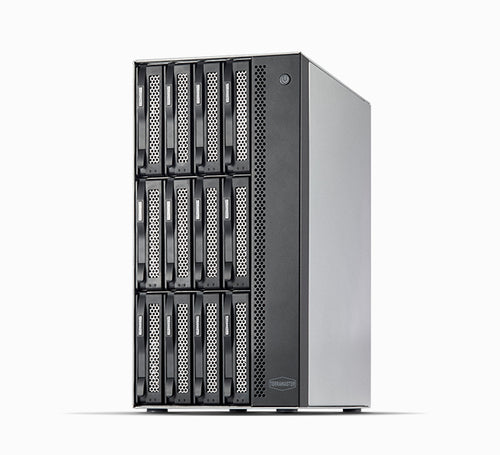

TerraMaster T12-450 Intel Atom C3558R, 8GB 12-bay NAS

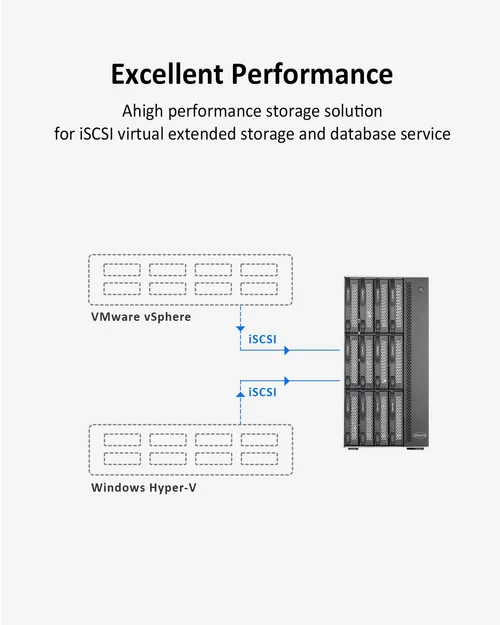

Powerful Hardware: Featuring an Intel Atom C3558R quad-core CPU, 8GB DDR4 RAM (expandable to 32GB), and dual SFP+ 10GbE plus dual 2.5GbE ports for aggregated bandwidth up to 20Gbps. With two built-in M.2 NVMe SSD slots for cache acceleration, this 12-bay NAS delivers the performance required for 4K editing, virtualization, and database applications.
High-speed 10Gb Network Sharing: The T12-450 NAS supports 10Gb network connectivity, allowing multiple Windows and Mac workstations to connect and collaborate simultaneously. This enables seamless, real-time editing of multi-track 4K footage, special effects work, video compositing, and clip handling in popular software including Edius, Adobe Premiere Pro, and DaVinci Resolve.

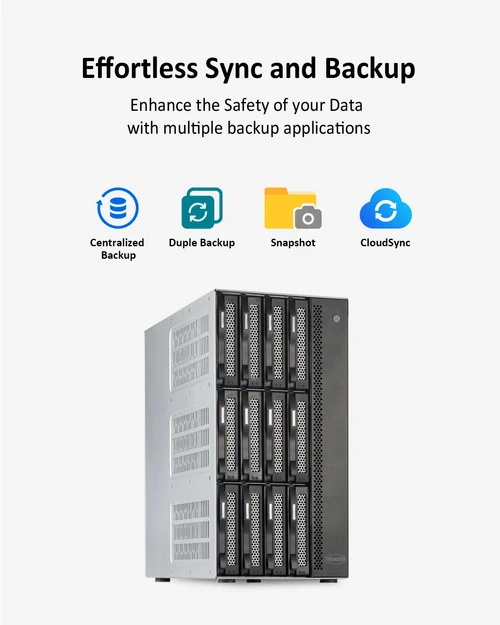

Multiple Backup Solutions: The T12-450 provides robust data protection through multiple applications including Centralized Backup, Duple Backup, Snapshot, and CloudSync, ensuring your data remains secure and consistently available.

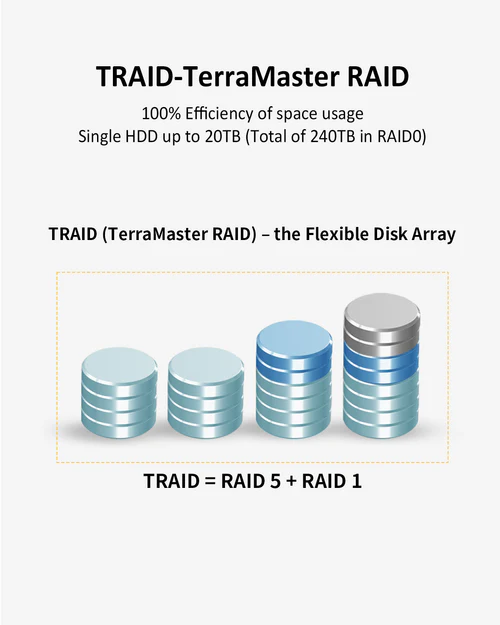

Reliable Data Protection and Restoration: The T12-450 NAS safeguards your data with TRAID support to prevent loss from drive failure. It enables scheduled storage snapshots for quick recovery to any previous point in time. Additionally, the TerraMaster one-click Security Isolation Mode offers immediate protection against viruses and ransomware attacks.

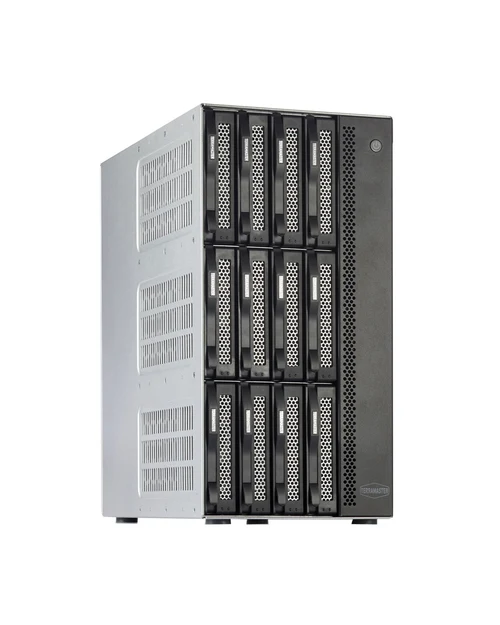

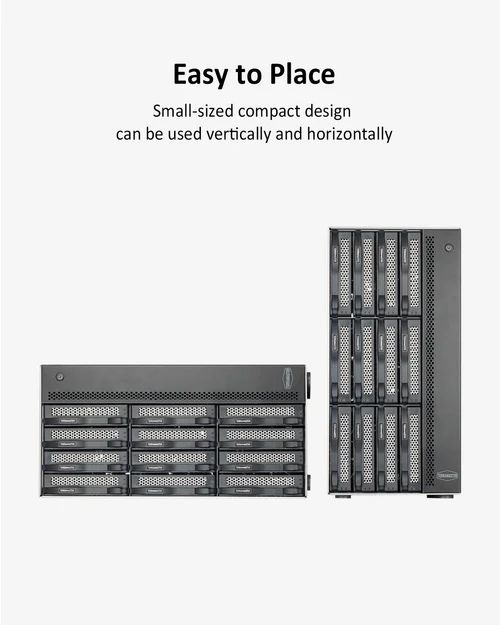

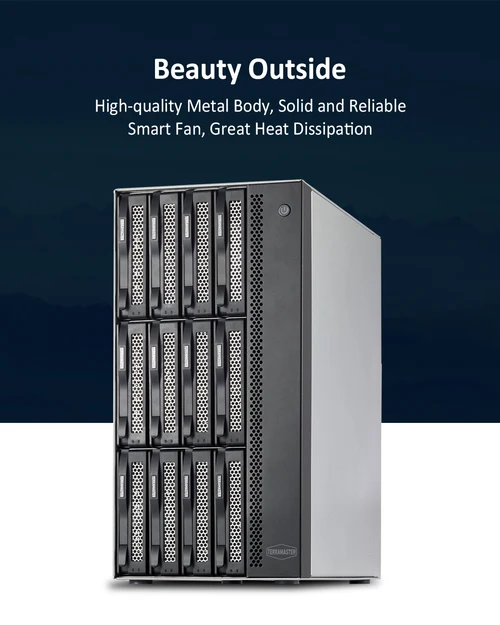

Compact Design: Features a small, space-saving design that can be used vertically or horizontally. The T12-450 NAS storage has a metal shell and intelligent temperature control ultra-quiet fan, which helps with heat dissipation and keeps the system very quiet.
Features:
- Intel Atom® C3558R Quad Core 2.4 GHz processor.
- 8 GB DDR4 non-ECC SODIMM system memory, expandable up to 32 GB.

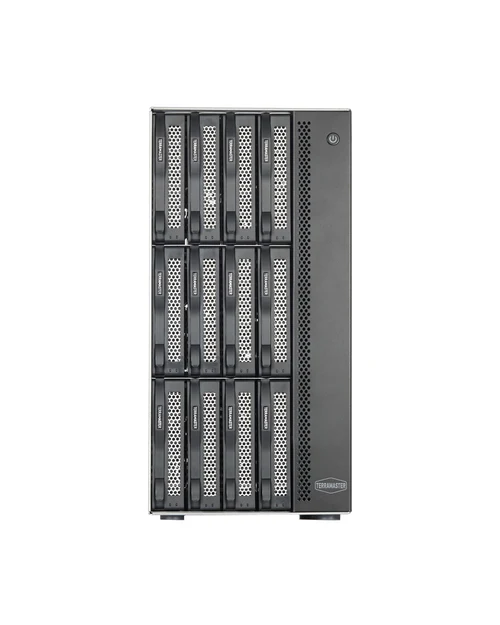

- 12 drive slots supporting 3.5" SATA HDDs.
- Maximum internal raw storage capacity of 240TB (20TB x12).

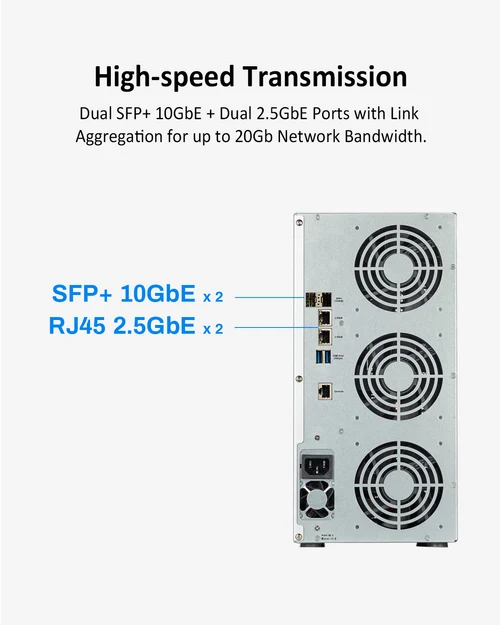

- 2 x RJ-45 2.5GbE Network Jacks and 2 x SFP+ 10GbE Network Jacks.
- 2 x USB3.1 Host Ports with 5Gbps speed and 1 x Console Port.
- 2 x M.2 2280 NVMe Slots and support for Btrfs and EXT4 internal drives.
- 500 W power supply with 100V - 240V AC input voltage.
Specifications:
| Processor |
|
| Processor Model |
Intel Atom® C3558R |
| Processor Architecture |
X.86 64-bit |
| Processor Frequency |
Quad Core 2.4 GHz |
| Hardware Encryption Engine |
√ |
| Memory |
|
| System Memory |
8 GB DDR4 non-ECC SODIMM |
| Pre-installed Memory module |
8 GB DDR4 non-ECC SODIMM (1x 8GB) |
| Total Memory Slot Number |
2 (DDR4 SODIMM) |
| Maximum Supported Memory |
32 GB (16 GB+16 GB) DDR4 non-ECC SODIMM |
| Storage |
|
| Disk Slot Number |
12 |
| Compatible Drive types |
3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
|
| Maximum Internal Raw Storage Capacity |
240TB (20TB x12) (Capacity may vary by RAID types) |
| Drive Hot Swap |
√ |
| File System |
|
| Internal Drive |
Btrfs, EXT4 |
| External Drive |
EXT3, EXT4, NTFS, FAT32, HFS+ |
| External Ports |
|
| RJ-45 2.5GbE Network Jack |
2 |
| SFP+ 10GbE Network Jack |
2 |
| USB3.1 Host Port |
2(5Gbps) |
| Console Port |
1 |
| M.2 2280 NVMe Slot |
2 |
| Appearance |
|
| Size |
334 x 163x 295 mm |
| Packaging Size (HWD) |
437 x 235 x370 mm |
| Weight |
10.3 kg |
| Others |
|
| System Fan |
92 x 92 x 25mm 3PCS |
| Fan Mode |
Smart, High speed, Middle speed, Low speed |
| Noise Level |
31.4 dB(A) (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in idle state) |
| Power Supply |
500 W |
| Redundancy Power Supply |
/ |
| AC Input Voltage |
100V - 240V AC |
| Current Frequency |
50/60 Hz, Single frequency |
| Certificate |
FCC, CE, CCC, KC |
| Environment |
RoHS, WEEE |
| Temperature |
|
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
