| Processor Model |
Intel Core i7-1255U |
| Processor Architecture |
X.86 64-bit |
| Processor Frequency |
10-Core (Max burst up to 4.7 GHz) |
| CPU Single-Core Score |
/ |
| Hardware Transcoding Engine |
H.264, H.265, MPEG-4, VC-1;maximum resolution:
4K (4096 x 2160); maximum frame rate per second (FPS): 60
|
| Hardware Encryption Engine |
√ |
| Memory |
|
| System Memory |
16 GB DDR5 non-ECC SODIMM |
| Pre-installed Memory Module |
16 GB DDR5 non-ECC SODIMM (1x 16 GB) |
| Total Memory Slot Number |
2 (DDR5 SODIMM) |

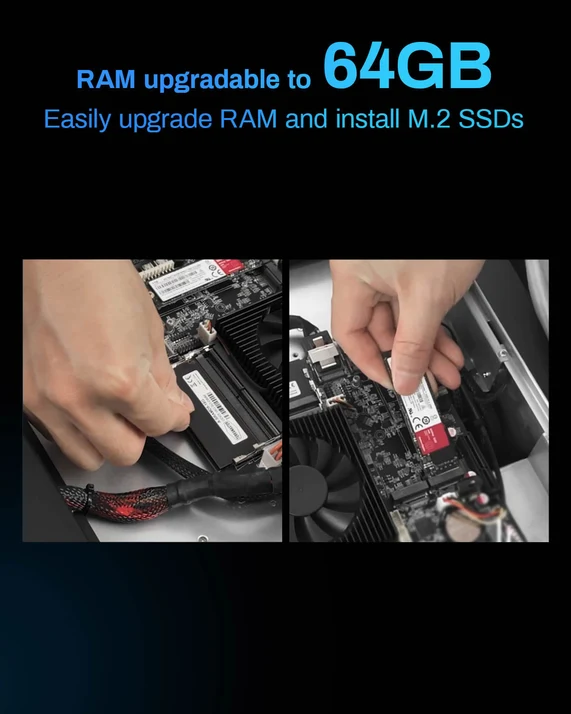

| Maximum Supported Memory |
64 GB DDR5 non-ECC SODIMM |
| Storage |
|
| Disk Slot Number |
12 |
| Compatible Drive types |
3.5" SATA HDD |
| 2.5" SATA HDD |
|
| 2.5" SATA SSD |
|
| Maximum Internal Raw Storage Capacity |
264 TB (22 TB x 12) (Capacity may vary by RAID types) |
| Drive Hot Swap |
√ |
| File System |
|
| Internal Drive |
Btrfs, EXT4 |
| External Drive |
EXT3, EXT4, NTFS, FAT32, HFS+, BTRFS |
| External Ports |
|

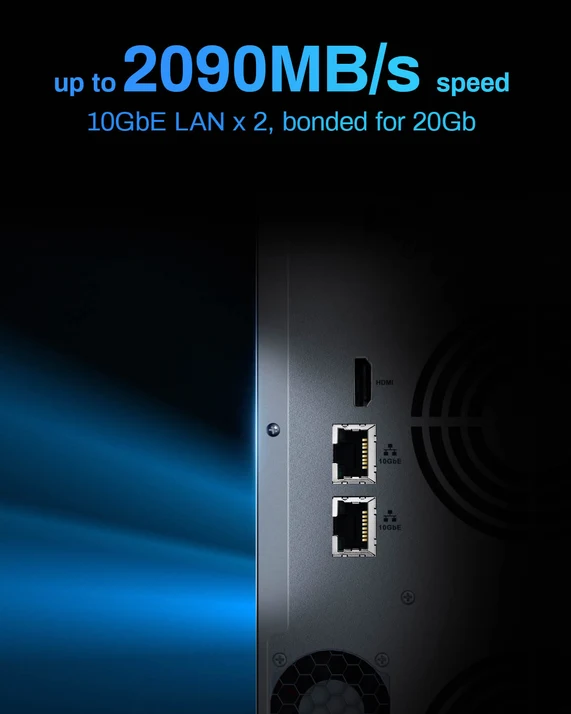

| RJ-45 10GbE Network Jack |
2 |
| USB3.2 Host Port |
Type A *3 (10Gbps) ; Type C *1 (10Gbps) |
| HDMI |
1(HDMI 2.0) |
| M.2 2280 NVMe Slot |
2 (PCIe 4.0 x4） |
| Appearance |
|
| Size (HWD) |
334 x 163 x 295 mm |
| Packaging Size (HWD) |
437 x 235 x 370 mm |
| Weight |
Net Weight: 7.9 Kg Gross Weight: 10.0 Kg |
| Others |
|

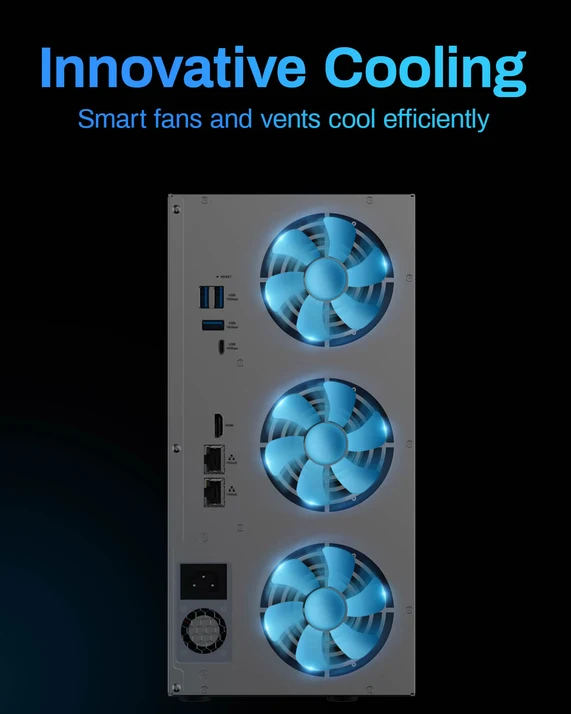

| System Fan |
92 x 92 x 25mm 3PCS |
| Fan Mode |
Smart, High speed, Middle speed, Low speed |
| Noise Level |
24.5 dB(A) （Using M.2 SSDs in standby mode;
Test environment noise: 17.3dB(A); Test distance: 1m）
|
| Power Supply |
550 W |
| Redundancy Power Supply |
Optional |
| AC Input Voltage |
100V - 240V AC |
| Certificate |
FCC, CE, CCC, KC |
| Environment |
RoHS, WEEE |
| Temperature |
|
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
| OS Supported |
|
| Supported Client OS |
Windows OS, Mac OS, Linux OS |
| Supported Web Browsers |
Google Chrome 97.0.xxxx, Mozilla Firefox 9.3, Apple Safari 12.1 ; Microsoft Edge 99.0.xx or later version. |
| Supported mobile OS |
iOS14.0, Android 10.0 or later version |
| Storage Management |
|
| Supported RAID Types |
TRAID, TRAID+, Single, JBOD, RAID 0, RAID 1, RAID5, RAID 6, RAID 10 |
| Maximum Internal Volume Number |
256 |
| Maximum iSCSI Target |
128 |
| Maximum iSCSI LUN |
256 |
| Volume Expansion with Larger HDDs |
TRAID, TRAID+, RAID5, RAID 6, RAID 10 |
| Volume Expansion by Adding a HDD |
/ |
| RAID Migration |
√ |
| File Services |
|
| File Protocol |
SMB/AFP/NFS/FTP/SFTP/WebDAV |
| Maximum Concurrent SMB/AFP/FTP/SFTP Connections |
512 |
| Account & Shared Folder |
|
| Maximum local user's account number |
2048 |
| Maximum local group number |
512 |
| Maximum shared folders number |
512 |
| Maximum shared folders syncing tasks |
8 |
| Networking |
|
| TCP/IP |
IPv4/IPv6 |
| Protocols |
CIFS/SMB, NFS, FTP, SFTP, HTTPS, SSH, iSCSI, SNMP |
