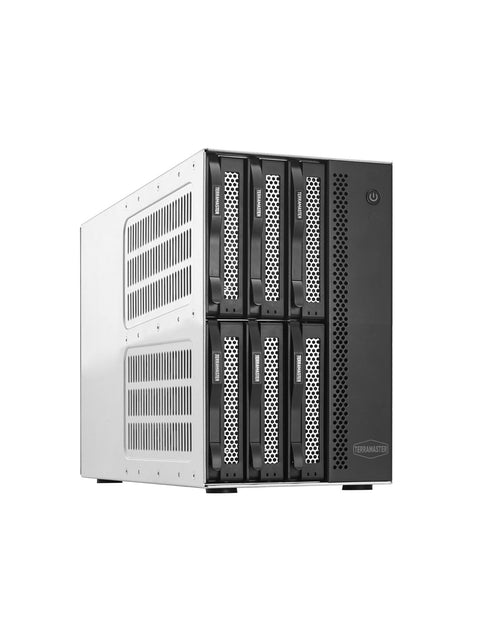

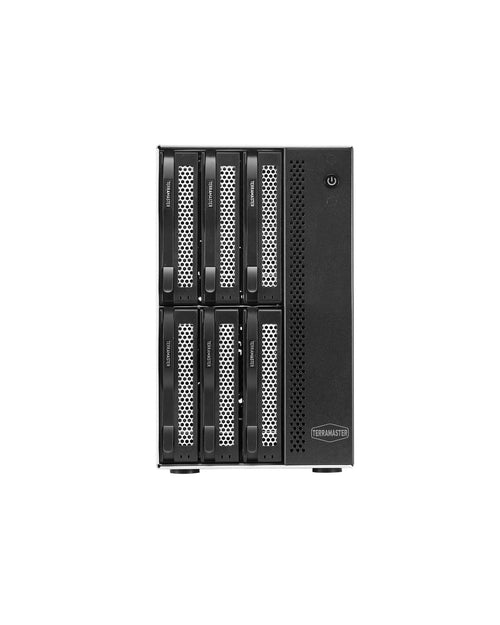

TerraMaster T6-423, Intel Celeron N5095 4GB Dual 2.5GbE ports 6-bay NAS
Perfect For SMBs: The T6-423 NAS storage is suitable for SMB users who need high-performance storage solutions. High performance means that users can easily handle high-load assignments, while multiple business-level backup solutions ensure data safety and prevent the potential risk of data loss.
Powerful Hardware: the T6-423 NAS storage is equipped with 5095 Quad-core 2.0GHz CPU, 4GB RAM DDR4 (expandable up to 32GB). With dual 2.5-Gigabit Ethernet ports, the NAS server supports up to 5 Gbps under Link Aggregation. A powerful 6 bay NAS designed for SMB High Performance Requirements.
Maximum Internal Raw Capacity: 120TB (20 TB drive x 6). The network attached storage is compatible with 3.5" and 2.5" SATA HDD, 2.5" SATA SSD. Supports RAID 0/1/5/6/10; Supports online capacity expansion and online migration. The built-in M.2 2280 NVMe SSD slot can realize SSD cache acceleration and increase the storage efficiency of the disk array several times.
Multiple Backup Solutions: utilize Centralized Backup, Duple Backup, Snapshot, CloudSync that are available in the NAS enclosure to enhance the safety of your data.
All-in-One Solution: Easily build file storage servers, mail servers, web servers, FTP servers, MySQL databases, CRM systems, Node.js, and Java virtual machines, as well as a host of other commercial applications.
Features:
- Intel® Celeron® N5095 Quad Core processor with up to 2.9 GHz Max burst frequency.
- 4 GB DDR4 non-ECC SODIMM system memory, expandable up to 32 GB.
- 6 drive slots supporting 3.5" SATA HDD.
- Up to 120TB maximum internal raw storage capacity with 20TB x6 drives.
- Drive hot swap support for convenient storage management.

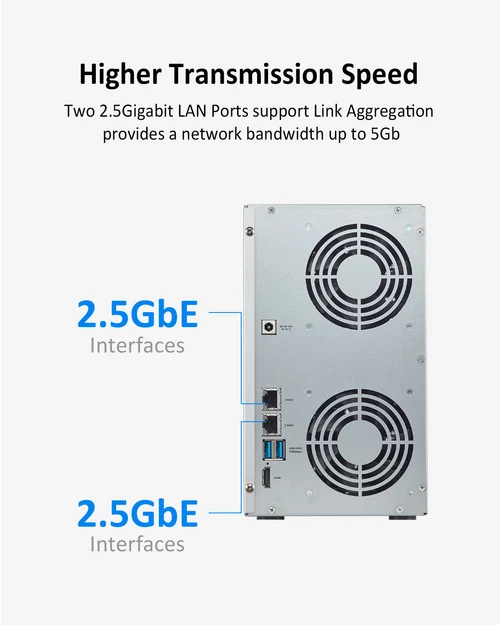

- Dual RJ-45 2.5GbE network jacks for high-speed network connectivity.
- 2 USB3.1 Host Ports with 10Gbps speed.
- 1 HDMI 2.0 port with hardware transcoding up to 4K at 60 FPS.
- 2 M.2 2280 NVMe Slots for storage expansion.
- 22.3 dB(A) noise level with fully loaded drives in idle state.
Specifications:
| Processor |
|
| Processor Model |
Intel® Celeron® N5095 |
| Processor Architecture |
X.86 64-bit |
| Processor Frequency |
Quad Core 2.0 GHz (Max burst up to 2.9 GHz) |
| Hardware Encryption Engine |
√ |
| Hardware Transcoding Engine |
H.264, H.265, MPEG-4, VC-1;maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60 |
| Memory |
|
| System Memory |
4 GB DDR4 non-ECC SODIMM |
| Pre-installed Memory module |
4 GB DDR4 non-ECC SODIMM (1x 4GB) |
| Total Memory Slot Number |
2 (DDR4 SODIMM) |
| Maximum Supported Memory |
32 GB (16 GB+16 GB) DDR4 non-ECC SODIMM |
| Storage |
|
| Disk Slot Number |
6 |
| Compatible Drive types |
3.5" SATA HDD |
| 2.5" SATA HDD |
YES |
| 2.5" SATA SSD |
YES |
| Maximum Internal Raw Storage Capacity |
120TB (20TB x6) (Capacity may vary by RAID types) |
| Drive Hot Swap |
√ |
| File System |
|
| Internal Drive |
Btrfs, EXT4 |
| External Drive |
EXT3, EXT4, NTFS, FAT32, HFS+ |
| External Ports |
|
| RJ-45 2.5GbE Network Jack |
2 |
| USB3.1 Host Port |
2(10Gbps) |
| HDMI |
1(HDMI 2.0) |
| M.2 2280 NVMe Slot |
2 |
| Appearance |
|
| Size (H*W*D) |
226 x 130 x 218 mm |
| Packaging Size (H*W*D) |
312 x 189 x 267 mm |
| Weight |
3.9 kg |
| Others |
|
| System Fan |
80 x 80 x 25mm 2PCS |
| Fan Mode |
Smart, High speed, Middle speed, Low speed |
| Noise Level |
22.3 dB(A) (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in idle state) |
| Power Supply |
120W |
| AC Input Voltage |
100V - 240V AC |
| Current Frequency |
50/60 Hz, Single frequency |
| Power Consumption |
39.2W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state)
16.0 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation)
|
| Certificate |
FCC, CE, CCC, KC |
| Environment |
RoHS, WEEE |
| Temperature |
|
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
