Product Code: NAHO-304
MPN #: T9-423

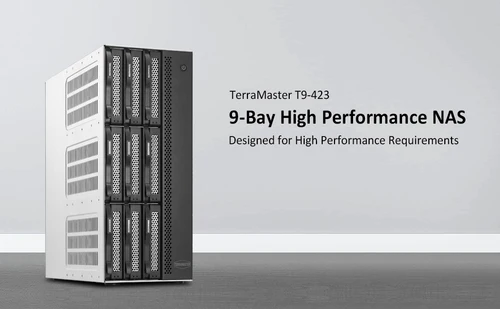

Designed for SMB: The 9-Bay T9-423 NAS storage is suitable for SMB users who need high-performance storage solutions. High performance means that users can easily handle high-load assignments, while multiple business-level backup solutions ensure data safety and prevent the potential risk of data loss.
Powerful Hardware: The T9-423 NAS storage is equipped with N5105/5095 Quad-core 2.0GHz CPU, 8GB RAM DDR4 (expandable up to 32GB). With dual 2.5-Gigabit Ethernet ports, the NAS server supports up to 5 Gbps under Link Aggregation. A powerful 9 Bay NAS designed for SMB High Performance Requirements.
Maximum Internal Raw Capacity: 180TB (20 TB drive x 9). The network attached storage is compatible with 3.5" and 2.5" SATA HDD, 2.5" SATA SSD. Supports RAID 0/1/ 5/6/10, Supports online capacity expansion and online migration. The built-in M.2 2280 NVMe SSD slot can realize SSD cache acceleration and increase the storage efficiency of the disk array several times.

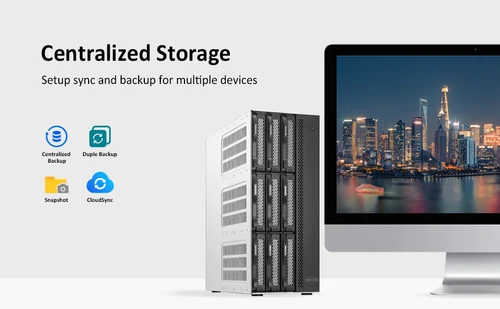

Multiple Backup Solutions: Centralized Backup, Duple Backup, Snapshot, CloudSync, enhance the Safety of your Data with multiple backup applications.
All-in-One Solution: Easily build file storage servers, mail servers, web servers, FTP servers, MySQL databases, CRM systems, Node.js, and Java virtual machines, as well as a host of other commercial applications.
| Processor | |
| Processor Model | Intel® Celeron® N5095 |
| Processor Architecture | X.86 64-bit |
| Processor Frequency | Quad Core 2.0 GHz (Max burst up to 2.9 GHz) |
| Hardware Transcoding Engine |
H.264, H.265, MPEG-4, VC-1;maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60 |
| Memory | |
| System Memory | 8 GB DDR4 non-ECC SODIMM |
| Pre-installed Memory module | 8 GB DDR4 non-ECC SODIMM (1x 8GB) |
| Total Memory Slot Number | 2 (DDR4 SODIMM) |
| Maximum Supported Memory | 32 GB (16 GB+16 GB) DDR4 non-ECC SODIMM |
| Storage | |
| Disk Slot Number | 9 |
| Compatible Drive types | 3.5" SATA HDD |
| 2.5" SATA HDD | Yes |
| 2.5" SATA SSD | Yes |
| Maximum Internal Raw Storage Capacity | 180TB (20TB x9) (Capacity may vary by RAID types) |
| Drive Hot Swap | √ |
| File System | |
| Internal Drive | Btrfs, EXT4 |
| External Drive | EXT3, EXT4, NTFS, FAT32, HFS+ |
| External Ports | |
| RJ-45 2.5GbE Network Jack | 2 |
| USB3.1 Host Port | 2(10Gbps) |
| HDMI | 1(HDMI 2.0) |
| M.2 2280 NVMe Slot | 1 |
| Appearance | Appearance |
| Size (H*W*D) | 334 x 135 x 295 mm |
| Packaging Size (H*W*D) | 467 x 225 x 390 mm |
| Weight | 8.9 kg |
| Others | Others |
| System Fan | 80 x 80 x 25 mm 3PCS |
| Fan Mode | Smart, High speed, Middle speed, Low speed |
| Noise Level | 31.2 dB(A) (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in idle state) |
| Power Supply | 250 W |
| AC Input Voltage | 100V - 240V AC |
| Current Frequency | 50/60 Hz, Single frequency |
| Power Consumption |
72W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state) 29 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation) |
| Certificate | FCC, CE, CCC, KC |
| Environment | RoHS, WEEE |
| Temperature | |
| Working Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
