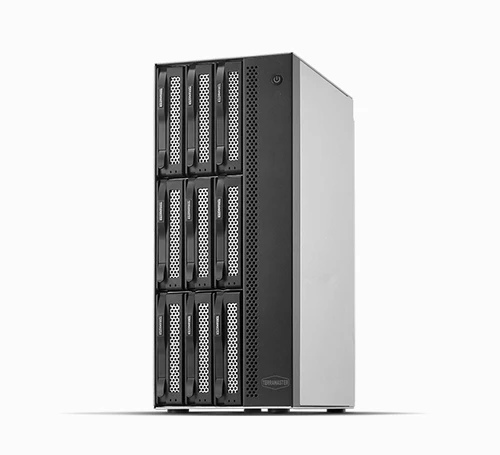

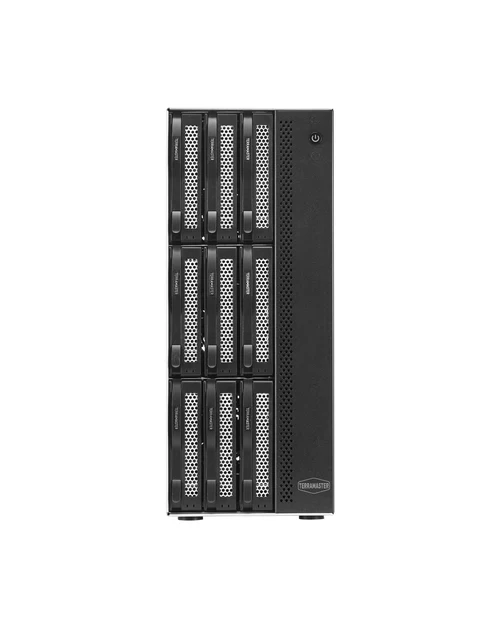

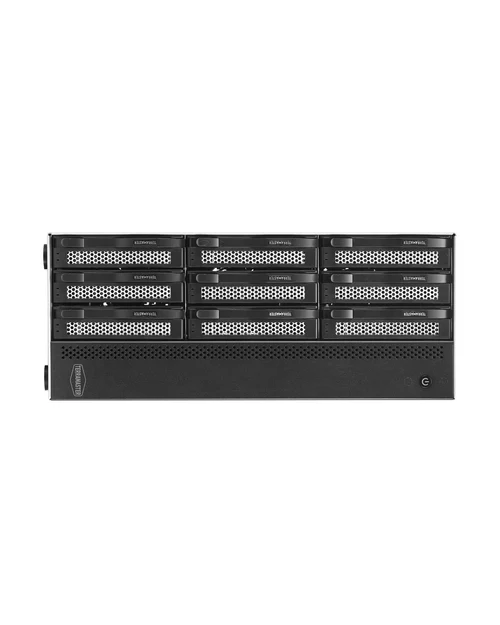

TerraMaster T9-450 Intel Atom C3558R, 8GB Dual 2.5GbE Ports 9-Bay NAS
Powerful Performance: Powered by an Intel quad-core processor, 8GB expandable RAM, and dual M.2 NVMe slots with exclusive Hyper Cache technology, the T9-450 handles 4K editing, virtualization, and large databases with ease. Dual 10GbE and dual 2.5GbE ports support Link Aggregation for up to 20Gbps of bandwidth.
Massive 180TB Capacity: Centralize and secure all your projects and files with up to 180TB (9x20TB) of raw storage. The intelligent TRAID technology automatically manages storage pools, redundancy, and expansion, making professional storage simple.
Seamless Team Collaboration: Enable real-time workflows. Multiple Windows and Mac workstations can connect simultaneously over 10GbE for smooth, collaborative editing of shared 4K footage and projects, significantly boosting team productivity.
Comprehensive Data Protection: The TOS 7 operating system provides multi-layered security. Features like TerraMaster File System Snapshots (TFSS) allow instant recovery from ransomware or accidental deletion. A full suite of backup tools (including Time Machine, Duple Backup, and CloudSync) ensures your data is protected locally and remotely.
Enterprise Management & Support: Simplify IT administration with AD/LDAP integration for centralized user control and a built-in VPN server for secure remote access. Its compact design fits various office environments.
Features:
- Intel Atom® C3558R Quad Core 2.4 GHz processor
- 8 GB DDR4 non-ECC SODIMM system memory
- Supports up to 32 GB DDR4 non-ECC SODIMM
- 9 drive slots with up to 180 TB internal raw storage capacity
- 2 x RJ-45 2.5GbE Network Jacks
- 2 x SFP+ 10GbE Network Jacks
- 2 x M.2 2280 NVMe Slots
- Supports drive hot swap with 250 W power supply
Specifications:
| Processor |
|
| Processor Model |
Intel Atom® C3558R |
| Processor Architecture |
X.86 64-bit |
| Processor Frequency |
Quad Core 2.4 GHz |
| Hardware Encryption Engine |
√ |
| Memory |
|
| System Memory |
8 GB DDR4 non-ECC SODIMM |
| Pre-installed Memory module |
8 GB DDR4 non-ECC SODIMM (1x 8GB) |
| Total Memory Slot Number |
2 (DDR4 SODIMM) |
| Maximum Supported Memory |
32 GB (16 GB+16 GB) DDR4 non-ECC SODIMM |
| Storage |
|
| Disk Slot Number |
9 |
| Compatible Drive types |
3.5" SATA HDD |
| 2.5" SATA HDD |
|
| 2.5" SATA SSD |
|
| Maximum Internal Raw Storage Capacity |
180 TB (20TB x9) (Capacity may vary by RAID types) |
| Drive Hot Swap |
√ |
| File System |
|
| Internal Drive |
Btrfs, EXT4 |
| External Drive |
EXT3, EXT4, NTFS, FAT32, HFS+ |
| External Ports |
|
| RJ-45 2.5GbE Network Jack |
2 |
| SFP+ 10GbE Network Jack |
2 |
| USB3.1 Host Port |
2(5Gbps) |
| Console Port |
1 |
| M.2 2280 NVMe Slot |
2 |
| Appearance |
|
| Size (H*W*D) |
334 x 135 x 295 mm |
| Packaging Size (H*W*D) |
437*235*370 mm |
| Weight |
9.0 kg |
| Others |
|
| System Fan |
80 x 80 x 25mm 3PCS |
| Fan Mode |
Smart, High speed, Middle speed, Low speed |
| Noise Level |
31.2 dB(A) (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in idle state) |
| Power Supply |
250 W |
| Redundancy Power Supply |
/ |
| AC Input Voltage |
100V - 240V AC |
| Current Frequency |
50/60 Hz, Single frequency |
| Power Consumption |
73 W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state) |
| 30 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation) |
|
| Certificate |
FCC, CE, CCC, KC |
| Environment |
RoHS, WEEE |
| Temperature |
|
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
