TerraMaster TD2 Thunderbolt 3, 2-bay 40Gbps Professional-Grade RAID
Portable design for professionals especially those with strict speed and safety requirements, including 4K video editing. Starting from March 26th, 2021, Mac with M1 security chip was fully supported.Two 40Gbps Thunderbolt 3 interfaces, reading speeds up to 760MB/s (with SSHD in RAID 0). Compatible with 3.5" and 2.5" SATA HDD, 2.5" SATA SSD.

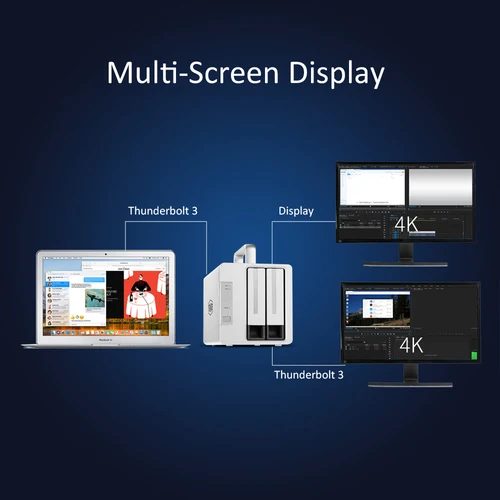

Hardware RAID: RAID0, RAID1, JBOD, SINGLE; Support up to 40TB storage capacity (20TB x 2, in RAID 0); Daisy-chain up to 6 devices;Capitalising on the Thunderbolt 3 and DP interfaces, the TD2 Thunderbolt 3 supports multi-screen display with up to 3 screens.Power delivery provides up to 15W of power to recharge compatible laptops (Mac only, Windows not supported). Aluminum-alloy shell, 80mm fan ensures great heat dispersion.
Features:
- 2 disk slots supporting 3.5" SATA HDD, 2.5" SATA HDD and 2.5" SATA SSD
- Up to 36TB maximum internal raw capacity
- Supports SINGLE DISK, JBOD, RAID 0 and RAID 1
- 40Gb Thunderbolt 3 x 2
- DP 1.4 x 1 interface
- Hardware RAID supported
- RAID auto-rebuilding and drive hot swap supported
- Up to 810MB/sec read speed with SSD under RAID 0
- Up to 806MB/sec write speed with SSD under RAID 0
- Supports Windows OS, Mac OS and Linux
Specifications:
| Storage |
|
| Disk Slot Number |
2 |
| Compatible Disk Types |
3.5" SATA HDD |
| |
2.5" SATA HDD |
| |
2.5" SATA SSD |
| File System |
NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity |
36TB (18 TB drive x 2) (Capacity will vary along with the RAID type) |
| RAIDs Supported |
SINGLE DISK,JBOD,RAID 0,RAID 1 |
| Hardware RAID |
√ |
| RAID Auto-rebuilding |
√ |
| Drive Hot Swap |
√ |
| HDD Sleep |
√ |
| External Ports |
|
| USB |
/ |
| Thunderbolt |
40Gb Thunderbolt 3 x 2 |
| DP Interface |
DP 1.4 x 1 |
| Power Socket |
DC IN 12V |
| Reading/writing Speed (max.) |
|
| Reading Speed (max.) |
Read: 810MB /sec , (Use SSD under RAID 0 mode) |
| Read: 521MB /sec , (Use HDD under RAID 0 mode) |
| Writing Speed (max.) |
Write: 806MB /sec, (Use SSD under RAID 0 mode) |
| Write: 506MB /sec, (Use HDD under RAID 0 mode) |
| Appearance |
|
| Size (H*W*D) |
227 x 119 x 173 mm |
| Packaging Size (H*W*D) |
258*220*200 mm |
| Weight |
Net Weight: 1.4Kg Gross Weight: 2.2Kg |
| Others |
|
| System fan |
80 mm x 80 mm x25mm (x 1) |
| Fan mode |
Smart |
| Noise Level |
18.6dB(A) |
| Power Supply |
|
| Power Supply |
90W |
| AC Input Voltage |
100V - 240V AC |
| Current Frequency |
50/60 Hz, single frequency |
| Power Consumption |
65.6W |
| Environment Temperature |
|
| Working Temperature |
5°C ~ 40°C (40°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
| Supported OS |
Windows OS、Mac OS、Linux |
| Certificate |
CE, FCC, CCC, KC |
| Environment |
RoHS compliance |
| Package Contents: |
Host unit (x1) |
| |
Power cord (x1) |
| |
Thunderbolt 3 cable (40Gbps) 0.8 Meter (x1) |
| |
Quick Installation Guide (x1) |
| |
Power adapter (x1) |
| |
Screws (several) |
| |
Limited Warranty Note x 1 |
