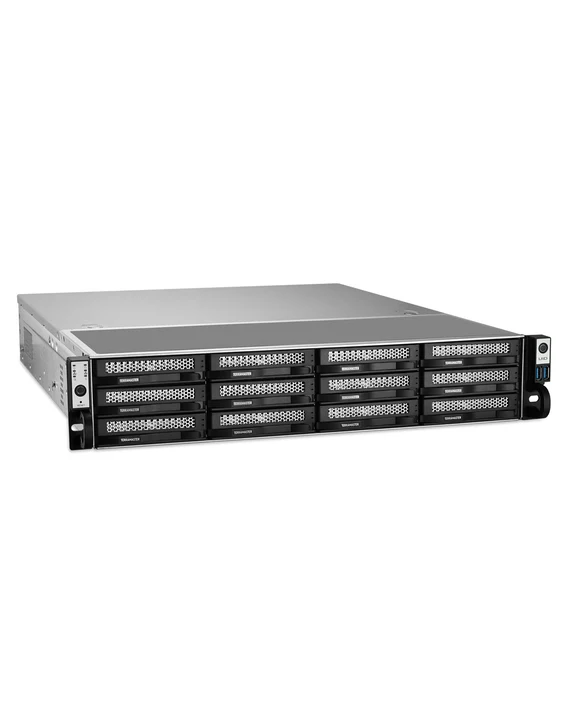

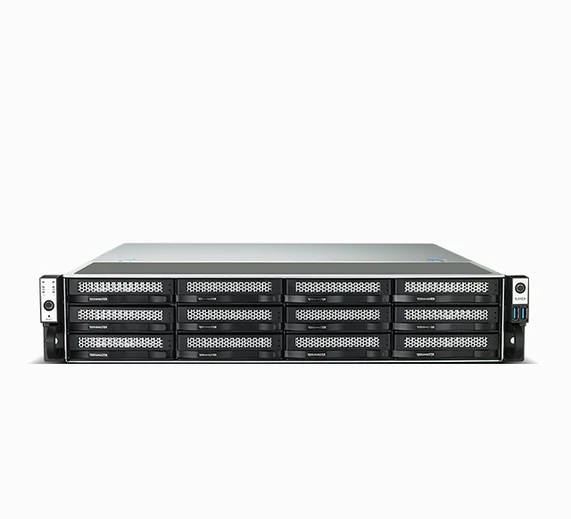

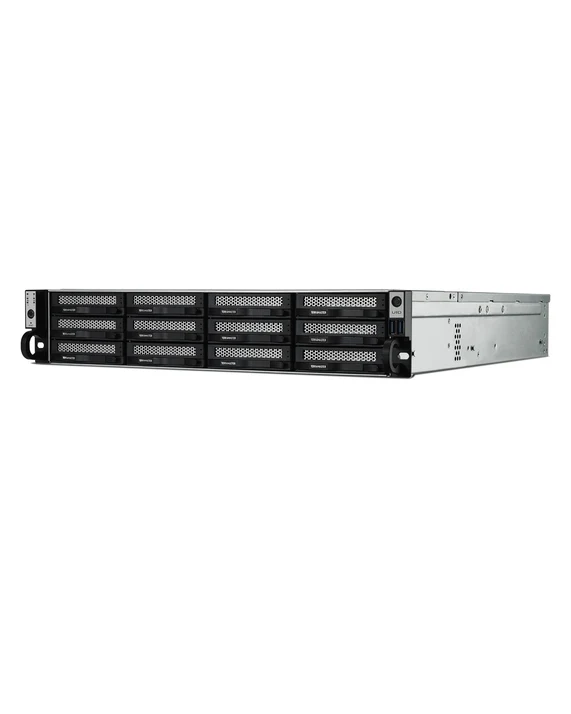

Flexible Storage Solutions: The U12-500 Plus NAS enclosure supports various RAID configurations, including Single, RAID 0, 1, 5, 6, and 10. The U12-500 Plus 12-bay NAS in 2U rack mount can accommodate up to 12 3.5" SATA HDDs, 2.5" SATA HDDs, and 2.5" SATA SSDs, offering a remarkable maximum storage capacity of up to 288TB (using 24TB HDDs as an example). It features TerraMaster’s TRAID/TRAID+ for online capacity expansion, migration, and redundant disk setups. Users can select between ext4 and Btrfs file systems, and expand storage effortlessly with the TerraMaster USB DAS disk array.
Features:
- Intel Core i7-1255U 10-Core processor with Max burst up to 4.7 GHz.
- 16 GB DDR5 non-ECC SODIMM memory, expandable up to 64 GB.
- 12 drive slots supporting 3.5" SATA HDD, 2.5" SATA HDD, and 2.5" SATA SSD.
- Up to 288 TB maximum internal raw storage capacity.
- Dual RJ-45 10GbE network jacks for high-speed network connectivity.
- 3 USB3.2 Type A and 1 USB3.2 Type C Host Port with 10Gbps speed.
- 2 M.2 2280 NVMe Slots supporting PCIe 4.0 x4.
- 1 PCIe 3.0 x2 slot for expansion.
- Supports TRAID, TRAID+, RAID 0, RAID 1, RAID5, RAID 6, and RAID 10.
- Supports SMB/AFP/NFS/FTP/SFTP/WebDAV file protocols with up to 512 concurrent connections.
Specifications:
| Processor |
|
| Processor Model |
Intel Core i7-1255U |
| Processor Architecture |
X.86 64-bit |
| Processor Frequency |
10-Core (Max burst up to 4.7 GHz) |
| Hardware Transcoding Engine |
H.264, H.265, MPEG-4, VC-1;maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 60 |
| Hardware Encryption Engine |
√ |
| Memory |
|
| System Memory |
16 GB DDR5 non-ECC SODIMM |
| Pre-installed Memory Module |
16 GB DDR5 non-ECC SODIMM (1x 16 GB) |
| Total Memory Slot Number |
2 (DDR5 SODIMM) |
| Maximum Supported Memory |
64 GB DDR5 non-ECC SODIMM |
| Storage |
|
| Disk Slot Number |
12 |
| Compatible Drive types |
3.5" SATA HDD2.5" SATA HDD2.5" SATA SSD |
| Maximum Internal Raw Storage Capacity |
288 TB (24 TB x 12) (Capacity may vary by RAID types) |
| Drive Hot Swap |
√ |
| File System |
|
| Internal Drive |
Btrfs, EXT4 |
| External Drive |
EXT3, EXT4, NTFS, FAT32, HFS+ |
| External Ports |
|
| RJ-45 10GbE Network Jack |
2 |
| USB3.2 Host Port |
Type A *3 (10Gbps) ; Type C *1 (10Gbps) |
| HDMI |
1(HDMI 2.0) |
| PCIe Slots |
1 (PCIe 3.0 x2） |
| M.2 2280 NVMe Slot |
2 (PCIe 4.0 x4） |
| Appearance |
|
| Size (H*W*D) |
88 x 440 x 550 mm |
| Packaging Size (H*W*D) |
217 x 580 x 710 mm |
| Weight |
Gross Weight: 16.0 Kg |
| Others |
Others |
| System Fan |
80 x 80 x 38mm 3PCS |
| Fan Mode |
Smart, High speed, Middle speed, Low speed |
| Noise Level |
39.0 dB(A) （Using M.2 SSDs in standby mode; Test environment noise: 17.3dB(A); Test distance: 1m） |
| Power Supply |
550 W |
| Redundancy Power Supply |
Optional |
| AC Input Voltage |
100V - 240V AC |
| Power Consumption |
120.0 W (Fully loaded WD RED WD221KFGX 22TB hard drive(s) in read/write state)
33.0 W (Fully loaded WD RED WD221KFGX 22TB hard drive(s) in hibernation)
|
| Certificate |
FCC, CE, CCC, KC |
| Environment |
RoHS, WEEE |
| Temperature |
|
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
