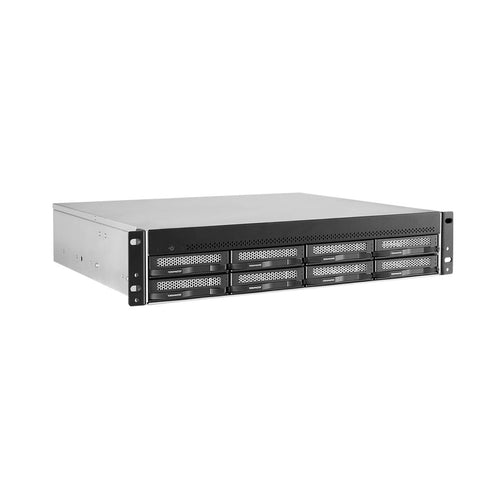

TerraMaster U8-450 Intel Atom C3558R 8GB 8-bay High Speed Network Storage
High-Speed Engine: A compact powerhouse for 4K editing and virtualization. Intel Atom C3558R CPU, 8GB RAM (up to 32GB), and dual M.2 NVMe slots with Hyper Cache technology boost performance by up to 100%. Dual 10GbE + dual 2.5GbE ports provide 20Gbps bandwidth via Link Aggregation.
Massive & Smart Storage: Centralize up to 160TB (8x20TB) of projects and backups. The intelligent TRAID system auto-manages storage—configuring redundancy, pooling space, and expanding capacity with zero IT expertise required.
Seamless Teamwork: Enable real-time collaboration. Multiple Windows/Mac workstations connect simultaneously over 10GbE for smooth editing of shared 4K footage. Supports all major file protocols and integrates with AD/LDAP for easy permission management.
Complete Data Protection: Defend against ransomware and loss with the TOS 5 system. Features include instant recovery snapshots (TFSS), multi-version backups, and tools for local/remote/cloud protection.
Enterprise Ready, Office Quiet: Its short 384mm depth fits anywhere. A silent fan ensures quiet, cool operation under load.
Features:
- Intel Atom® C3558R Quad Core 2.4 GHz processor
- 8 GB DDR4 non-ECC SODIMM system memory
- Supports up to 32 GB DDR4 non-ECC SODIMM
- 8 disk slots with 160 TB maximum internal raw storage
- Supports 3.5" SATA HDD and 2.5" SATA HDD/SSD
- 2 x RJ-45 2.5GbE and 2 x SFP+ 10GbE network ports
- 2 x USB3.1 Host Ports with 5Gbps speed
- 2 x M.2 2280 NVMe Slots
- 250 W power supply with 100V - 240V AC input
Specifications:
| Processor |
|
| Processor Model |
Intel Atom® C3558R |
| Processor Architecture |
X.86 64-bit |
| Processor Frequency |
Quad Core 2.4 GHz |
| Hardware Encryption Engine |
√ |
| Memory |
|
| System Memory |
8 GB DDR4 non-ECC SODIMM |
| Pre-installed Memory module |
8 GB DDR4 non-ECC SODIMM (1x 8GB) |
| Total Memory Slot Number |
2 (DDR4 SODIMM) |
| Maximum Supported Memory |
32 GB (16 GB+16 GB) DDR4 non-ECC SODIMM |
| Storage |
|
| Disk Slot Number |
8 |
| Compatible Drive types |
3.5" SATA HDD |
| 2.5" SATA HDD |
| 2.5" SATA SSD |
| Maximum Internal Raw Storage Capacity |
160 TB (20TB x8) (Capacity may vary by RAID types) |
| Drive Hot Swap |
√ |
| File System |
|
| Internal Drive |
Btrfs, EXT4 |
| External Drive |
EXT3, EXT4, NTFS, FAT32, HFS+ |
| External Ports |
|
| RJ-45 2.5GbE Network Jack |
2 |
| SFP+ 10GbE Network Jack |
2 |
| USB3.1 Host Port |
2(5Gbps) |
| Console Port |
1（No function） |
| M.2 2280 NVMe Slot |
2 |
| Appearance |
|
| Size (H*W*D) |
88 x 440 x 384 mm |
| Packaging Size (H*W*D) |
175 x 550 x 473 mm |
| Weight |
6.9 kg |
| Others |
|
| System Fan |
80 x 80 x 25mm 2PCS |
| Fan Mode |
Smart, High speed, Middle speed, Low speed |
| Noise Level |
32.5 dB(A) |
| Power Supply |
250 W |
| AC Input Voltage |
100V - 240V AC |
| Current Frequency |
50/60 Hz, Single frequency |
| Power Consumption |
68 W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state) |
| 29 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation) |
| Certificate |
FCC, CE, CCC, KC |
| Environment |
RoHS, WEEE |
| Temperature |
|
| Working Temperature |
0°C ~ 40°C (32°F ~ 104°F) |
| Storage Temperature |
-20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity |
5% ~ 95% RH |
| Package Contents |
|
| |
Host unit (x1) |
| Power cord (x1) |
| RJ-45 network cable 1.5 Meter (x1) |
| Quick Installation Guide (x1) |
| Limited Warranty Note(x1) |
| Screws(a few) |
