When you work with inductive probes, the biggest frustration is not seeing the measurement instantly. A missing or fuzzy readout forces you to guess, repeat the test, or stop the work line. This wastes time, creates errors, and can damage delicate parts. The Tesa TWIN-T10 Portable Digital Display Unit gives you a clear, real-time readout on a rugged screen, so you can trust every measurement and keep production moving.

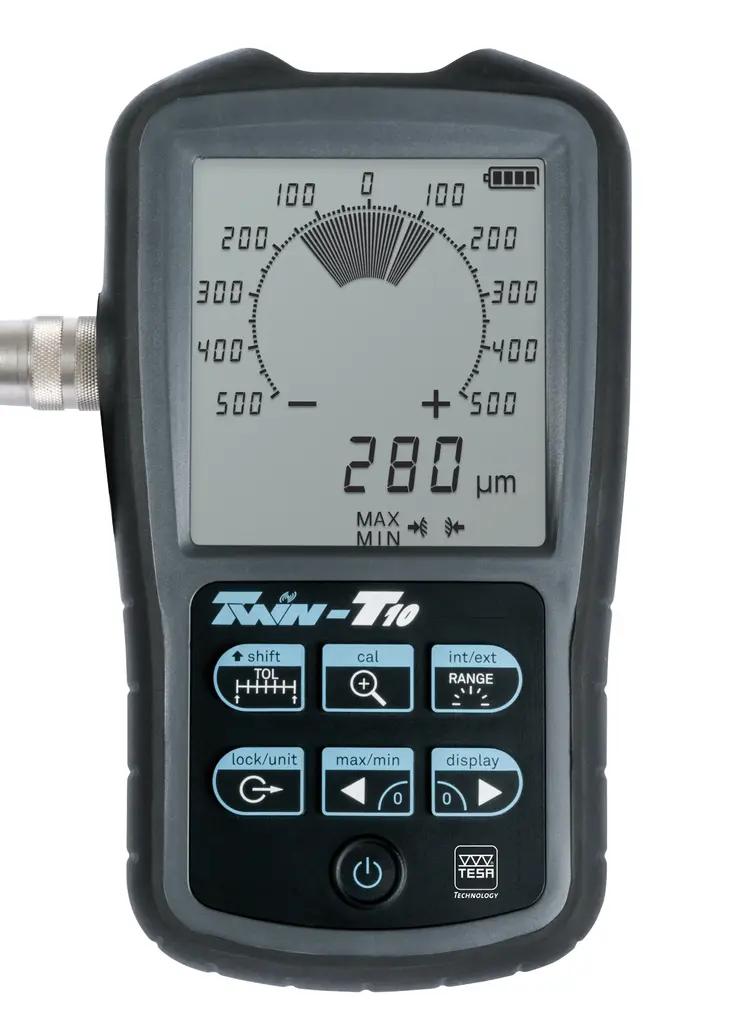

Tesa TWIN-T10 Portable Digital Display Unit 04430013 for Inductive Probes IP63 with Tesa
Never guess again. This portable digital display unit from Tesa is built for inductive probes and shows both analogue and digital values at a glance. It fits in your hand, runs on four AA batteries, and survives dust and water with an IP63 rating. If you need precise measurements down to 0.1 m, the unit auto-ranges and stores max, min and delta values for later analysis. It is the missing link between your probe and accurate data, helping you finish jobs faster and with confidence.
Key Features
- One probe input for inductive sensors.
- Combined analogue and digital display.
- Measuring range from 5 mm to 5 m.
- Resolution of 0.1 m.
- Auto-range function.
- MAX / MIN / MAX-MIN memory.
- Tolerance mode for quick pass/fail checks.
- Zeroing function for easy calibration.
- Metric and Imperial unit selection.
- RS232 digital output with 7-bit ASCII format.
- Response time 100 ms for fast feedback.
Specifications
| General Information |
|
| Manufacturer |
TESA (Hexagon) |
| Product Name |
TWIN-T10 Digital Display Unit |
| SKU |
04430013 |
| Product Type |
Portable display unit for inductive probes |
| Display & Measurement |
|
| Probe Inputs |
1 |
| Display Type |
Analogue + digital display |
| Measuring Range |
±5 mm, ±2 mm, ±500 µm, ±200 µm, ±50 µm, ±20 µm, ±5 µm |
| Resolution |
0.1 µm |
| Auto Range |
Yes |
| Functions |
MAX / MIN / MAX-MIN memory |
| Tolerance Mode |
Yes |
| Zeroing Function |
Yes |
| Unit Selection |
Metric (mm, µm) / Imperial (in/1000) |
| Response Time |
≤ 100 ms |
| Frequency Limit |
10 Hz (input signal) |
| Oscillator Frequency |
13 kHz |
| Interfaces & Data Output |
|
| Digital Output |
RS232 via TLC connector |
| Data Format |
7-bit ASCII |
| Power & Battery |
|
| Power Supply |
4 × AA LR6 batteries |
| Battery Autonomy |
340–400 hours |
| Environmental Conditions |
|
| Operating Temperature |
+10°C to +40°C |
| Storage Temperature |
-10°C to +60°C |
| IP Rating |
IP63 |
| Physical Characteristics |
|
| Dimensions |
170 × 100 × 38 mm |
| Weight |
410 g |
| Compliance & Accessories |
|
| EMC Standard |
EN 61326-1 |
| Included Items |
Unit, 4× AA batteries, user manual |
