Tired of guessing whether a part meets tight tolerances? The Tesa TWIN-T40 Digital Display Unit 4-Channel Touchscreen Metrology Indicator gives you instant, reliable numbers on the shop floor. It reads up to four probes at once, shows the data on a clear colour screen, and lets you decide in seconds if a component is OK or needs adjustment. If you need precise, repeatable measurements, this unit is the tool that stops costly re-work.

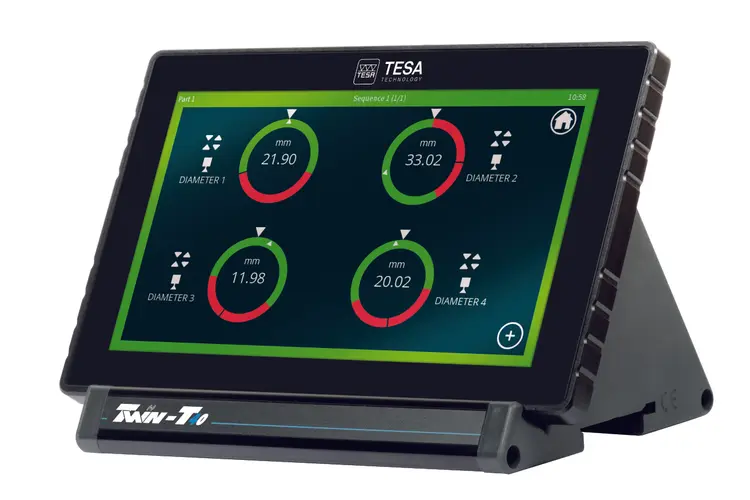

Tesa TWIN-T40 Digital Display Unit 4-Channel Touchscreen Metrology Indicator
Many workshops struggle with slow, single-channel gauges that cannot keep up with modern production rates. Missing a defect early can waste material and delay delivery. The TWIN-T40 solves this by letting you monitor up to four measurement points at the same time, using a 7-inch touch screen that displays each value clearly. Its high-speed sampling and built-in math functions turn raw data into useful results, so you can keep quality under control without extra paperwork.
Key Features
- 7-inch colour touch screen for easy reading.
- Four inductive probe inputs plus four USB inputs.
- Measurement range 5000 m with 0.1 m resolution.
- 6500 acquisitions per second for fast dynamic testing.
- Static and dynamic modes, including Min, Max, Max-Min, and Average.
- Multi-probe calculations such as flatness and parallelism.
- Up to 16 tolerance classes and OK/NOK display.
- RS232, USB, and TESA Link Connector for flexible data export.
- Aluminium housing, IP65 front protection, and 1.2 kg weight for portability
Specifications
| Manufacturer |
TESA (Hexagon) |
| Product Name |
TWIN-T40 Digital Display Unit |
| SKU |
04430015 |
| Display & Measurement |
|
| Display Type |
7" colour touch screen |
| Input Channels |
4 inductive probe inputs + 4 USB inputs |
| Measured Value Display |
1–4 simultaneous values |
| Measuring Range |
± 5000 µm |
| Resolution |
0.1 µm |
| Analogue Scale Interval |
0.2 / 200 µm |
| Sampling Rate |
6500 acquisitions per second |
| Measurement Modes |
Static and dynamic measurements |
| Dynamic Functions |
Min, Max, Max–Min, Average |
| Mathematical Functions |
Multi-probe calculations (e.g., flatness) |
| Tolerance Classes |
Up to 16 classes |
| Classification |
OK / NOK / adjustment display |
| Interfaces & Data Output |
|
| Interfaces |
RS232, TLC (TESA Link Connector), USB |
| Data Output |
RS232 / USB / TLC |
| Environmental Conditions |
|
| Operating Temperature |
10°C to 40°C |
| Storage Temperature |
-10°C to 60°C |
| Operating Humidity |
< 80% non-condensing |
| Standard Conditions |
20°C ±1°C, 40–65% RH |
| Construction & Physical Characteristics |
|
| Housing Material |
Aluminium |
| Dimensions |
112 × 190 × 119 mm |
| Screen Size |
155 × 87 mm |
| Protection Rating |
IP65 (front side) |
| Weight |
1.2 kg |
| Power & Compliance |
|
| Power Supply |
100–240 V AC, 50–60 Hz |
| Power Consumption |
18 W |
| Standards |
DIN 32876, CE, UKCA |
