Developers who work on AI at the edge often hit a wall because their hardware cannot keep up with modern models. Slow inference means longer testing cycles and higher costs. The problem becomes critical when a project needs real-time vision or speech processing in a compact device. The Thundercomm C7790DK, Qualcomm Q-7790, 24 TOPS AI Development Kit removes that barrier by delivering high-performance AI compute, rich I/O, and a ready-to-run software stack in one board.

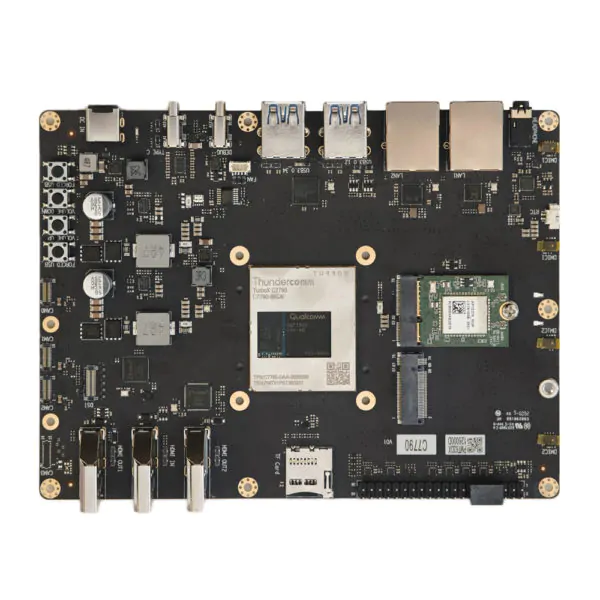

Thundercomm C7790DK, Qualcomm Q-7790, 24 TOPS AI Development Kit with Thundercomm
Imagine a kit that lets you turn ideas into working prototypes in days, not weeks. This is a complete development platform built around the Qualcomm Q-7790 processor and the TurboX C7790 SOM. It is designed for AI developers who need fast inference, multiple display and camera connections, and reliable networking. If you have ever struggled with fragmented hardware choices, this kit gives you a single, Thundercomm-backed solution that fits into a small enclosure and survives harsh temperatures.
Key Features
- TurboX C7790 SOM with Qualcomm Q-7790 processor.
- 24 TOPS of AI compute for deep-learning models.
- 2 HDMI-OUT, 1 DP-over-Type-C, and 1 MIPI DSI display ports.
- 3-lane D-PHY camera connectors and HDMI-IN for video capture.
- Audio I/O includes HDMI-IN/OUT with I2S, 3.5 mm headphone jack, and 4 DMICs.
- 4 USB-3.0 Type-A, 1 USB-3.1 Type-C, and dual 1 GbE Ethernet ports.
- M.2 Key M slot for SSD and M.2 Key E slot for Wi-Fi/BT module.
- TF card slot for easy storage expansion.
- Fan, RTC, UART, and power connectors for custom designs.
Specifications
| General |
|
| SOM on Board |
TurboX C7790 SOM |
| Display Interface |
|
| Display Interface |
2 x HDMI OUT connector, 1 x DP over Type-C, 1 x MIPI DSI connector |
| Audio Interface |
|
| Audio Interface |
1 x HDMI IN with audio (Over I2S interface), 1 x HDMI OUT with audio (Over I2S interface),
1 x HDMI OUT with audio (Over SoC native interface)*, 1 x 3.5mm headphone connector,
4 x DMIC (Onboard)
|
| Camera Interface |
|
| Camera Interface |
3 x 4-lane D-PHY camera, 1 x HDMI IN |
| Other Interfaces |
|
| Other Interfaces |
1 x USB 3.1 Type-C, 4 x USB 3.0 Type-A, 2 x 1000M Ethernet Port, 1 x TF Card Slot, 1 x M.2 Key M for SSD,
1 x M.2 Key E for Wi-Fi BT module, 1 x Fan connector, 1 x RTC connector, 1 x Type-C for UART,
1 x DC in Jack, 1 x A+G sensor, 1 x E-Compass
|
| Environmental |
|
| Operating Temperature |
-30°C – +75°C |
| Physical |
|
| Dimension |
160mm x 124mm x 20.5mm |
