Thundercomm T75GM-EA Development Kit, mmWave + Sub-6GHz

Developing products that need both mmWave and Sub-6GHz radios is hard. Engineers often have to buy separate modules, connect many antennas, and write custom drivers. This adds time, cost, and risk of errors. The Thundercomm T75GM-EA Development Kit combines mmWave and Sub-6GHz in one board, so you can test 5G, IoT, and edge-AI ideas without juggling many parts. It gives a single, ready-to-use platform that speeds up prototyping and reduces hardware headaches.

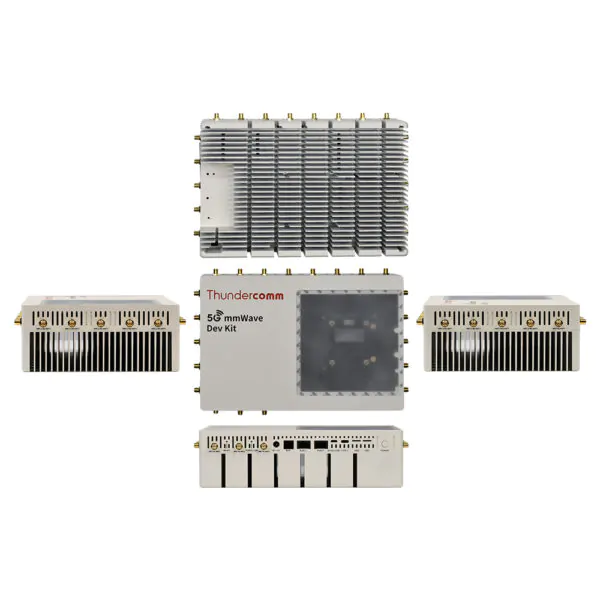

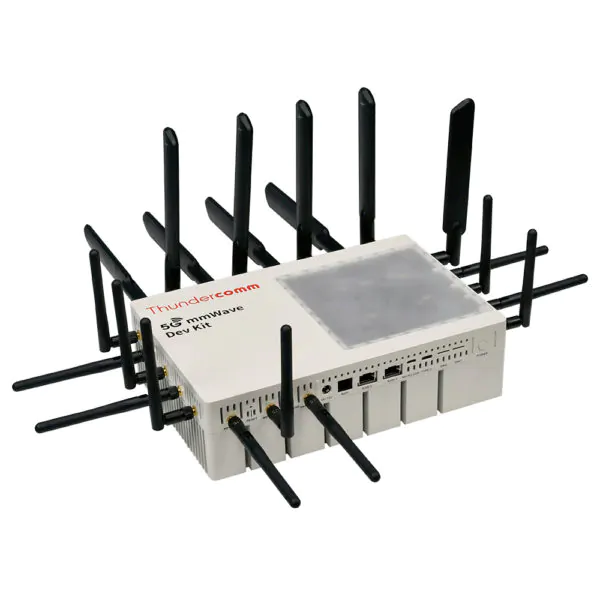

Thundercomm T75GM-EA Development Kit, mmWave + Sub-6GHz with Thundercomm

If you are building the next generation of wireless devices, you need a kit that can handle the full spectrum. The Thundercomm T75GM-EA Development Kit, mmWave + Sub-6GHz with Thundercomm delivers exactly that. It is a complete System-on-Module with built-in antennas, high-speed Ethernet, Wi-Fi, and cellular interfaces. Designers who struggle with fragmented hardware will find a clean solution that lets them focus on software and algorithms instead of wiring. Thundercomm brings the power of a carrier-grade radio into a compact lab board.

Key Features

• TurboX T75GM-EA System-on-Module with integrated mmWave and Sub-6GHz radios.
• Four mmWave (PC1) antenna ports and eight Sub-6GHz antenna ports.
• Twelve Wi-Fi antennas covering 2.4 GHz, 5 GHz, and 6 GHz bands with 44 MIMO.
• Two USXGMII 10 Gbps Ethernet interfaces for fast back-haul.
• Dual UIM slots for cellular SIM cards.
• USB 3.0 Type-C Gen2 and USB 2.0 Micro-B for debugging and data.
• Nine BLSP expansion interfaces supporting UART, SPI, and IC.
• Four LED indicators for status monitoring.
• Power, reset, and force-boot buttons for quick control.

Specifications
