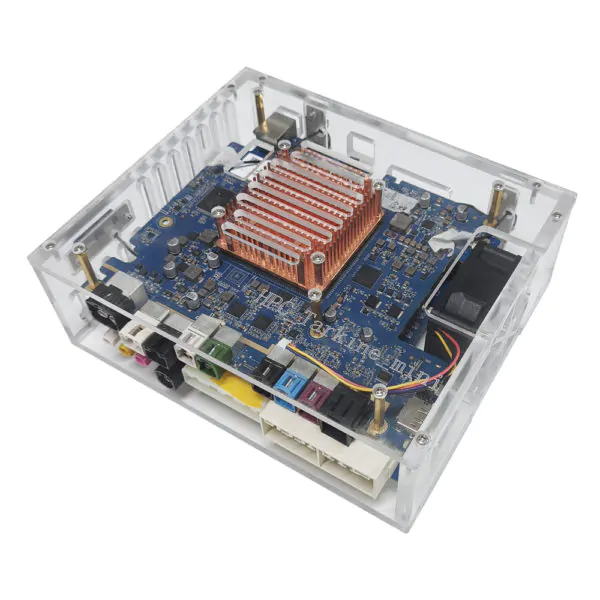

Thundercomm ThunderX Edge AI Domain Controller (Based on Qualcomm QCS9100)

Imagine your robot never hesitates, your vehicle reacts instantly, and your factory line stays alive even when power is low. Thundercomm offers the ThunderX Edge AI Domain Controller, a compact computer built on Qualcomm QCS9100. It runs AI models at the edge, connects cameras, radar and other sensors, and keeps data safe. If you struggle with slow processing, bulky hardware, or insecure connections, this controller solves those issues and lets you move forward.

Thundercomm ThunderX Edge AI Domain Controller (Based on Qualcomm QCS9100)

Many developers need a single board that can handle high-speed perception while staying rugged enough for outdoor use. Without such a board, they must stitch together several devices, increasing cost, weight and latency. The Thundercomm ThunderX Edge AI Domain Controller answers this need by delivering octa-core compute, a powerful GPU, and a full set of automotive-grade interfaces in a 190 mm by 188 mm package. It runs Linux, so existing software stacks work out of the box, and its built-in security chip protects firmware and data. The result is a reliable, ready-to-integrate brain for autonomous cars, drones, robots and smart factories.

Key Features

• Qualcomm Dragonwing QCS9100 octa-core processor up to 2.36 GHz.
• Adreno 663 GPU delivering up to 1.3 TOPS FP32 performance.
• Supports up to five radar inputs and three 12 MP cameras.
• Twelve display ports with a maximum of 48 MP resolution.
• Dual 1000Base-T1 Ethernet plus additional 100Base-T1 and 100Base-TX.
• Eight CAN-FD channels for vehicle network communication.
• Integrated IMU for motion sensing.
• External security chip with internal HSM for cryptographic protection.
• Operating temperature range from -40 C to +85 C.
• Power input 6 V to 18 V with typical consumption around 75 W.
• Fan cooling system for reliable operation in harsh environments.

Specifications
