When you need to check torque on a bolt, a wrench, or a sensor, the reading can be fuzzy or lost completely. Inaccurate torque leads to loose parts, broken equipment, and costly re-work. You also need a way to store the data for reports or later analysis. The Tohnichi CD5 Compact Digital Torque Indicator with RS232C Data Logging Display solves these issues. It gives you a clear, precise readout and saves up to 1,000 readings, ready to send to a PC or printer.

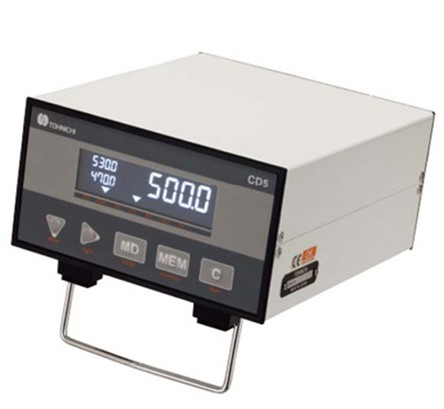

Tohnichi CD5 Compact Digital Torque Indicator with RS232C Data Logging Display with Tohnichi
Get instant, accurate torque numbers on a bright LCD and log every measurement with a single device. The CD5 is a compact display that works with strain-gauge sensors, torque wrenches and rotary torque sensors. If you struggle with guesswork or manual charts, this tool gives you a digital readout and automatic data transfer, so you can trust each tightening step.
Key Features
- Negative-type liquid crystal display with white, red or blue backlight.
- 5 V operating voltage for safe low-power use.
- 3.0 mV/V signal input range for high-precision sensors.
- 150 Hz analog filter removes noise from fast measurements.
- 16-bit A/D converter provides detailed digital conversion.
- 4000 samples per second sampling speed captures rapid torque changes.
- Nonlinearity 0.05 % FS and drift specifications ensure stable accuracy.
- Calibration options include equivalent input, weight, and sensor-wrench methods.
- RS232C compliant communication for easy PC or printer connection.
- Analog output and HI/OK/LO relay contacts for external monitoring.
- Pass/Fail judgment built in for quick quality checks.
- AC 100-240 V power supply supports worldwide use.
Specifications
| Model |
CD5 |
| Product Type |
Compact Display / Torque Indicator |
| Application |
Display for strain gauge sensors |
| Compatible Sensors |
TCF Fixed Torque Sensors, TCR Rotary Torque Sensors, Sensor-equipped Torque Wrenches |
| Display Type |
Negative type liquid crystal (White / Red / Blue) |
| Applied Voltage |
5 V |
| Signal Input Range |
±3.0 mV/V |
| Analog Filter |
150 Hz |
| A/D Converter |
16-bit successive approximation |
| Sampling Speed |
4000 samples/sec |
| Display Resolution |
±1/5000 (±1.0 to ±3.0 mV/V), ±1/2000 (±0.5 to ±1.0 mV/V), 1/2000 (+0.1 to +3.0 mV/V) |
| Display Accuracy |
Nonlinearity ±0.05% F.S., Zero point drift ±0.1 μV/°C (Typ.), Gain drift ±0.01%/°C (Typ.) |
| Torque Display |
6 digits (13 mm character height) |
| Counter Display |
4 digits (5.2 mm character height) |
| Calibration Methods |
Equivalent Input Calibration, Calibration by Actual Weight, Calibration using Sensor-equipped Torque Wrench |
| Data Memory |
1000 readings |
| External Input |
RESET / COMP / CLEAR / CHSW |
| Communication |
RS232C compliant |
| Outputs |
Analog output, HI / OK / LO relay contact output |
| Pass/Fail Judgment |
Yes |
| Data Transfer |
PC or Printer via RS232C |
| Power Supply |
AC 100–240 V, 50/60 Hz |
| Weight |
Approx. 1.5 kg |
| RoHS Compliant |
Yes |
