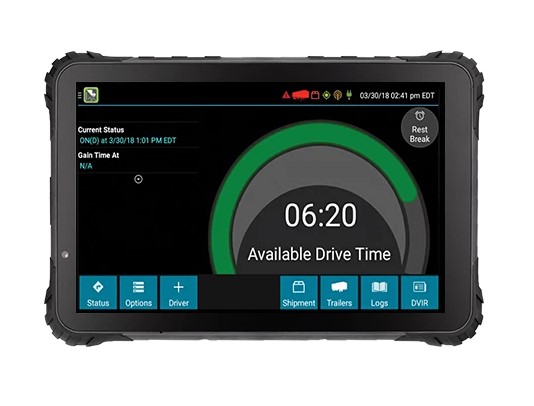

Topicon MDT1065, 4GB/64GB 1920 x 1200 pixel 10-inch Rugged Tablet

Topicon MDT1065, 4GB/64GB 1920 x 1200 pixel 10-inch Rugged Tablet

The Topicon MDT1065, 4GB/64GB 1920 x 1200 pixel 10-inch Rugged Tablet is built for professional mobile computing in demanding environments where durability, clear visibility, and reliable connectivity are important. Its 10-inch IPS display delivers 1920 x 1200 resolution with an anti-glare capacitive multi-touch panel and glove and wet mode support. The rugged design makes it suitable for field operations, transportation, logistics, industrial workflows, and other applications requiring dependable tablet performance.

Powered by a 2.0GHz Octa Core Processor, 4GB LPDDR4X memory, and 64GB MMC storage, the MDT1065 provides a practical platform for Android-based applications. It supports Android 12 or Android 14 and includes a user-accessible MicroSD card slot supporting up to 512GB. This combination provides useful capacity for mobile applications, operational data, digital forms, navigation software, and other field-based workflows.

The tablet provides a broad range of wireless and wired connectivity options for professional applications. Bluetooth V5.0, dual-band wireless LAN, cellular communication, GNSS, and Ethernet support through the cradle allow the MDT1065 to connect with networks, peripherals, and vehicle systems. Its dual Nano-SIM configuration supports cellular connectivity, while GPS, GLONASS, and GALILEO provide positioning capabilities for applications that require location information.

For data capture and vehicle monitoring, the MDT1065 includes a 20MP rear camera, optional 1D and 2D imager support, NFC, and support for AHD 720P, 1080P, and analog cameras. Its docking connector provides RS232, RS485, USB, Ethernet, and power-related interfaces for integration with external equipment. The tablet can therefore support workflows such as asset identification, mobile inspection, vehicle monitoring, field data collection, and connected equipment operations.

The MDT1065 is designed to operate in challenging environments with an IP67 sealing rating and 1.2m/4 ft. drop protection per MIL STD 810H. It supports operating temperatures from -20°C to 60°C, 90% non-condensing humidity, and specified electrostatic discharge protection. The rechargeable 3.85V 7600mAh lithium-ion battery supports mobile operation, while its 930g construction and 17mm depth provide a rugged form factor for professional deployment. These characteristics make the tablet suitable for transportation, logistics, industrial field service, warehouse operations, inspection, and other mobile computing applications.

Key features

• 10-inch IPS display with 1920 x 1200 pixel resolution

• 2.0GHz Octa Core Processor with 4GB LPDDR4X memory

• 64GB MMC storage with MicroSD support up to 512GB

• Android 12 or Android 14 operating system

• Bluetooth V5.0 and dual-band wireless LAN connectivity

• 20MP rear camera with optional 1D and 2D scanner support

• IP67 sealing with 1.2m/4 ft. drop protection per MIL STD 810H

• Rechargeable 3.85V 7600mAh lithium-ion battery

SPECIFICATION
