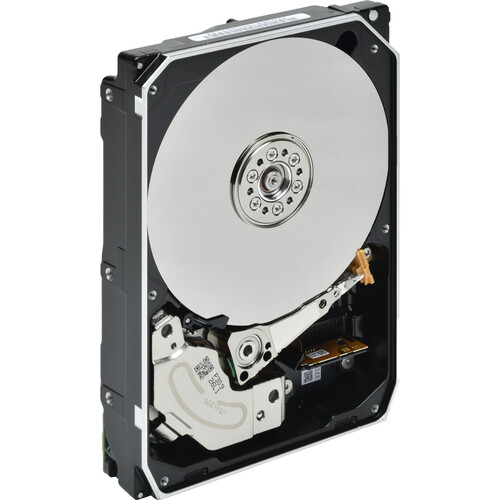

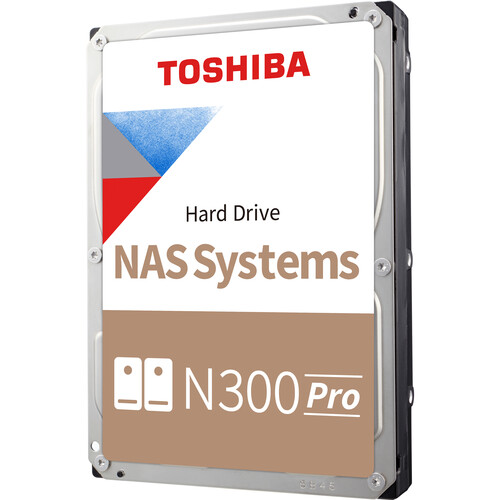

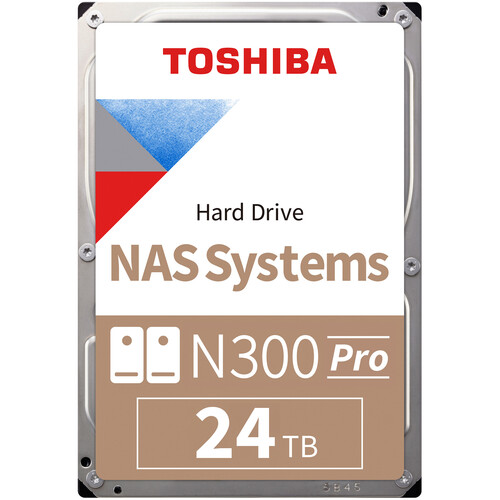

Toshiba N300 PRO HDWG82EXZSTB, 24TB 7200RPM 3.5" SATA Internal NAS HDD
The Toshiba N300 HDWG82EXZSTB is a 24TB 3.5-inch internal hard drive designed for high-capacity NAS and storage systems. It uses a SATA 6.0 Gbit/s interface and 7200 RPM rotational speed, providing reliable storage performance for demanding environments.
The drive uses Conventional Magnetic Recording (CMR) technology and features a large 1,024MB cache. With a typical sustained data transfer speed of 309 MB/s, it is suitable for handling large files, backups, media storage, and other data-intensive workloads.
The HDWG82EXZSTB supports up to 24 drive bays and is designed for 24x7 operation. Rotational Vibration (RV) sensors, a shock sensor, Native Command Queuing (NCQ), Toshiba Cache Technology, and Ramp Loading Technology help support reliable operation in multi-drive NAS environments.
With a maximum workload rate of 550 TB per year, an MTTF of 2,500,000 hours, and an unrecoverable error rate of 1 per 10¹⁵, this drive is built for continuous and demanding storage workloads.
The Toshiba N300 HDWG82EXZSTB combines 24TB capacity, 7200 RPM performance, 1GB cache, CMR recording, and SATA connectivity in a 3.5-inch design. It is suitable for NAS systems, centralized storage, backups, media libraries, and other high-capacity applications.
Key Features
- 24TB high-capacity storage
- 7200 RPM rotational speed
- SATA 6.0 Gbit/s interface
- 1,024MB cache size
- 309 MB/s typical sustained transfer speed
- CMR recording technology
- Supports up to 24 drive bays
- 24x7 operation with 550 TB/year workload
- 2,500,000-hour MTTF
Specifications:
| Basic |
|
| Model Number (Retail Packaging) |
HDWG82EXZSTB |
| Capacity |
24TB |
| Interface |
SATA 6.0 Gbit/s |
| Form Factor |
3.5-inch |
| Advanced Format (AF) |
Yes |
| RoHS Compatible |
Yes |
| Sector Size |
512e |
| Features |
|
| Drive Bays Supported |
Up to 24 |
| Rotational Vibration (RV) Sensors |
Yes |
| Native Command Queuing (NCQ) |
Yes |
| Shock Sensor |
Yes |
| Toshiba Cache Technology |
Yes |
| Ramp Loading Technology |
Yes |
| Recording Technology |
CMR |
| Performance |
|
| Rotational Speed |
7,200 RPM |
| Max Data Transfer Speed (Sustained) |
309 MB/s (Typ.) |
| Cache Size |
1,024 MB |
| Reliability |
|
| 24x7 Operation |
Yes |
| Maximum Workload Rate |
550 TB/Year |
| MTTF |
2,500,000 Hours |
| Unrecoverable Error Rate |
1 per 10¹⁵ |
| Load/Unload Cycles |
600,000 |
| Limited Warranty |
5 Years |
| Power Management |
|
| Supply Voltage |
5 VDC +10%/-7%; 12 VDC ±10% |
| Power Consumption (Operating) |
7.62 W |
| Power Consumption (Active Idle-A) |
4.35 W |
| Environmental |
|
| Temperature (Operating) |
5 to 60°C (surface) |
| Temperature (Non-Operating) |
-40 to 70°C |
| Vibration (Operating) |
7.35 m/s² (0.75 G) (5 to 300 Hz); 2.45 m/s² (0.25 G) (300 to 500 Hz) |
| Vibration (Non-Operating) |
29.4 m/s² (3.0 G) (5 to 500 Hz) |
| Shock (Operating) |
490 m/s² (50 G), 2 ms duration |
| Shock (Non-Operating) |
1,960 m/s² (200 G), 2 ms duration |
| Physical |
|
| Acoustics Idle Mode |
20 dB |
| Height |
26.1 mm |
| Length |
147.0 mm |
| Width |
101.85 mm |
| Weight |
730 g |
| Bottom Holes Type |
TYPE1 |
