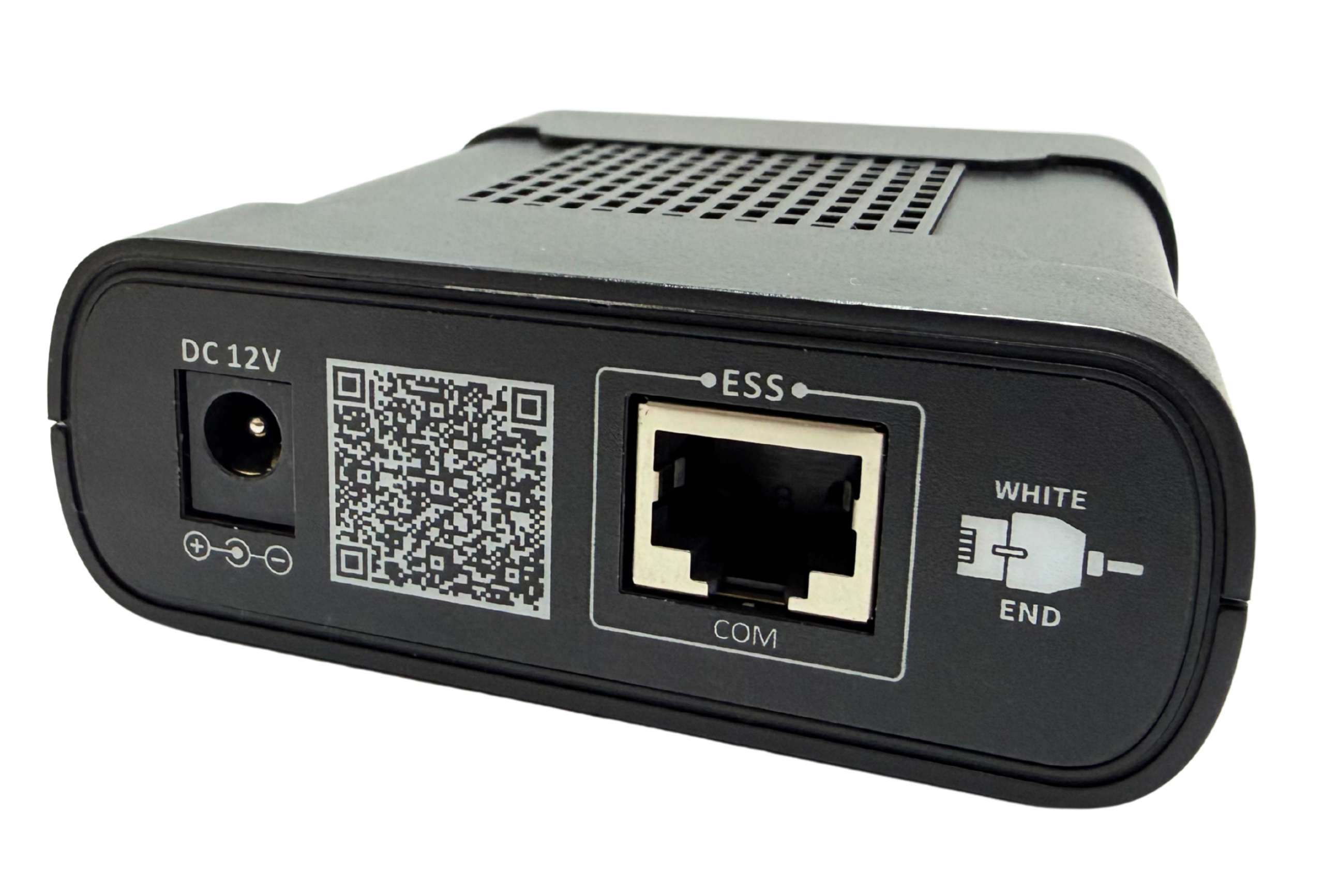

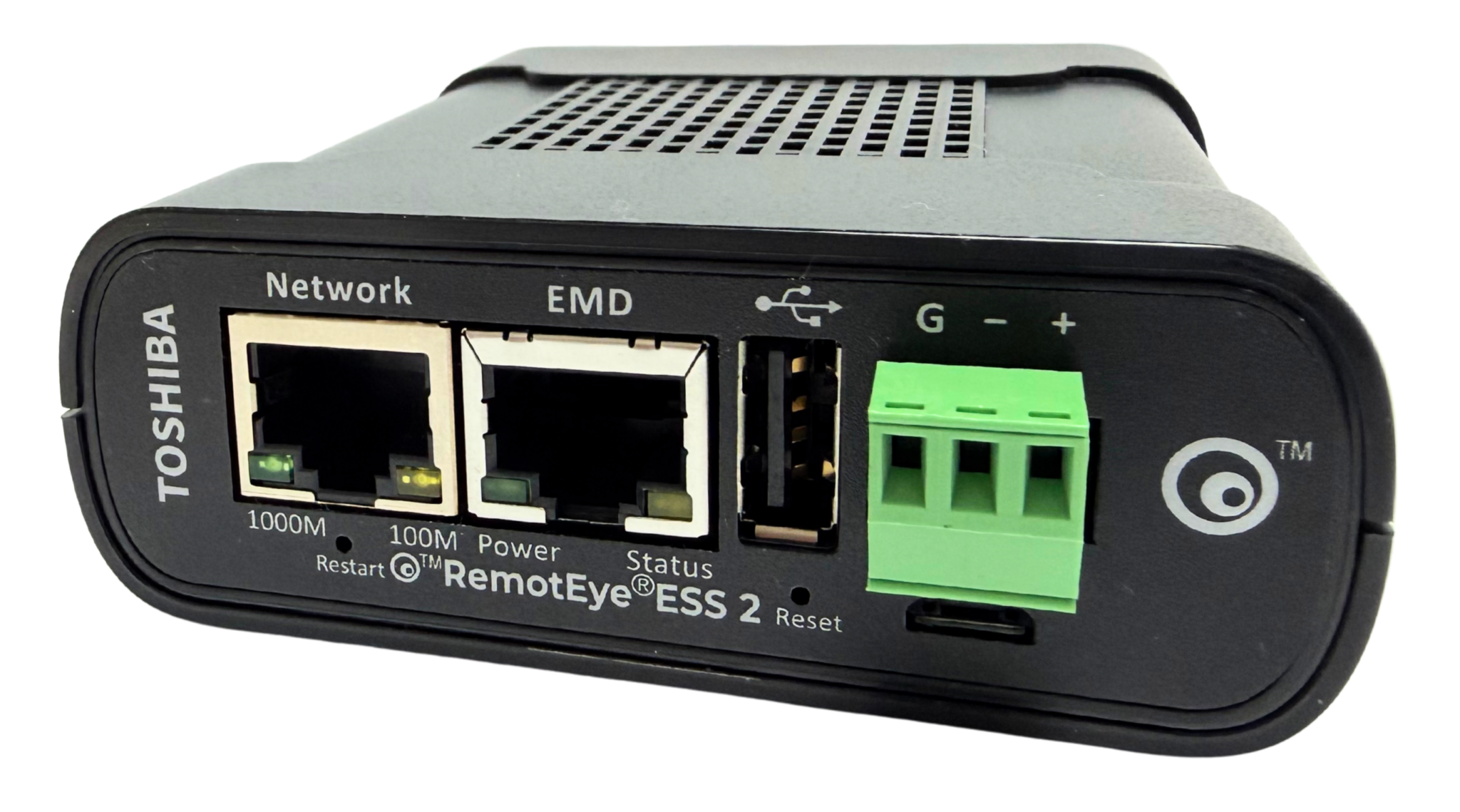

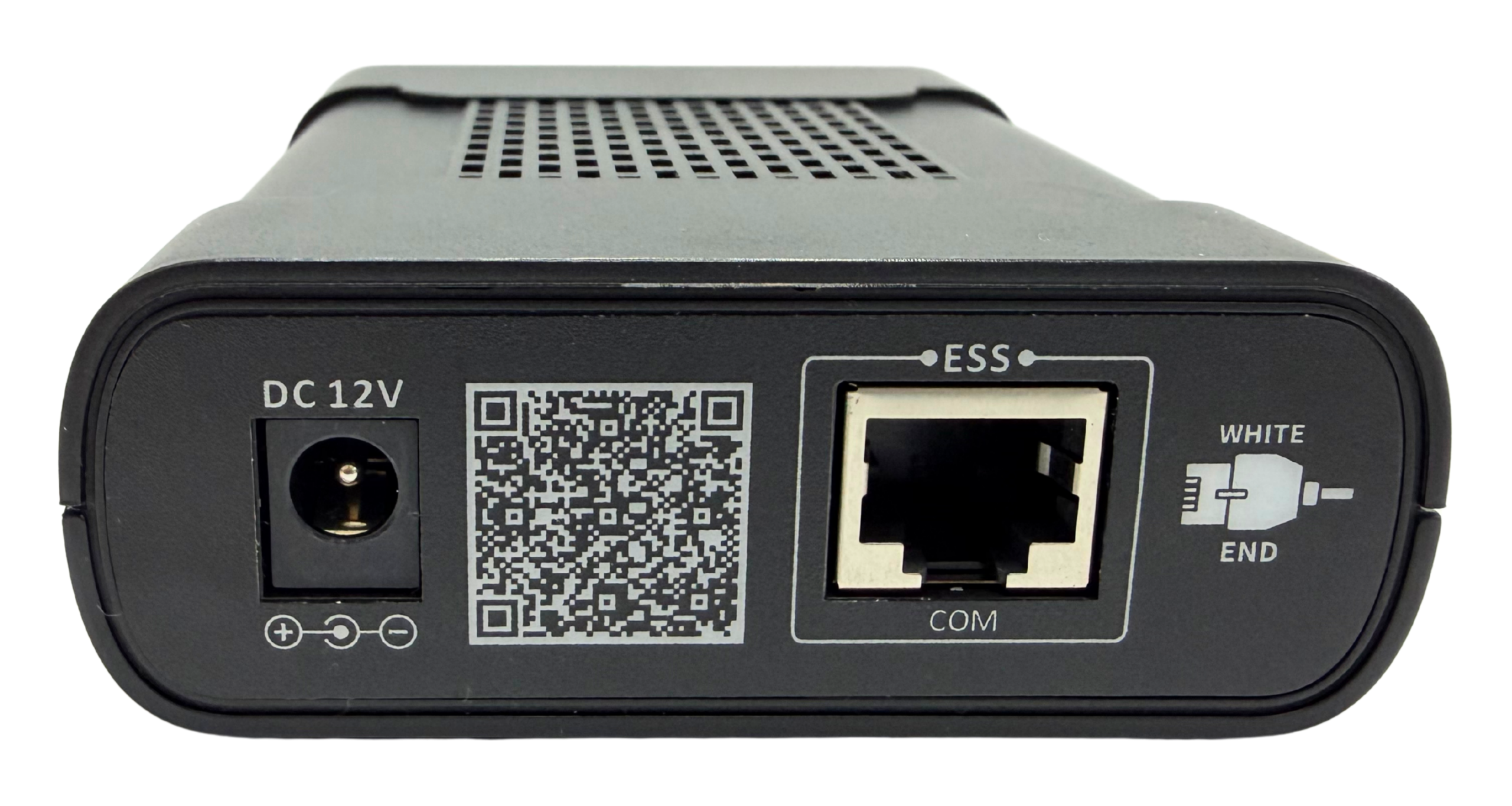

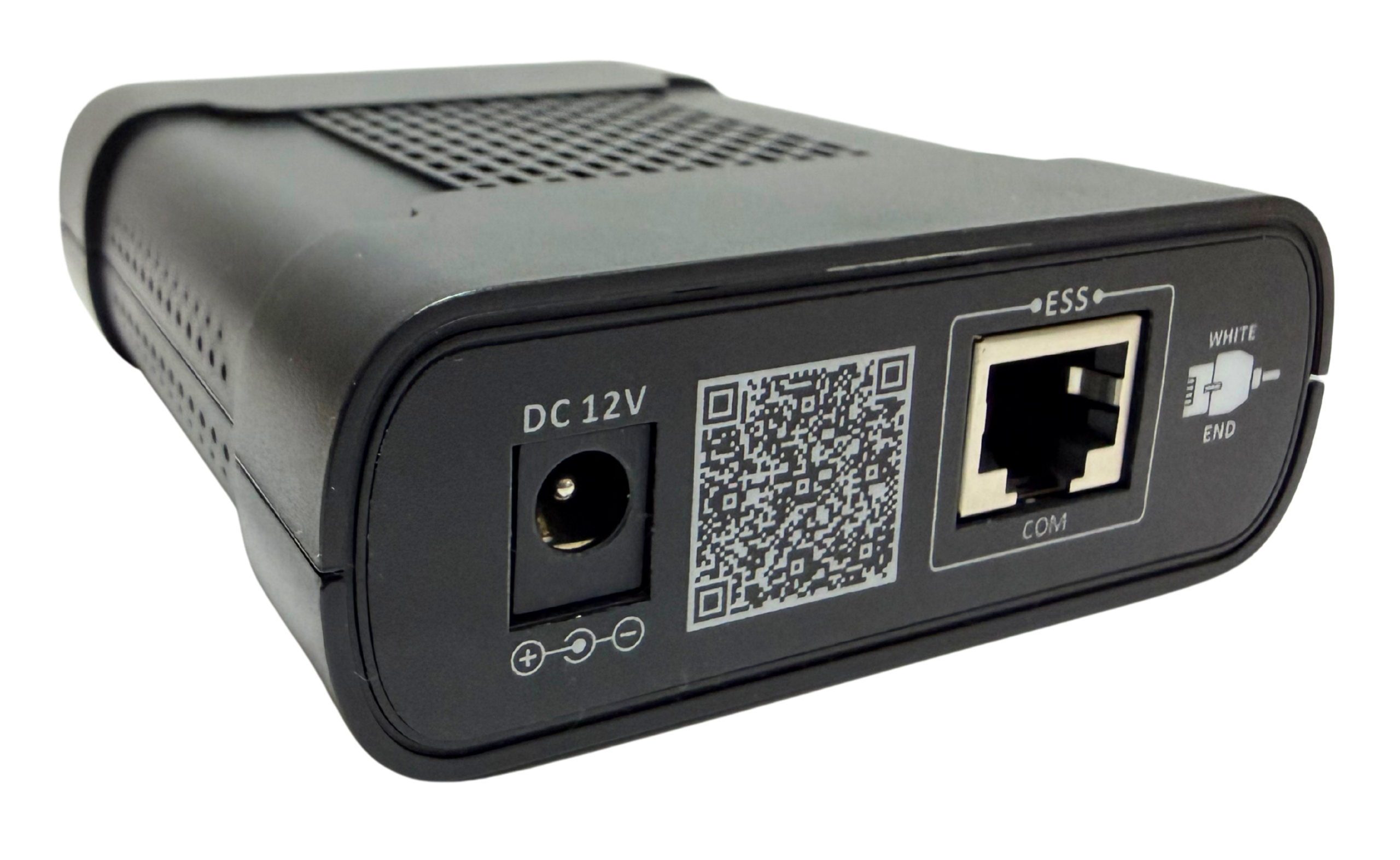

RemotEye® ESS2 is an advanced IIoT (Industrial Internet of Things) network card designed as a complete monitoring solution for Toshiba SCiB™ Energy Storage Systems (ESS). Built for seamless integration into a wide range of management platforms, it supports common universal protocols to enhance system uptime and simplify deployment. With expanded storage, increased memory, and significantly improved network performance over the previous generation, it maintains all core capabilities while reducing operational complexity. The device includes Ethernet and RS‑485 interfaces for compatibility with diverse network architectures, and its embedded web server enables real‑time monitoring of the SCiB™ ESS without requiring an external management system. The web app is accessible via any of the latest available web browsers.
Features:
- Real-time SCiB™ ESS health monitoring
- SCiB™ Module & Cell level monitoring
- Key performance analytics
- User-friendly interface
- Access to ESS historical events
- Simplified firmware upgrade process
- RS-485 interface with multi-drop support
- Compatible with the second-generation Environmental Monitoring Device (EMD) for monitoring temperature and humidity
- Auto-sensing 10/100/1000 Mbps fast Ethernet network port
- Supports Modbus TCP/RTU protocol
- Supports DHCP for automatic IP address assignment
- Supports HTTP/S
- Email notifications
- History logs
- Multi-user profile logins to web app
- Supports BACnet/IP protocol
- Supports SNMP protocol
- IIoT Connectivity to Toshiba Monitoring System
Innovative Features:
- Automatic firmware updates for easier maintenance
- Custom reminders can be programmed for preventative maintenance.
- Multi-profile web app login
- Seamless integration with RemotEye® 4 or RemotEye® 5 that allows to view the UPS status.
- Modbus TCP multi-thread support for hot, warm, and cold failover BMS configurations
Added Security:
- SSHv2 for secure connection to ensure data transmitted over the network is protected when connected to management console.
- HTTPS for encryption connection to web app
- Built-in firewall to block specific IP address and ranges.
- RADIUS support for remote authentication
Specifications
| Description |
For Single System External Setup |
| Compatibility |
480VDC / 288VDC / 125VDC SCiB ESS, 480VDC Single-string, 480VDC High Power |
| Preinstalled Models |
125VDC*, 480VDC Single-string*, 480VDC High Power* |
| Package Content |
RemotEye ESS Device, USB Cable (USB A to USB Micro-B), ESS Communication Cable, Power Cable and Adapter, Quick Setup Guide, Phoenix 3-pin Connector |
| Network Port |
Auto Sensing 10/100/1000Mbps Fast Ethernet RJ-45 LAN Port |
| Serial Port |
RJ-45 Port for EMD Gen.2, Micro-USB Port for Management Console & RS-485 2-Wire Interface (half-duplex) for Modbus RTU |
| Communication Protocols |
SNMPv1, SNMPv2c, SNMPv3, HTTP/S, Modbus TCP, Modbus RTU, BACnet/IP, MQTT |
| Network Protocol |
TCP/IP, ARP, DNS, TFTP, SSLv3, PPP, ICMP, DHCP/ BOOTP, Telnet, SSHv2, TFTP, UPnP, RADIUS |
| Supported MIB |
TIC-RMTIESS-G9000-MIB, TIC-RMTIESS-125VDC-MIB, TIC-RMTIESS-4400-MIB, TIC-RMTIESS2-SYS-MIB |
| Operating Temperature |
-20 - 40 °C |
| Operating Humidity |
10 - 90% non-condensed |
| Power Input |
12VDC - Important Note: The external RemotEye ESS requires an external 120VAC source to connect the included 120VDC to 12VDC power adapter. |
| Power Consumption |
6.0 Watts Maximum |
| Size (LxWxH) |
94mm (3.7") x 82mm x (3.2") x 30.8mm (1.2") |
| Standards |
CE, FCC Class B |
| Device Integration |
T1000, 1600XP, 1600XPi, 3000 SP, 3000 TP, G9400, 4300, 4400, G9000, G2020, 5000 3P1 & N3R |
