Toshiba RemotEye-HMI Human Machine Interface (HMI)

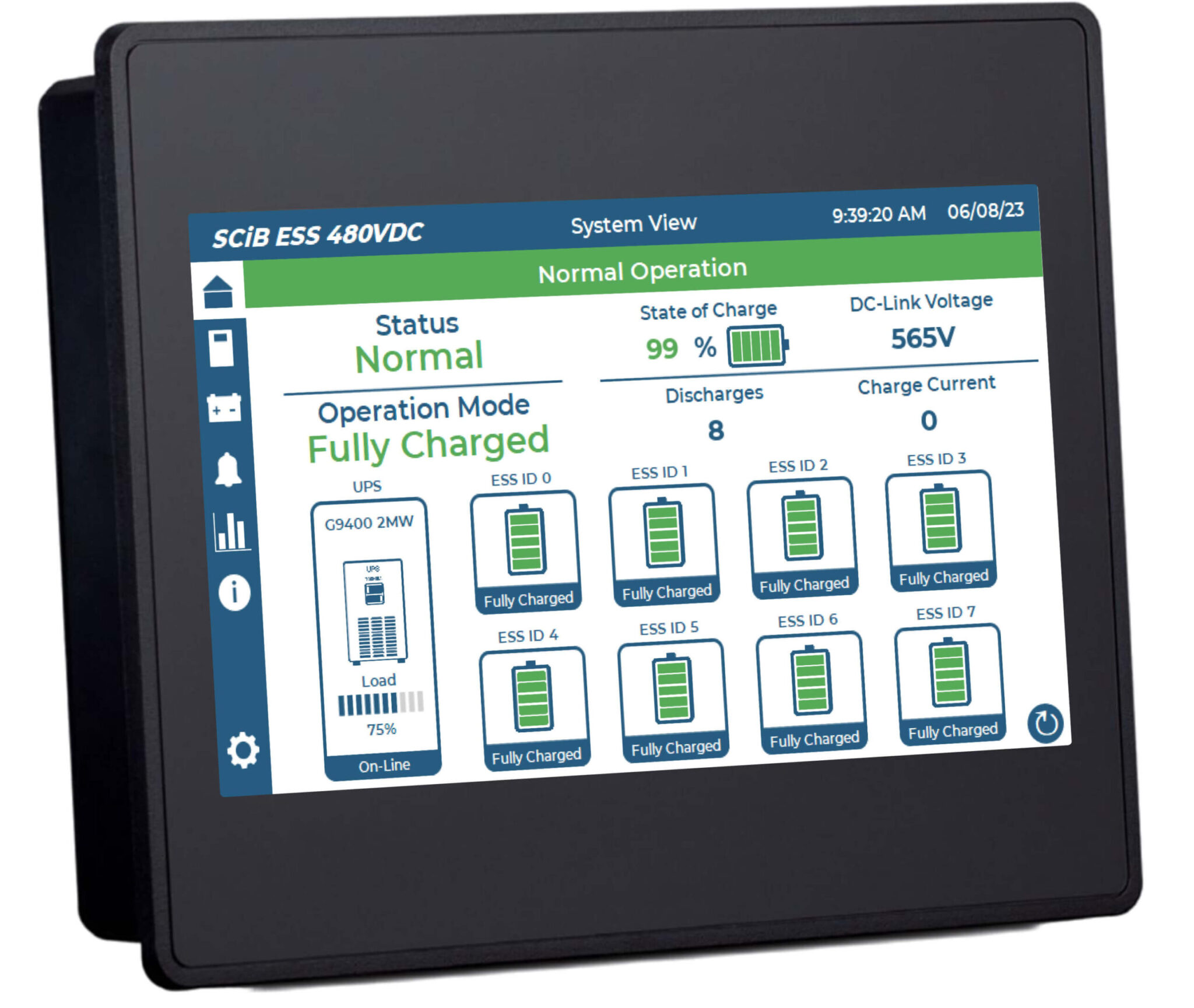

The RemotEye® Human Machine Interface (HMI) offers unparalleled edge computing capabilities for the Toshiba SCiB™ Energy Storage System (ESS). This sophisticated device provides a single interface to interact with the connected SCiB™ ESS, even when it comprises multiple (up to eight) cabinets.
This system also allows you to delve into multiple layers of data, ranging from the macro view of the entire system to the micro view of each cell. This offers insight into a range of data points such as battery state of charge, operation, alarms, and overall status, enabling you to maximize efficiency and optimize your business’ uptime.
Additionally, it allows for a luxurious, comprehensive view of your Toshiba UPS equipped with the RemotEye® 4 IIoT card, all within one sophisticated interface, providing exceptional monitoring of the entire system. You can even experience the same visual sensation as if you were standing right in front of the Human-Machine Interface with the convenience of remote connectivity through VNC protocol.
RemotEye® HMI Monitoring Features
- System status overview

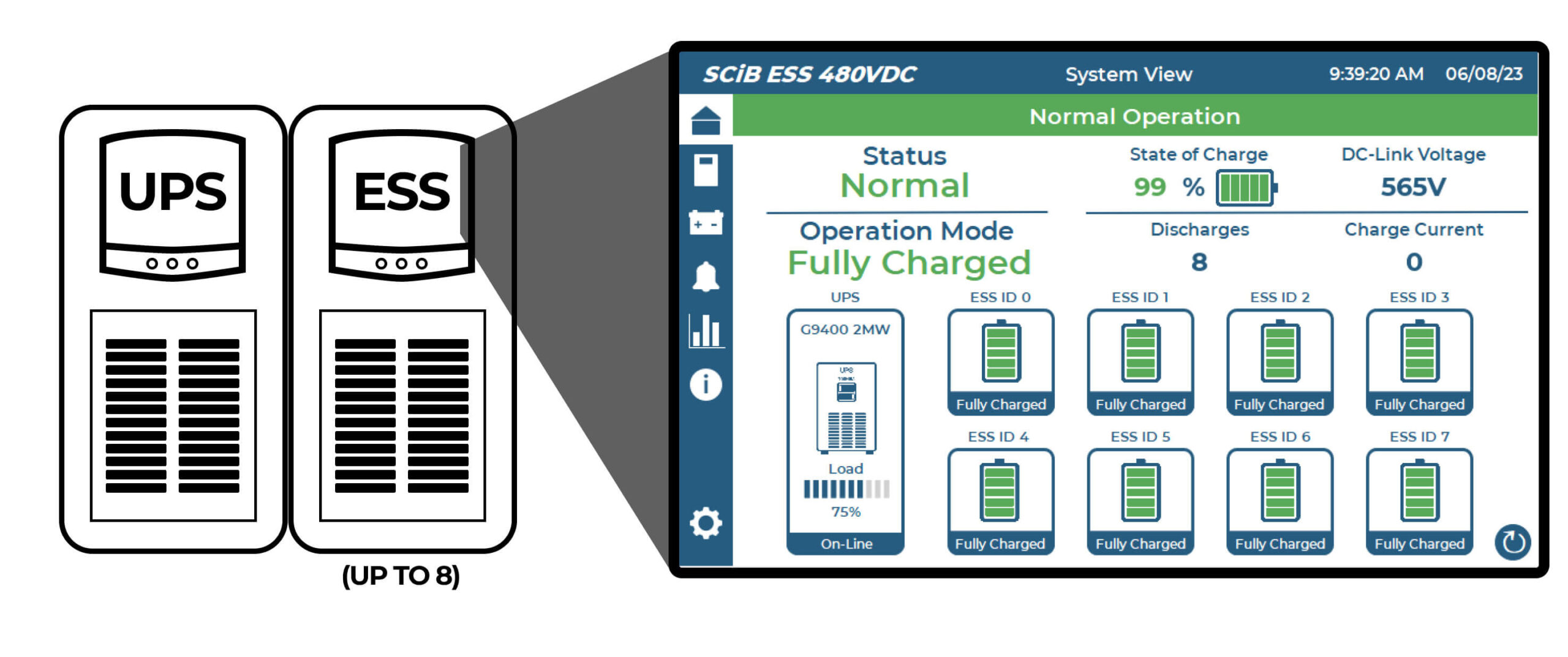

- Monitor multiple cabinets (up to 8 cabinets)
- Battery state of charge
- String contactor status
- Visibility to UPS data
- Visibility to string-level data

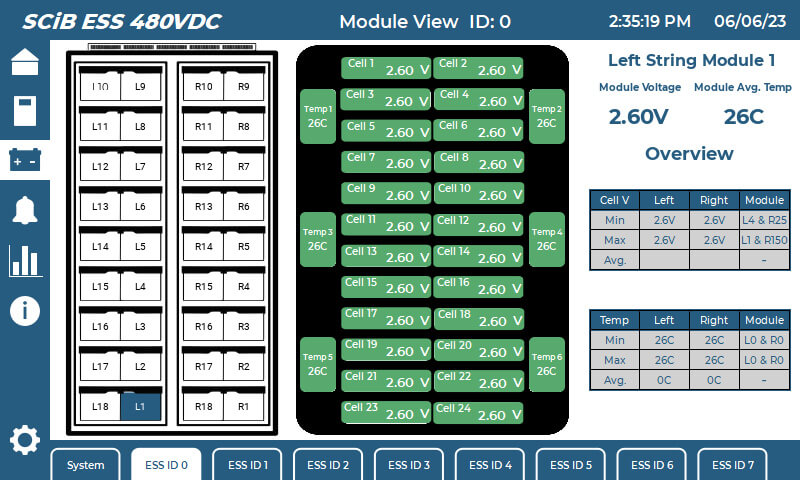

- Visibility to module-level data
- Visibility to cell-level data
- Real-time charts
- Key performance analytics
- System info, warning & critical alarms
- Buzzer on alarms
- User-friendly interface
- Remote access via VNC
Specifications
| Network protocols |
|
| HTTP |
Port 80 |
| VNC |
Port 5900 |
| Ratings |
|
| Power supply |
24 Vdc (10 to 32 Vdc) |
| Current consumption |
0.3 A at 24 Vdc (max.) |
| Input protection |
Automatic |
| Battery |
Yes (Supercapacitor) |
| Environmental conditions |
|
| Operating temp |
0 to 50 °C (vertical installation) |
| Storage temp |
-20°C to +70°C |
| Operating / Storage Humidity |
5-85% RH, non-condensing |
| Protection class |
IP66 (front), IP20 (rear) Type: 2, 4X |
| Dimensions and weights |
|
| Faceplate L x H |
187x147 mm (7.36x5.79”) |
| Cutout A x B |
176x136 mm (6.93x5.35”) |
| Depth D + T |
29+5 mm (1.14+0.19”) |
| Weight |
Approx 0.6 Kg |
| Approvals |
|
| CE |
Electromagnetic Compatibility Directive 2014/30/EU (EMC) |
| ATEX |
Zone 2: II 3 G Ex ic ec IIC T6 Gc |
| UL |
cULus: UL508, Class 1 Div 2 |
| DNV-GL |
Yes |
| EU RO MR |
Yes |
| RCM |
Yes |
