Totemtech TP07 Solar Powered tire Pressure Monitoring System

Totemtech TP07 Solar Powered tire Pressure Monitoring System

TP09 TPMS product is designed for monitoring pressure and temperature of each tire of cars, trucks, buses, OTR tires, etc. It will send out alarm in case of abnormal pressure and temperature to users or drivers for safety driving. Furthermore, Using this TPMS product can save fuel, prolong tires life and make driving more comfortable.

● Pressure and temperature alert
● Selectable pressure unit(PSI | BAR)
● Selectable temperature unit(°C | °F)
● Configurable for high / low temperature alert
● Easy sensor included in the monitor
● Automatic white and red backlight
● Rechargeable lithium battery
● Monitors up to 34 tires simultaneously
● External RF433.92MHz antenna
● Various TPMS sensors types: external type, internal type, banded type, air flow-through type

Features:

● Radial acceleration sensor, temperature sensor
● Embedded 8051 compatible 8-bit microcontroller
● 6KB on-chip FLASH memory
● 256Byte RAM
● 315 and 434MHz FSK/ASK RF-transmitter
● 125KHz ASK high-sensitivity LF-receiver
● Power control/wake-up system to minimize battery consumption
● Ultra low standby current

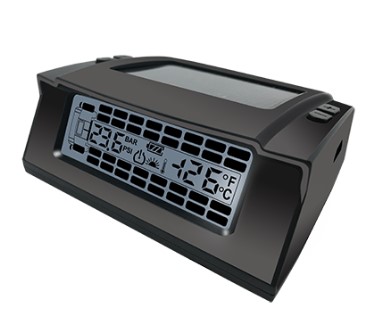

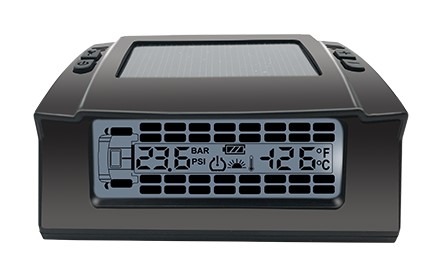

TPMS Display Screen

the TPMS display can show 34 tires status including tire position, temperature, BAR/PSI unit, F or C temperature unit, battery status, solar powered or not, temperature alert indicator, tire pressure alert indicator.

Benefit From TPMS Receiver Module

• Easy integration into your existing systems.
• strengthen your current systems with Tire pressure monitoring function.
• Extend the life of the Tire.
• Save your fuel consumption.
• Save your money.
• Control the tire pressure constantly.

Specifications:
