Professional High Power 24-Port PoE+ Switch
Plug and Play, with PoE Transmission for Surveillance up to 250 m
- 250 W PoE Budget
- Transmission Distance up to 250 m
- One-Click Priority Mode
- One-Click Traffic Separation
- Ultra HD Video
- Plug and Play
Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE Budget
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

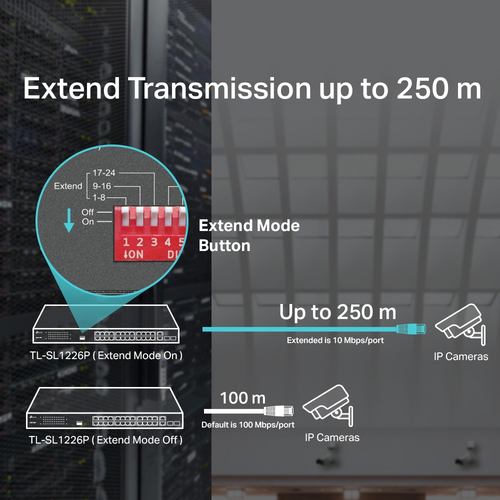

Dedicated Design for IP Surveillance—Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m — perfect for IP Camera deployment in large areas.
Dedicated Design for IP Surveillance — Higher Performance and Security

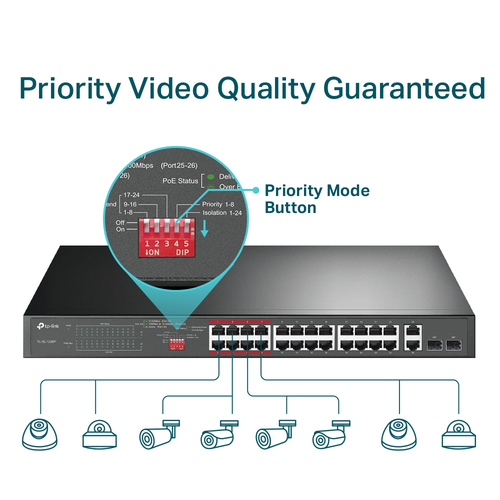

Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.
One-Click Traffic Separation for Ports 1-24
With one click, Isolation Mode easily divides traffic for ports 1–24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

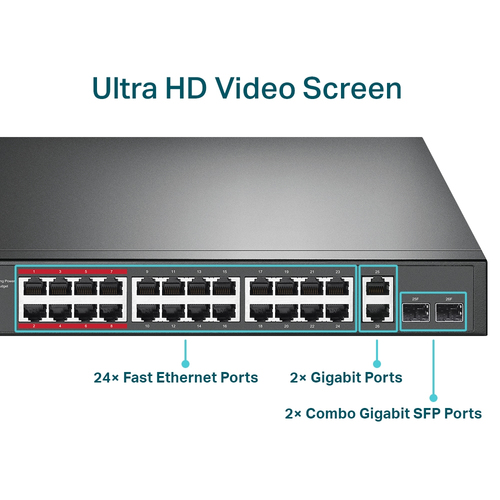

Smooth HD Video Monitoring
2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 24× HD IP cameras work simultaneously.
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
Specifications
| Management features |
| Traffic classification |
Yes |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Combo SFP ports quantity |
2 |
| Gigabit Ethernet (copper) ports quantity |
2 |
| Fast Ethernet (copper) ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
26 |
| Network |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
4.1 MB |
| Jumbo frames |
10000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
6.54 Mpps |
| Switching capacity |
8.8 Gbit/s |
| MAC address table |
8000 entries |
| Design |
| Number of fans |
2 fan(s) |
| LED indicators |
Yes |
| Product colour |
Grey |
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
| Power consumption (max) |
281 W |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
250 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
24 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Heat dissipation |
1002.54 BTU/h |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
180 mm |
| Width |
440 mm |
| Packaging content |
| Rack mount kit |
Yes |
| Quick start guide |
Yes |
| Packaging data |
| Package weight |
3.02 kg |
| Package height |
80 mm |
| Package depth |
528 mm |
| Package width |
250 mm |
| Certificates |
| Certification |
CE, FCC, RoHS |
