Product Code: SWHO-384
MPN #: TL-SF1009P

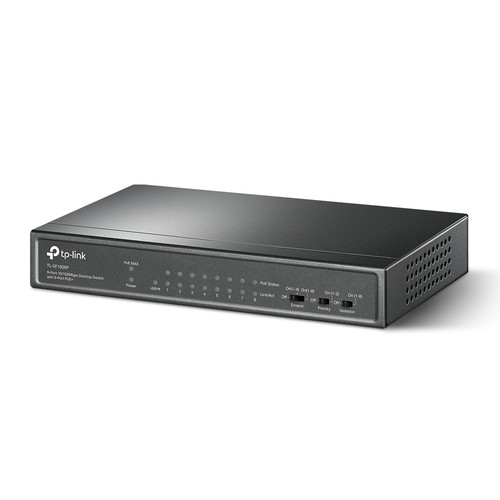

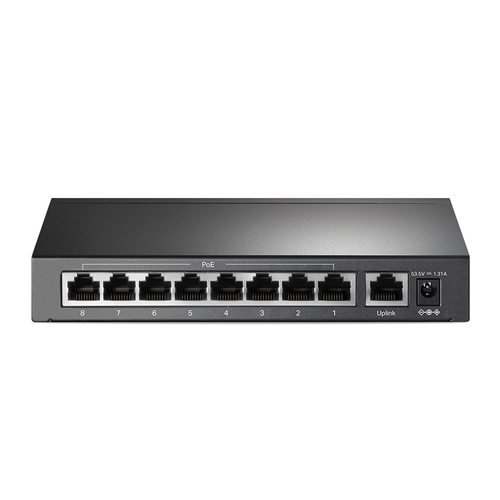

Professional 9-Port Unmanaged Switch with 8 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Ideal for IP Surveillance
—Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.
Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Power connector | DC-in jack |
| Installed SFP+ modules quantity | 0 |
| Installed SFP modules quantity | 0 |
| Fast Ethernet (copper) ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Network | |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow control support | Yes |
| MAC address auto-aging supported | Yes |
| MAC address auto-learning supported | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| 10G support | No |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission | |
| Store-and-forward | Yes |
| Forwarding rate | 1.3392 Mpps |
| Switching capacity | 1.6 Gbit/s |
| MAC address table | 2000 entries |
| Design | |
| Wall mountable | Yes |
| LED indicators | Activity, Link, PoE, Power |
| Housing material | Metal |
| Product colour | Black |
| Stackable | No |
| Rack mounting | No |
| Performance | |
| Fanless | Yes |
| Power | |
| Power consumption (max) | 77.08 W |
| Input current | 1.31 A |
| DC input voltage | 53.5 V |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Power supply included | No |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 65 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Heat dissipation | 262.84 BTU/h |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Height | 27 mm |
| Depth | 98 mm |
| Width | 171 mm |
| Packaging content | |
| User guide | Yes |
| Packaging data | |
| Package weight | 980 g |
| Package height | 68 mm |
| Package depth | 280 mm |
| Package width | 223 mm |
| AC adapter included | Yes |
| Package type | Box |
| Sustainability | |
| Sustainability compliance | Yes |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Compliance certificates | Federal Communications Commission (FCC), CE, RoHS |
