Tired of slow, spotty Wi-Fi that makes video calls drop and games lag? The Archer AX3000 brings fast, reliable wireless to any PC. It is a PCIe card that adds Wi-Fi 6 and Bluetooth 5.2 to desktops that lack modern connectivity. If you have an old computer that cant keep up with todays bandwidth demands, this adapter solves the problem and lets you stream, work, and play without interruption.

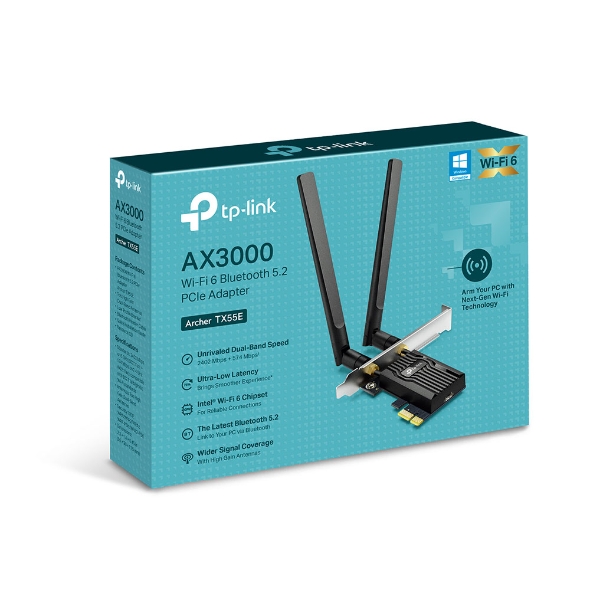

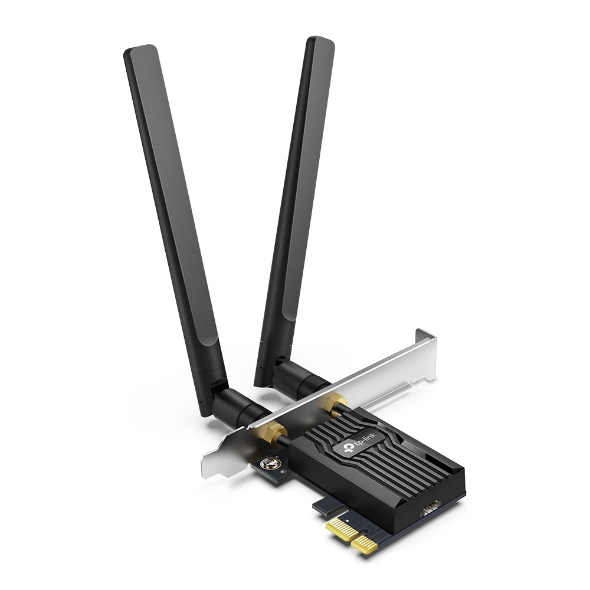

TP-Link Archer AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
Many homes now have multiple devices competing for the same Wi-Fi channel. The result is congestion, lower speeds, and frequent disconnections. This matters because it wastes time and frustrates anyone trying to work or enjoy entertainment online. The Archer AX3000 clears the bottleneck with Wi-Fi 6 technology, higher data rates, and two high-gain antennas. It also adds Bluetooth 5.2, so you can connect keyboards, mice, and speakers without extra dongles.
Benefits
- Up to 2400 Mbps on 5 GHz, so 4K video streams without buffering.
- Bluetooth 5.2 provides stable connections for wireless accessories.
- Two external antennas improve range in large homes or apartments.
- Easy PCIe installation, no need for external adapters.
- Supports WPA3 security, keeping your network safe from intruders.
Key Features
- Intel Wi-Fi 6 chipset for efficient data handling.
- Dual-band support: 2.4 GHz and 5 GHz frequencies.
- Two high-gain antennas for extended coverage.
- Bluetooth 5.2, backward compatible with 5.0, 4.2, and 4.0.
- PCIe interface for stable, high-speed connection.
- Supports WPA/WPA2/WPA3 encryption for strong security.
- Compatible with Windows 10/11 (64-bit) only.
- Includes low-profile bracket, Bluetooth cable, and quick guide.
- CE, FCC, and RoHS certified for safety and reliability.
- Operates in temperatures from 0 C to 40 C, suitable for most rooms.
Specifications
| Dimensions (W × D × H) |
4.72 × 3.09 × 0.82 inches (120 × 78.5 × 21 mm) |
| Antenna |
Two High-Gain Dual Band Antennas |
| Chipset |
Intel Wi-Fi 6 Chipset |
| Bluetooth Standards |
Bluetooth 5.2 / 5.0 / 4.2 / 4.0 |
| Interface |
F_USB 2.0 |
| Wireless Standards |
IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11ax/n/g/b (2.4 GHz) |
| WLAN Signal Rate (5 GHz) |
11ax: up to 2402 Mbps;
11ac: up to 1733 Mbps;
11n: up to 300 Mbps;
11a: up to 54 Mbps
|
| WLAN Signal Rate (2.4 GHz) |
11ax: up to 574 Mbps;
11n: up to 300 Mbps;
11g: up to 54 Mbps;
11b: up to 11 Mbps
|
| WLAN Reception Sensitivity (5 GHz) |
11ax: -56.25 to -65 dBm;
11ac: -62 to -73.75 dBm
11n: -74.5 to -77.5 dBm;
11a: -77.75 to -94.5 dBm
|
| WLAN Reception Sensitivity (2.4 GHz) |
11ax: -60.75 to -63.75 dBm;
11n: -73 to -76.25 dBm;
11g: -76.5 dBm;
11b: -89 dBm
|
| Transmit Power |
5 GHz: 27 dBm (FCC) / 23 dBm (CE); 2.4 GHz: 26 dBm (FCC) / 20 dBm (CE) |
| WLAN Modes |
Infrastructure Mode |
| Wireless Security |
WEP (64/128-bit), WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| Certifications |
CE, FCC, RoHS |
| Package Contents |
Archer TX55E, Two Antennas, Low-Profile Bracket, Bluetooth Cable, Quick Guide, Resource CD |
| System Requirements |
Windows 11/10 (64-bit only) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10%–90% non-condensing |
| Storage Humidity |
5%–90% non-condensing |
