| WiFi Speeds |
BE6500: 5 GHz: 5764 Mbps (802.11be)
2.4 GHz: 688 Mbps (802.11be)
|
| WiFi Range |
3 Bedroom Houses, 6× External Antennas,
Beamforming, Multiple antennas form a signal-boosting array to cover more directions and large areas
|
| WiFi Capacity |
High, Dual-Band, MU-MIMO, OFDMA, Airtime Fairness, DFS, 4 Streams |
| Advanced Features |
Multi-Link Operation (MLO), 4K-QAM, Multi-RUs,
EasyMesh-Compatible, Works with Alexa and Google Assistant, IoT Network
|
| Wireless Mode |
Router Mode, Access Point Mode |
| Network Security |
SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway |
| HomeShield Security |
Real-Time IoT Protection, Malicious Site Blocker,
Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner
|
| Guest Network |
1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network |
| VPN Server |
OpenVPN Server, PPTP VPN Server, L2TP VPN Server, WireGuard VPN Server |
| VPN Client |
OpenVPN Client, PPTP VPN Client, L2TP VPN Client, WireGuard VPN Client |
| WiFi Encryption |
WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |

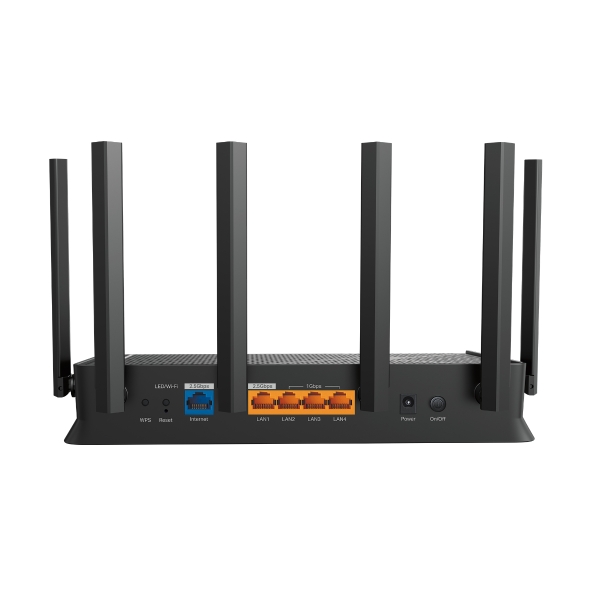

| Ethernet Ports |
1× 2.5 Gbps WAN, 1× 2.5 Gbps LAN, 3× 1 Gbps LAN |
| USB Support |
1× USB 3.0, Supported Partition Formats: NTFS, exFAT, HFS+, FAT32,
Supported Functions: FTP Server, Media Server, Samba Server
|
| Buttons |
Power Button, Wi-Fi/LED Button, WPS Button, Reset Button |
| Power |
12 V ⎓ 2.5 A |
| Protocols |
IPv4, IPv6 |
| Service Kit |
HomeShield |
| EasyMesh |
Compatible with EasyMesh |
| Parental Controls |
HomeShield Parental Controls, Custom Profiles, Professional Content Filter Library,
Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports
|
| WAN Types |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service |
QoS by Device |
| Cloud Service |
Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding |
Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV |
IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP |
Address Reservation, DHCP Client List, Server |
| DDNS |
TP-Link, NO-IP, DynDNS |
