| Wireless Standards & Protocols |
IEEE 802.11ax 6 GHz, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AXE7800: 6 GHz: 2402 Mbps (802.11ax),
5 GHz: 4802 Mbps (802.11ax),
2.4 GHz: 574 Mbps (802.11ax)
|
| WiFi Range |
4 Bedroom Houses, 8× Fixed High-Performance Antennas,
Beamforming, High-Power FEM, 4T4R
|
| WiFi Capacity |
Very High, Tri-Band, 4×4 MU-MIMO, OFDMA, Airtime Fairness, DFS, 8 Streams |
| Working Modes |
Router Mode, Access Point Mode |
| Network Security |
SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway |
| HomeShield Security |
Real-Time IoT Protection, Malicious Site Blocker,
Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner
|
| Guest Network |
1× 6 GHz Guest Network,
1× 5 GHz Guest Network,
1× 2.4 GHz Guest Network
|
| VPN Server |
OpenVPN Server, PPTP VPN Server, L2TP VPN Server |
| VPN Client |
OpenVPN Client, PPTP VPN Client, L2TP VPN Client |
| WiFi Encryption |
WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |
| Processor |
1.7 GHz Quad-Core CPU |

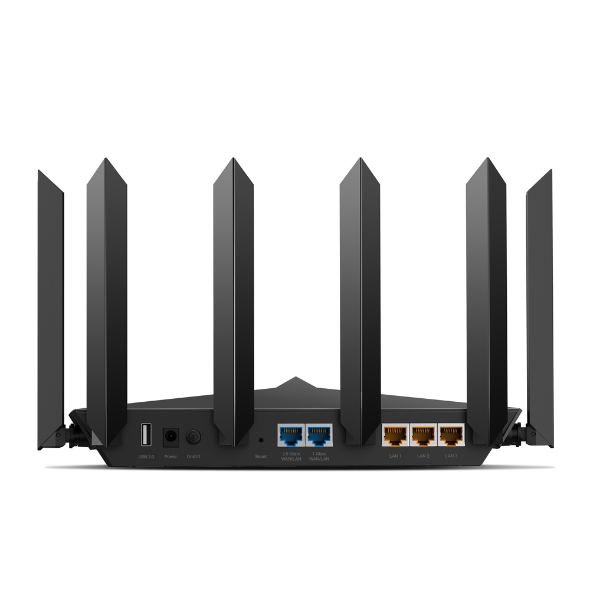

| Ethernet Ports |
1× 2.5 Gbps WAN/LAN Port, 1× 1 Gbps WAN/LAN Port, 3× 1 Gbps LAN Ports |
| USB Support |
1× USB 3.0 Port, 1× USB 2.0 Port,
Supported Formats: NTFS, exFAT, HFS+, FAT32,
Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server
|
| Buttons |
Power On/Off Button, Reset Button |
| Power |
12 V ⎓ 3.3 A |
| Protocols |
IPv4, IPv6 |
| Service Kits |
HomeShield |
| OneMesh™ |
Supported, allows linking multiple units for seamless coverage |
| Parental Controls |
HomeShield Parental Controls, Custom Profiles, Professional Content Filter Library,
Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking,
Pause the Internet, Weekly and Monthly Reports
|
| WAN Types |
Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service |
QoS by Device |
| Cloud Service |
Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding |
Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server |
| IPTV |
IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP |
Address Reservation, DHCP Client List, Server |
| DDNS |
TP-Link, NO-IP, DynDNS |
| Management Features |
Tether App, Webpage |
| System Requirements |
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+,
or other JavaScript-enabled browser; Cable or DSL Modem (if needed);
Subscription with an internet service provider
|
| Certifications |
FCC, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉),
Operating Humidity: 10%~90% non-condensing
|
| WiFi Transmission Power |
FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤ |
