| Dimensions (W × D × H) |
3.7 × 4.8 × 0.8 in (95.2 × 120.8 × 21.5 mm) |
| Antenna |
2× High-Performance Tri-Band Antennas |
| Wireless Standards |
IEEE 802.11a/b/g/n/ac/ax/be |
| WLAN Signal Rate (6 GHz) |
11be: Up to 5764 Mbps (dynamic)
11ax: Up to 2402 Mbps (dynamic)
|
| WLAN Signal Rate (5 GHz) |
11be: Up to 2882 Mbps (dynamic)
11ax: Up to 2402 Mbps (dynamic)
11ac: Up to 1732 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11a: Up to 54 Mbps (dynamic)
|
| WLAN Signal Rate (2.4 GHz) |
11be: Up to 688 Mbps (dynamic)
11ax: Up to 574 Mbps (dynamic)
11n: Up to 300 Mbps (dynamic)
11g: Up to 54 Mbps (dynamic)
11b: Up to 11 Mbps (dynamic)
|
| WLAN Reception Sensitivity (6 GHz) |
11ax HE20 MCS0: -94 dBm
11be EHT320 MCS13: -44 dBm
|
| WLAN Reception Sensitivity (5 GHz) |
11ac VHT20 MCS0: -94 dBm
11be EHT160 MCS13: -48 dBm
|
| WLAN Reception Sensitivity (2.4 GHz) |
11n HT20 MCS0: -95 dBm
11be EHT40 MCS13: -56 dBm
|
| WLAN Transmit Power (2.4 GHz) |
24 dBm (FCC) (EIRP) / 20 dBm (CE) (EIRP) |
| WLAN Transmit Power (5 GHz) |
24 dBm (FCC) (EIRP) / 20 dBm (CE) (EIRP) |
| WLAN Transmit Power (6 GHz) |
20 dBm (FCC) (EIRP) / 20 dBm (CE) (EIRP) |
| WLAN Modes |
Infrastructure mode |
| Wireless Security |
WPA/WPA2/WPA3 (Personal/Enterprise), WPA-PSK/WPA2-PSK |
| Certification |
FCC/CE/IC/NCC/JRF/VCCI/BSMI |
| Package Content |

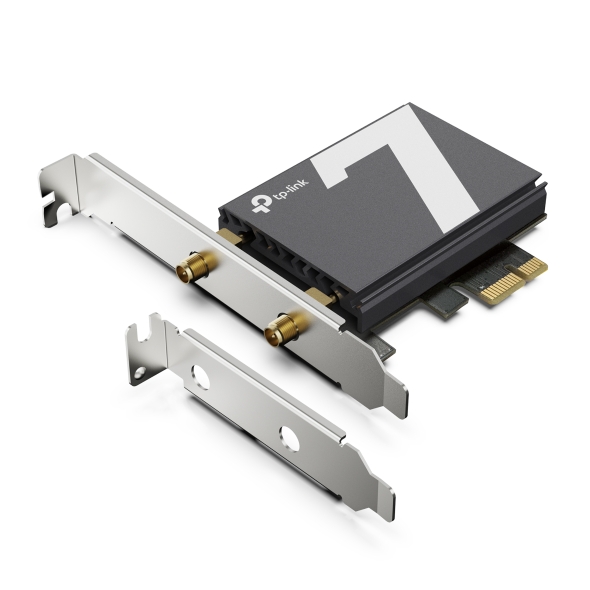

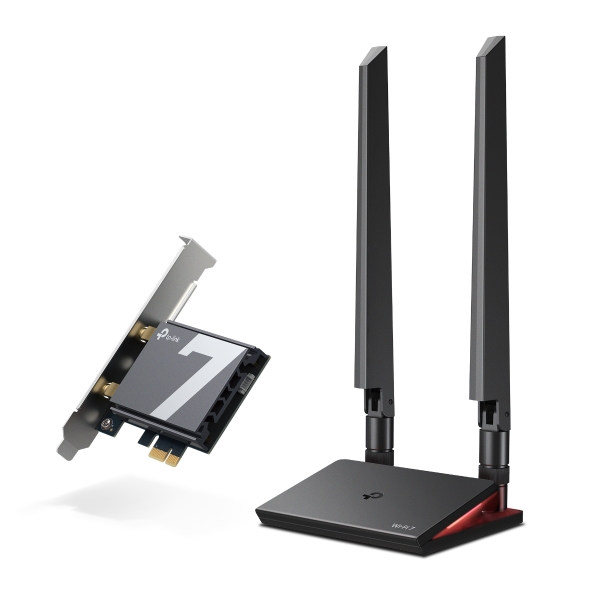

Archer TBE550E

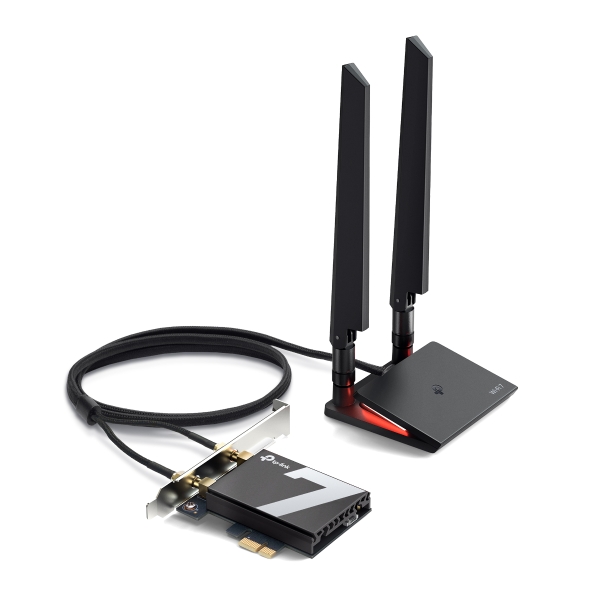

Magnetized Antenna Base with 1 m Braided RF Cable
2× High-Performance Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource USB Drive
|
| System Requirements |
Supported OS: Windows 11 (64-bit) only |
| Operating Temperature |
0℃~40℃ (32℉~104℉) |
| Storage Temperature |
-40℃~70℃ (-40℉~158℉) |
| Operating Humidity |
10%~90% non-condensing |
| Storage Humidity |
5%~90% non-condensing |
| Accessories Specifications |
Extension Cable Length: 1 mBluetooth Header Cable Length: 0.3 m |
