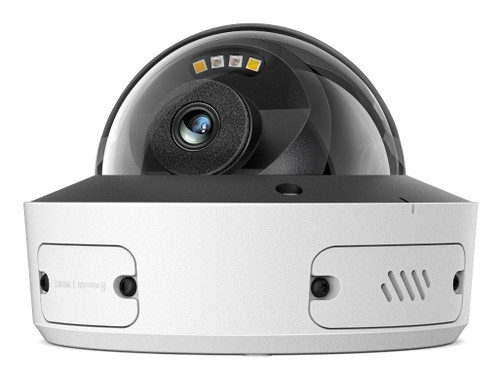

TP-Link InSight S285 outdoor wired ceiling IP security camera with 8 MP resolution and 85 m detection range
TP-Link InSight S285 outdoor wired ceiling IP security camera with 8 MP resolution and 85 m detection range
TP-Link InSight S285 outdoor wired ceiling IP security camera with 8 MP resolution and 85 m detection range
InSight S285 IP camera showing human and vehicle classification alerts for outdoor monitoring
InSight S285 IP camera showing human and vehicle classification alerts for outdoor monitoring
Logo

TP-Link InSight S285, IP security camera, Outdoor, Wired, 85 m, 120 dB, Ceiling

In Stock

UK Free Shipping UK Free Shipping over £249

$299.99 exc. VAT Note: VAT will be charged for UK & EU Countries at checkout. For Zero VAT (for EU buyers), please provide a VAT number at checkout.

Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Dispatch Time: Next Working Day

Product Code: CCEL-312

MPN #: InSight S285(2.8mm)

Imagine never wondering if your home or business is safe after you leave. The TP-Link InSight S285 gives you clear, reliable video so you can see exactly what is happening, even at night. It is an outdoor, wired IP security camera that watches from the ceiling and sends alerts straight to your phone. If you have been worried about blind spots, theft, or vandalism, this camera solves those concerns with sharp 8 MP images and smart detection.



TP-Link InSight S285, IP security camera, Outdoor, Wired, 85 m, 120 dB, Ceiling

Many people install cheap cameras that give blurry pictures or miss motion in low light. That problem makes it hard to trust the footage when an incident occurs. With InSight, you get true wide-dynamic-range, 120 dB contrast and infrared lighting that adapts to distance, so every detail is visible. The camera also classifies humans and vehicles, so you receive only the alerts that matter. In short, it turns a vague worry into a clear, actionable view of your property.



Usages of InSight

The InSight S285 works well on a shop front, a warehouse ceiling, or a residential driveway. Install it under a covered porch to watch deliveries, or mount it on a parking lot roof to monitor cars and pedestrians. It is also ideal for school campuses, where you need to see both people and vehicles clearly. Because it is wired and PoE-compatible, you can place it where power is available and never worry about battery changes.



Benefits
    • Sharp 8 MP color video lets you read license plates and facial features.
    • Smart IR and True WDR keep the picture clear in bright sun or total darkness.
    • Human and vehicle classification reduces false alarms and saves time.
    • H.265+ compression cuts storage needs, so a small microSD card holds weeks of footage.
    • IP67 and IK10 rating protects the camera from rain, dust, and vandalism.



Key Features
    • 8 MP CMOS sensor with 3840 2160 resolution.
    • 120 dB dynamic range for balanced exposure.
    • 85 m detection distance and 133.5 diagonal view.
    • Smart Video Enhancement: True WDR, Smart IR, 3D DNR.
    • Human & vehicle analytics for precise alerts.
    • Two-way audio with built-in microphone and speaker.
    • PoE power (12.3 W) and optional DC input.
    • IP67 waterproof housing and IK10 vandal resistance.
    • H.265+ compression saves up to 57 % bandwidth.
    • Remote live view via web browser or mobile app.
    • Push notifications, password protection, and HTTPS encryption.
    • Supports microSD cards up to 512 GB for local storage.



Specifications
Performance
Dynamic range 120 dB
Remote viewing Yes
Day/night mode Yes
Infrared (IR) cut-off filter Yes
Wide Dynamic Range (WDR) Yes
Maximum operating distance 85 m
Connectivity technology Wired
Placement supported Outdoor
Type IP security camera
Design
Weatherproof Yes
IK code IK10
International Protection (IP) code IP67
Protection features Waterproof
Housing material Metal
Product colour White
Mounting type Ceiling
Form factor Dome
Camera
Camera shutter speed 1/3 to 1/10000
Tilt angle range 0 - 75°
Lens viewing angle, diagonal 133.5°
Lens viewing angle, vertical 58.1°
Lens viewing angle, horizontal 110°
Minimum illumination 0 lx
Image sensor
Progressive scan Yes
Optical sensor size 25.4 / 2.7 mm (1 / 2.7")
Sensor type CMOS
Lens system
Fixed focal length 2.8 mm
Identify distance 8 m
Maximum aperture number 1.6
Fixed focus Yes
Recognize distance 17 m
Observe distance 35 m
Detect distance 85 m
Night vision
LED type IR/White
Night vision Yes
Video
Back Light Compensation (BLC) Yes
Bit rate Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR) Yes
Highlight Compensation (HLC) Yes
Image quality adjustment Brightness, Contrast, Mirror, Saturation, Sharpness
Video recording Yes
Supported graphics resolutions 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520, 3840 x 2160
Video compression formats H.264, H.264+, H.265, H.265+
Total megapixels 8 MP
Maximum resolution 3840 x 2160 pixels
Audio
Bit rate range 0 - 64 Kbit/s
Built-in microphone Yes
Number of microphones 1
Sample rate 8 kHz
Audio formats supported G.711 A-law
Audio output channels 1.0 channels
Audio input channels 1.0 channels
Audio system 2-way
Built-in speaker(s) Yes
Network
Live view Yes
Supported network protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Networking standards IEEE 802.3af, IEEE 802.3at
Bluetooth No
Wi-Fi No
Ethernet LAN Yes
Storage
Maximum memory card size 512 GB
Compatible memory cards MicroSD (TransFlash)
Ports & interfaces
DC-in jack Yes
Ethernet LAN (RJ-45) ports 1
Security
Alert notification type Push notification
Detection distance 85 m
Digest authentication Yes
HTTPS encryption Yes
Human and vehicle targets classification Yes
IP address filtering Yes
Intelligent Video Surveillance (IVS) system features Abnormal sound detection, Crossing line, Human detection, Intrusion, Line crossing detection, Moving object, Region entrance detection, Region exiting detection, Scene change, Vehicle detection
Mirror Yes
Motion sensor Yes
Video motion detection Yes
Password protection Yes
Built-in siren Yes
Management features
Reset button Yes
Cloud-managed Yes
Web browser Yes
Web-based management Yes
Power
DC output voltage 12
Power consumption (Power over Ethernet (PoE)) 12.3 W
Power consumption (max) 11 W
Power source type DC, PoE
Operational conditions
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -40 - 60 °C
Operating temperature (T-T) -30 - 60 °C
Weight & dimensions
Weight 620 g
Height 89 mm
Depth 122 mm
Width 122 mm
Supplier features
Manufacturer TP-Link
Packaging content
Manual Yes
Number of cameras 1
Other features
Maximum resolution 3840 x 2160 pixels
