TP-Link INSIGHT S345-4G outdoor wired IP security camera
TP-Link INSIGHT S345-4G outdoor wired IP security camera
TP-Link S345-4G weatherproof security camera wall mounted

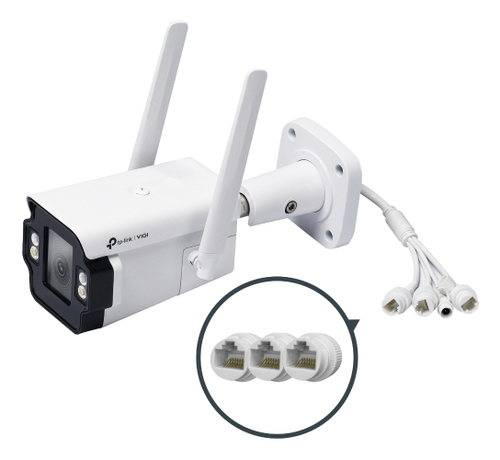

TP-Link INSIGHT S345-4G 4MP outdoor surveillance camera
TP-Link INSIGHT S345-4G 4MP outdoor surveillance camera
TP-Link S345-4G security camera with night vision and 4G
Logo

TP-Link INSIGHT S345-4G IP security camera Outdoor Wired 80 m, External, 120 dB

UK Free Shipping UK Free Shipping over £249


Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: CCEL-097

MPN #: INSIGHT S345-4G(4MM)

Tired of blind spots and missed alerts? The TP-Link INSIGHT S345-4G is a rugged outdoor camera that keeps an eye on your property 24/7. It connects by wired Ethernet and 4G, so you get live video even where Wi-Fi is weak. If you worry about thieves, vandals, or a storm damaging your home, this camera gives you clear, full-color footage and instant alerts. INSIGHT technology makes the system easy to set up and manage from any phone.



TP-Link INSIGHT S345-4G IP security camera Outdoor Wired 80 m, External, 120 dB

Many small businesses and homes lack a reliable video system that works without a stable internet line. Without clear footage, a break-in can go unnoticed, insurance claims become harder, and peace of mind disappears. The S345-4G solves this by offering three LAN ports for power, data and a solar link, plus a built-in 4G modem that stays online even when the network drops. Its 120 dB dynamic range captures bright sunlight and deep shadows in the same frame, while the LightPro night vision switches to white light for color detail when people or cars are detected. The result is a camera that never misses a critical moment, no matter the weather or lighting.



Benefits
    • Clear 4MP color video day and night for better identification.
    • 4G backup keeps you online even if Wi-Fi fails.
    • Three LAN ports let you add solar power or extra devices.
    • Human and vehicle detection reduces false alarms.
    • Built-in siren and two-way audio lets you warn intruders instantly.



Usages

Use the camera to watch a front door, a warehouse loading dock, a parking lot, or a remote cabin. It works well for homeowners who want to see who is at the gate, for shop owners monitoring deliveries, for schools checking playground safety, and for farms protecting livestock pens. The weather-proof IP66 housing handles rain, dust and extreme temperatures, so you can trust it in any outdoor setting.



Key Features
    • 4MP full-color sensor with 2688 1520 resolution.
    • 120 dB wide dynamic range for balanced bright and dark areas.
    • LightPro night vision that switches between IR and white light.
    • True WDR and Smart IR for clear images in high contrast.
    • 3 LAN ports (data, PoE, solar) for flexible power options.
    • Built-in 4G LTE modem with NanoSIM slot for cellular backup.
    • Human and vehicle classification for smarter alerts.
    • Two-way audio with microphone and speaker for remote communication.
    • H.265+ compression saves up to 57 % storage space.
    • IP66 metal housing rated for -30 C to 60 C operation.



Specifications
Performance
Dynamic range 120 dB
Antenna type External
Antennas quantity 2
Remote viewing Yes
Day/night mode Yes
Infrared (IR) cut-off filter Yes
Wide Dynamic Range (WDR) Yes
Maximum operating distance 80 m
Connectivity technology Wired
Placement supported Outdoor
Type IP security camera
Design
Weatherproof Yes
International Protection (IP) code IP66
Protection features Waterproof
Housing material Metal
Product colour White
Mounting type Wall
Form factor Bullet
Camera
Camera shutter speed 1/3 to 1/10000
Tilt angle range 0 - 90°
Lens viewing angle, diagonal 98.7°
Lens viewing angle, vertical 41.8°
Lens viewing angle, horizontal 80.4°
Minimum illumination 0 lx
Image sensor
Progressive scan Yes
Optical sensor size 25.4 / 2.7 mm (1 / 2.7")
Sensor type CMOS
Lens system
Fixed focal length 4 mm
Identify distance 8 m
Maximum aperture number 1.6
Fixed focus Yes
Recognize distance 16 m
Observe distance 33 m
Detect distance 80 m
Night vision
LED type IR/White
Night vision Yes
Video
Back Light Compensation (BLC) Yes
Bit rate Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 64 Kbps to 512 Kbps
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR) Yes
Highlight Compensation (HLC) Yes
Image quality adjustment Brightness, Contrast, Mirror, Saturation, Sharpness
Video recording Yes
Supported graphics resolutions 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520
Video compression formats H.264, H.264+, H.265, H.265+
Total megapixels 4 MP
Maximum resolution 2688 x 1520 pixels
Audio
Bit rate range 0 - 64 Kbit/s
Built-in microphone Yes
Number of microphones 1
Sample rate 8 kHz
Audio formats supported G.711 A-law
Audio output channels 1.0 channels
Audio input channels 1.0 channels
Audio system 2-way
Built-in speaker(s) Yes
Network
Live view Yes
4G standard LTE-TDD & LTE-FDD
Mobile network generation 4G
SIM card slot Yes
SIM card type NanoSIM
Supported network protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Bluetooth No
Wi-Fi No
Ethernet LAN Yes
Storage
Maximum memory card size 512 GB
Compatible memory cards MicroSD (TransFlash)
Ports & interfaces
DC-in jack Yes
Ethernet LAN (RJ-45) ports 3
Security
Alert notification type Push notification
Detection distance 120 m
Digest authentication Yes
HTTPS encryption Yes
Human and vehicle targets classification Yes
IP address filtering Yes
Mirror Yes
Motion sensor Yes
Video motion detection Yes
Password protection Yes
Built-in siren Yes
Management features
Reset button Yes
Cloud-managed Yes
Web browser Yes
Web-based management Yes
Power
DC output voltage 12
Power consumption (Power over Ethernet (PoE)) 10.7 W
Power consumption (max) 9.7 W
Power source type DC
Operational conditions
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -40 - 60 °C
Operating temperature (T-T) -30 - 60 °C
Weight & dimensions
Weight 1.09 kg
Length 256 mm
Height 101 mm
Width 122 mm
Supplier features
Manufacturer TP-Link
Packaging content
Manual Yes
Drilling template included Yes
Screws included Yes
Mounting kit Yes
Number of cameras 1
Other features
Maximum resolution 2688 x 1520 pixels
