Keeping a large outdoor area safe can be hard. Blind spots let people move unseen, and installing many cheap cameras quickly becomes expensive and messy. When you cannot see the whole space, theft, vandalism, or accidents are more likely to happen. The TP-Link InSight S485PI solves this by giving you a single 8 MP panoramic camera that covers 180 with clear 4K detail, so you watch every corner without extra hardware.

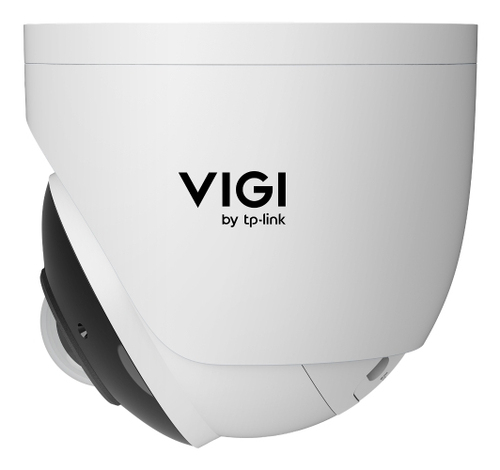

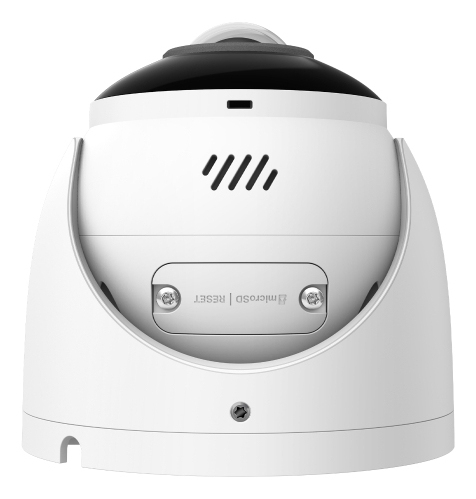

TP-Link InSight S485PI Outdoor IP Security Camera Wired Wall Mount 44m 120dB with InSight
Imagine one camera that replaces a whole wall of lenses. This wired outdoor turret mounts on a wall and watches up to 44 m away, even in total darkness. It uses InSight AI to spot people and vehicles, then triggers red-blue flashing lights and a 120 dB siren to scare intruders away. If something moves, you get an instant push alert on your phone, letting you act before damage occurs.
Usages
The camera fits well at store entrances, parking lots, school playgrounds, and warehouse aisles. It can guard a hotel lobby where many guests pass, monitor a factory gate where trucks arrive, or keep an outdoor patio safe after dark. Because it works with PoE, you only need one cable for power and data, making installation fast in any outdoor setting.
Benefits
- One camera covers a wide area, saving money on multiple units.
- Clear 4K images let you read license plates and facial features.
- Instant alerts and loud siren stop threats before they grow.
- Night vision and Smart IR keep the view sharp in total darkness.
- Easy remote viewing from any phone or computer gives peace of mind.
Key Features
- 8 MP 4K sensor with 180 panoramic view.
- True WDR and Smart IR for balanced lighting day and night.
- Active Defense with red-blue flashing lights and 120 dB siren.
- VIGI AI detection separates people, vehicles, and animals.
- H.265+ compression saves up to 57 % storage space.
- IP67 waterproof metal housing for harsh weather.
- Audio In/Out and Alarm ports for external system integration.
- PoE power (21 W) simplifies wiring.
- MicroSD slot supports up to 512 GB for local recording.
- Push notifications and mobile app for real-time monitoring.
- Built-in two-way speaker and microphone for voice alerts.
- Secure HTTPS, digest authentication, and IP filtering.
Specifications
| Performance |
| Dynamic range |
120 dB |
| Remote viewing |
Yes |
| Day/night mode |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Maximum operating distance |
44 m |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
| Weatherproof |
Yes |
| International Protection (IP) code |
IP67 |
| Protection features |
Waterproof |
| Housing material |
Metal |
| Product colour |
White |
| Mounting type |
Wall |
| Form factor |
Turret |
| Camera |
| Camera shutter speed |
1/3 to 1/10000 |
| Tilt angle range |
0 - 90° |
| Lens viewing angle, diagonal |
180° |
| Lens viewing angle, vertical |
86° |
| Lens viewing angle, horizontal |
180° |
| Minimum illumination |
0 lx |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.7 mm (1 / 2.7") |
| Sensor type |
CMOS |
| Panoramic camera |
| Sensor type (panoramic camera) |
CMOS |
| Lens system |
| Fixed focal length |
1.65 mm |
| Identify distance |
4.4 m |
| Maximum aperture number |
2 |
| Fixed focus |
Yes |
| Recognize distance |
8.8 m |
| Observe distance |
18.33 m |
| Detect distance |
44 m |
| Night vision |
| LED type |
IR/White |
| Night vision |
Yes |
| Video |
| Back Light Compensation (BLC) |
Yes |
| Bit rate |
Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 1024 Kbps |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) |
Yes |
| Highlight Compensation (HLC) |
Yes |
| Image quality adjustment |
Brightness, Contrast, Mirror, Saturation, Sharpness |
| Video recording |
Yes |
| Supported graphics resolutions |
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520, 2880 x 1620, 3840 x 2160 |
| Video compression formats |
H.264, H.264+, H.265, H.265+ |
| Total megapixels |
8 MP |
| Maximum resolution |
3840 x 2160 pixels |
| Audio |
| Bit rate range |
0 - 64 Kbit/s |
| Built-in microphone |
Yes |
| Number of microphones |
1 |
| Sample rate |
8 kHz |
| Audio formats supported |
G.711 A-law |
| Audio output channels |
1.0 channels |
| Audio input channels |
1.0 channels |
| Audio system |
2-way |
| Built-in speaker(s) |
Yes |
| Network |
| Live view |
Yes |
| SIM card slot |
Yes |
| SIM card type |
MicroSIM |
| Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Networking standards |
IEEE 802.3at |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Maximum memory card size |
512 GB |
| Compatible memory cards |
MicroSD (TransFlash) |
| Ports & interfaces |
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Alert notification type |
Push notification |
| Detection distance |
120 m |
| Digest authentication |
Yes |
| HTTPS encryption |
Yes |
| Human and vehicle targets classification |
Yes |
| IP address filtering |
Yes |
| Mirror |
Yes |
| Motion sensor |
Yes |
| Video motion detection |
Yes |
| Password protection |
Yes |
| Built-in siren |
Yes |
| Management features |
| Reset button |
Yes |
| Cloud-managed |
Yes |
| Web browser |
Yes |
| Web-based management |
Yes |
| Power |
| DC output voltage |
12 |
| Power consumption (Power over Ethernet (PoE)) |
21 W |
| Power consumption (max) |
18 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating temperature (T-T) |
-30 - 60 °C |
| Weight & dimensions |
| Weight |
760 g |
| Height |
110.2 mm |
| Depth |
112.3 mm |
| Width |
112.3 mm |
| Supplier features |
| Manufacturer |
TP-Link |
| Packaging content |
| Manual |
Yes |
| Drilling template included |
Yes |
| Screws included |
Yes |
| Mounting kit |
Yes |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
3840 x 2160 pixels |
