TP-Link InSight S655I indoor fisheye security camera ceiling mount
TP-Link InSight S655I indoor fisheye security camera ceiling mount

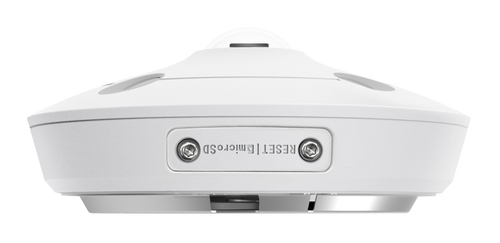

TP-Link InSight S655I 360 degree indoor IP security camera view
TP-Link InSight S655I 360 degree indoor IP security camera view
TP-Link InSight S655I wired dome security camera wall installation
Logo

TP-Link InSight S655I Indoor IP Security Camera Wired 120dB WDR Ceiling /Wall

UK Free Shipping UK Free Shipping over £249


Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Product Code: CCEL-101

MPN #: INSIGHT S655I

Imagine never missing a single movement in your home or office because the camera can see everything at once. The TP-Link InSight S655I Indoor IP Security Camera Wired 120dB WDR Ceiling /Wall is a fisheye camera that gives you a full 360 view with one device. If you struggle with blind spots, tangled wires, or low-light footage, this camera solves those problems and lets you watch every corner in clear detail. The InSight technology makes security simple and reliable.



TP-Link InSight S655I Indoor IP Security Camera Wired 120dB WDR Ceiling /Wall

Many users install several cameras to cover a room, but gaps remain and the cost adds up. Missing a corner can mean a missed alert, and low-light scenes become useless. This camera removes those gaps with a single 180 lens that acts like four cameras in PTZ mode. It also balances bright and dark areas with 120 dB Wide Dynamic Range, so you get a clear picture day or night. The result is full coverage, fewer devices, and peace of mind.



Usages of InSight

You can mount the camera on a ceiling or a wall in a living room to watch family activities. It works well in a small office to monitor workstations without blind spots. Place it in a hallway to catch anyone entering or leaving. The device also fits retail stores, showing every aisle from one point. Because it supports PoE, you can install it where power outlets are limited.



Benefits
    • One camera replaces four, saving money and space.
    • True WDR keeps details visible in bright and dark zones.
    • Smart IR adjusts night vision to avoid glare.
    • H.265+ compression reduces storage needs by more than half.
    • Two-way audio lets you hear and speak through the device.



Key Features
    • 360 fisheye view with 4-in-1 PTZ mode.
    • 120 dB Wide Dynamic Range for balanced lighting.
    • Smart IR with four LEDs for clear night vision up to 10 m.
    • 5 MP sensor delivering up to 2560 1920 resolution.
    • H.265+ compression saves bandwidth and storage.
    • IP67 waterproof housing and IK10 vandal proof rating.
    • PoE and DC power options for flexible installation.
    • MicroSD slot supports up to 512 GB.
    • Motion detection with email and push alerts.
    • Two-way audio with built-in microphone and speaker.



Specifications
Performance
Certification CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF
Dynamic range 120 dB
Day/night mode Yes
Infrared (IR) cut-off filter Yes
Wide Dynamic Range (WDR) Yes
Connectivity technology Wired
Placement supported Indoor
Type IP security camera
Design
Weatherproof Yes
IK code IK10
International Protection (IP) code IP67
Protection features Weatherproof
Housing material Metal
Product colour White
Mounting type Ceiling/wall
Camera
Number of Privacy masking areas 4
Camera shutter speed 1/3 - 1/10000 s
Lens viewing angle, diagonal 180°
Lens viewing angle, vertical 180°
Lens viewing angle, horizontal 180°
Minimum illumination 0 lx
Image sensor
Progressive scan Yes
Optical sensor size 25.4 / 2.7 mm (1 / 2.7")
Sensor type CMOS
Panoramic camera
Digital Wide Dynamic Range (DWDR) (panoramic camera) Yes
Signal-to-Noise Ratio (SNR) (panoramic camera) 52 dB
Sensor type (panoramic camera) CMOS
Lens system
Fixed focal length 1.44 mm
Identify distance 2.8 m
Maximum aperture number 2
Recognize distance 5.7 m
Observe distance 12 m
Detect distance 28.8 m
Night vision
Infra-red wavelength 850 nm
Number of illumination LEDs 4
LED type IR
Night vision distance 10 m
Night vision Yes
Video
Back Light Compensation (BLC) Yes
Bit rate 64 Kbps to 6 Mbps
Bit rate control Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR) Yes
Highlight Compensation (HLC) Yes
Image quality adjustment Brightness, Contrast, Saturation, Sharpness
Region of Interest (ROI) encoding Yes
Smart IR Yes
Noise reduction technology 3D noise reduction
Video streaming Yes
Frame rate 30 fps
Supported graphics resolutions 320 x 240, 640 x 480 (VGA), 1280 x 960, 2048 x 1536 (QXGA), 2560 x 1920
Video compression formats H.264, H.264+, H.265, H.265+
Total megapixels 5 MP
Maximum resolution 2560 x 1920 pixels
Audio
Bit rate range 0 - 64 Kbit/s
Built-in microphone Yes
Number of microphones 1
Signal-to-Noise Ratio (SNR) 52 dB
Sample rate 8 kHz
Audio system 2-way
Built-in speaker(s) Yes
Network
Client interoperability Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Number of simultaneous live view channels 6 channels
Supported network protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Ethernet interface type Fast Ethernet
Bluetooth No
Wi-Fi No
Ethernet LAN Yes
Storage
Maximum memory card size 512 GB
Compatible memory cards MicroSD (TransFlash)
Card reader integrated Yes
Built-in HDD No
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Security
Alert notification type E-mail, Push notification
Digest authentication Yes
HTTPS encryption Yes
IP address filtering Yes
Motion sensor Yes
Privacy protection Yes
Video motion detection Yes
Password protection Yes
Management features
Reset button Yes
Cloud-managed Yes
Web browser Yes
Power
DC output voltage 12
Power consumption (Power over Ethernet (PoE)) 12.14 W
Power consumption (max) 11.76 W
Power source type DC, PoE
Operational conditions
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -40 - 60 °C
Operating temperature (T-T) -30 - 60 °C
Weight & dimensions
Weight 440 g
Diameter 13.2 cm
Height 56 mm
Supplier features
Manufacturer TP-Link
Packaging content
Number of cameras 1
Other features
Maximum resolution 2560 x 1920 pixels
Technical details
Lens mount interface M12
