Ideal for Surveillance

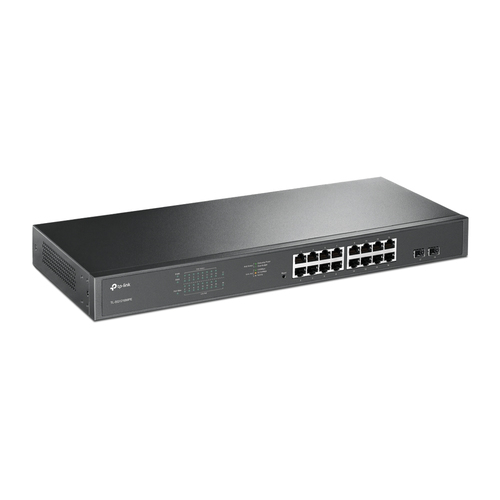

TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.
Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.
Specifications
| Management features |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| SFP module slots quantity |
2 |
| Gigabit Ethernet (copper) ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
| Number of VLANs |
32 |
| Virtual LAN features |
Port-based VLAN |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Broadcast storm control |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Optical fiber |
| Fiber ethernet cabling technology |
1000BASE-X |
| Data transmission |
| Packet buffer memory |
4.1 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Number of queues |
4 |
| Store-and-forward |
Yes |
| Forwarding rate |
23.8 Mpps |
| Switching capacity |
36 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| Loop protection |
Yes |
| Security algorithms |
SNMP, SNMPv2, SNMPv3 |
| IGMP snooping |
Yes |
| Design |
| Number of fans |
2 fan(s) |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
| Power consumption (max) |
217.22 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
192 W |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Heat dissipation |
741.15 BTU/h |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
180 mm |
| Width |
440 mm |
| Packaging content |
| Rack mount kit |
Yes |
| User guide |
Yes |
| Cables included |
AC |
| Packaging data |
| Package weight |
2.91 kg |
| Package height |
80 mm |
| Package depth |
528 mm |
| Package width |
250 mm |
| Certificates |
| Certification |
CE, FCC, RoHS |
