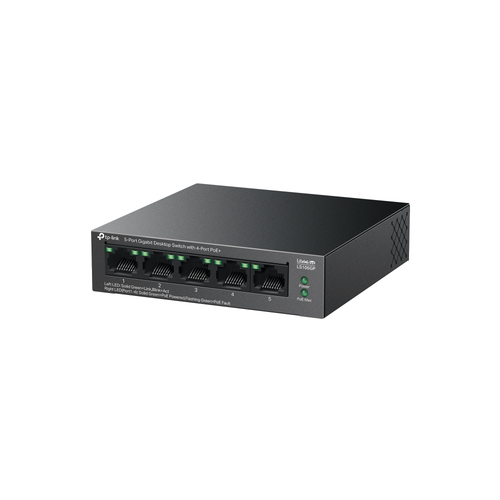

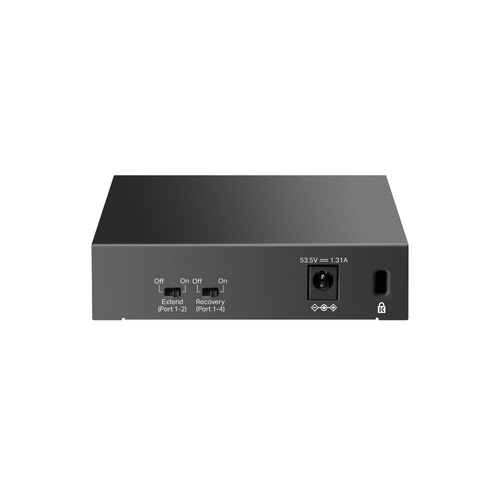

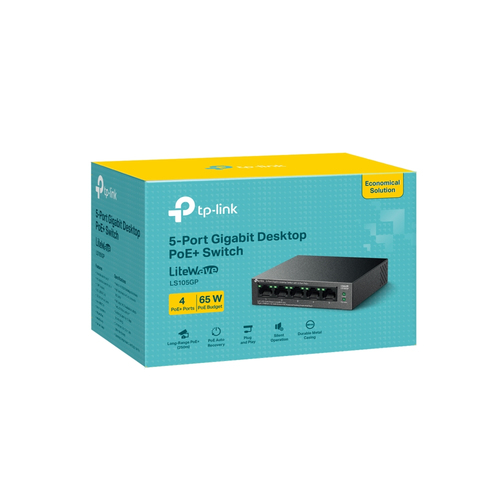

TP-Link LiteWave, 5-Port with 4-Port PoE+, Gigabit Unmanaged Desktop Switch
TP-Link LiteWave, 5-Port with 4-Port PoE+, Gigabit Unmanaged Desktop Switch
TP-Link LiteWave, 5-Port with 4-Port PoE+, Gigabit Unmanaged Desktop Switch
TP-Link LiteWave, 5-Port with 4-Port PoE+, Gigabit Unmanaged Desktop Switch
TP-Link LiteWave, 5-Port with 4-Port PoE+, Gigabit Unmanaged Desktop Switch
Logo

TP-Link LiteWave, 5-Port with 4-Port PoE+, Gigabit Unmanaged Desktop Switch

In Stock

UK Free Shipping UK Free Shipping over £249

$54.99 exc. VAT Note: VAT will be charged for UK & EU Countries at checkout. For Zero VAT (for EU buyers), please provide a VAT number at checkout.

Buy 5 or More Units - Unlock Priority Discounts!
Buy 20 or More Units - Get Exclusive Volume Discounts!


Also Support: Google & Apple Pay

Are you a reseller or placing a large order?
We're happy to offer Special Pricing tailored to your needs.
Click "Request Quote" or email us at [email protected] to get your best price today!

Add to Wishlist

Compare

Dispatch Time: Next Working Day

Product Code: SWHO-162

MPN #: LS105GP

Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.



Specifications
Management features
Quality of Service (QoS) support Yes
Switch type Unmanaged
Ports & interfaces
Installed SFP+ modules quantity 0
Installed SFP modules quantity 0
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 5
Network
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Flow control support Yes
MAC address auto-aging supported Yes
MAC address auto-learning supported Yes
Cable types supported Cat3, Cat5e, Cat4, Cat5
10G support No
Networking standards IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Data transmission
Jumbo frames 16000
Store-and-forward Yes
Forwarding rate 7.44 Mpps
Switching capacity 10 Gbit/s
MAC address table 2000 entries
Security
IGMP snooping Yes
Design
LED indicators Yes
Product colour Black
Power
Power consumption (max) 74.46 W
DC input voltage 53.5 V
AC input frequency 50 Hz
AC input voltage 220 V
Power supply included Yes
Power source DC/PoE
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 65 W
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet (PoE) ports quantity 4
Power over Ethernet (PoE) Yes
Operational conditions
Heat dissipation 253.16 BTU/h
Operating temperature (T-T) 0 - 40 °C
Storage relative humidity (H-H) 5 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Height 25 mm
Depth 98 mm
Width 99.8 mm
Packaging content
User guide Yes
Packaging data
Package type Box
Certificates
Certification CE, FCC, RoHS
