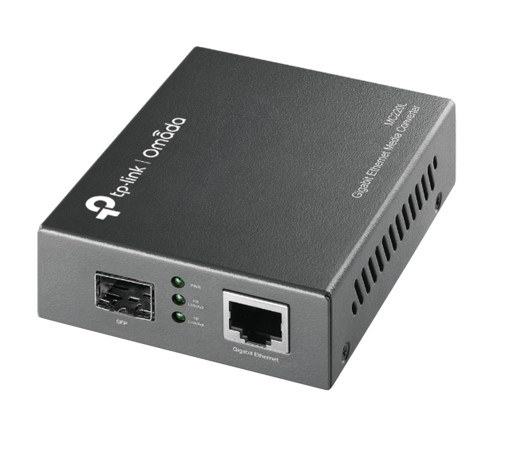

Tp-Link MC220L V4 Gigabit SFP Media Converter

When you need to link a fast-ethernet network to a fiber link, the cables and connectors often become a bottleneck, leaving you with slow transfers and dropped packets. The MC220L Media Converter bridges that gap, turning a 1000BASE-T copper connection into a 1000BASE-X fiber link (or vice-versa) so you can extend your network without replacing existing equipment. It follows IEEE 802.3 standards and automatically negotiates half- or full-duplex modes, giving you reliable, high-speed connectivity wherever you need it.

Seamless conversion with the MC220L media converter

Many small offices and remote sites struggle with limited cable runs and the need for both copper and fiber interfaces. Without a proper converter, you may face costly rewiring or unreliable connections that affect video calls, data backups, and cloud access. The MC220L solves this by offering a single device that supports one 1000M SFP port and one 10/100/1000M RJ45 port with Auto MDI/MDIX, allowing you to connect any standard Ethernet cable or fiber module and let the unit handle the rest. Its auto-negotiation ensures optimal speed and duplex settings, so you get a stable link without manual configuration.

Usages

The MC220L fits into a variety of network scenarios. Use it to connect a switch in a server room to a fiber backbone, link two buildings over a long distance, or add fiber capability to a legacy copper-only device. It works equally well in:

• Office LAN extensions
• Surveillance camera installations
• Industrial control networks
• Temporary event networking

Benefits

You get a hassle-free upgrade path that protects your existing cabling investment while adding the speed and distance of fiber. The built-in LED indicators (Power, Link, Activity) let you see at a glance whether the connection is alive and transferring data. With a low power draw of just 1.7 W, the unit runs cool and quiet, reducing heat in tight racks. Its compact size-3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm)-means it fits easily on a shelf or wall mount. Finally, compliance with FCC, CE, and RoHS standards gives you confidence that the device meets safety and environmental regulations.

Key Features

• Auto-negotiation of half-/full-duplex - selects the best mode without user setup.
• 1 × 1000M SFP port - accepts multi-mode or single-mode SFP modules for flexible fiber options.
• 1 × 10/100/1000M RJ45 port with Auto MDI/MDIX - plug in any Ethernet cable, no crossover needed.
• Transmission distance depends on the inserted SFP module - scale your link length as required.
• LED indicators for power, link and activity - quick visual status check.
• External power adapter, 1.7 W max consumption - easy to install with minimal heat.
• FCC, CE, RoHS certified - meets global safety and emission standards.

Package includes the MC220L media converter, a power adapter and a short installation guide, giving you everything needed to get your network up and running quickly.
