Imagine a remote site that never gets a stable internet line. You need fast, reliable connectivity but wiring is impossible. The TP-Link Omada 5G Outdoor Gateway, IP66 Waterproof Wall mounting White brings 5G speed to places where cables cannot reach. It solves the frustration of dropped connections and slow downloads, giving you a solid link for work, video, or security cameras. The Omada system makes the setup simple and the performance strong.

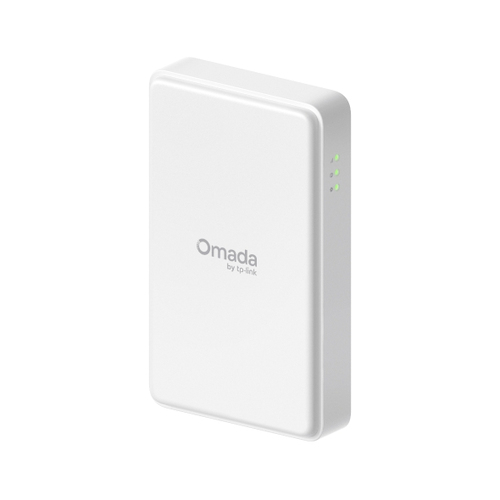

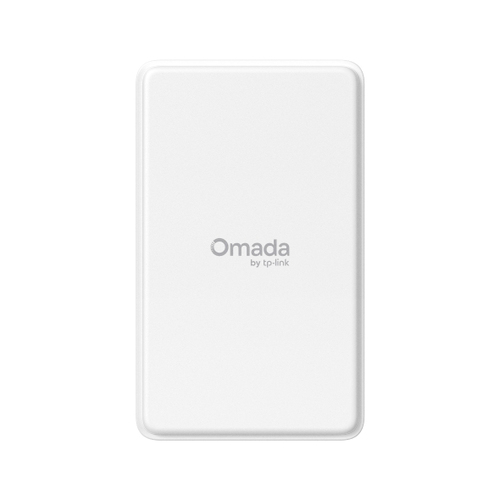

TP-Link Omada 5G Outdoor Gateway, IP66 Waterproof Wall mounting White
Many businesses and field projects suffer when wired broadband is not an option. Without a reliable link, data cannot move, staff cannot work, and cameras cannot record. This problem matters because lost data means lost revenue and safety risks. The Omada outdoor gateway delivers up to 7.01 Gbps 5G speed, protects itself with an IP66 seal, and can be mounted on a wall or pole. It gives you a clear, fast, and weather-proof connection wherever you need it.
Key Features
- Peak download speed of 7.01 Gbps and upload speed of 1.25 Gbps.
- Nine high-gain internal cellular antennas for strong signal.
- Quad-core 2.2 GHz CPU handles many sessions with low latency.
- 1 2.5 G RJ45 PoE port for easy power and data delivery.
- Dual nano-SIM slots enable carrier redundancy.
- Deep Packet Inspection and IP-based access control for security.
- Supports 5G, 4G LTE, and 3G networks across many frequency bands.
- Built-in Wi-Fi antenna provides 2.4 GHz coverage up to 150 Mbps.
- Wall, pole, or window mounting options for flexible placement.
- LED indicators show system status, network type, and signal strength.
Specifications
| 5G/4G/3G |
|
| Network Mode |
5G NR:N1/N3/N5/N7/N8/N20/N26/N28/N38/N40/N41/N75/N76/N77/N78 (2100/1800/850/2600/900/800/850/700/2600/2300/2500/1500/1450/3700/3500 MHz)
4G FDD-LTE: B1/B3/B5/B7/B8/B20/B26/B28/B32 (2100/1800/850/2600/900/800/850/700/1500 MHz)
4G TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)
3G WCDMA: B1/B5/B8 (2100/850/900 MHz)
|
| Speed |
5G NR Speed
• SA: Downlink: 7.01 Gbps, Uplink: 1.25 Gbps
• NSA: Downlink: 4.5 Gbps, Uplink: 730 MbpsLTE Speed
• Downlink: 1.6 Gbps, Uplink: 211 Mbps
|
| SIM Type |
Dual Nano SIM |
| SECURITY |
|
| DPI |
Deep Packet Inspection |
| Access Control |
Source/Destination IP Based Access Control |
| Filtering |
• Web Group Filtering (only in Standalone Mode), URL Filtering, Web Security (only in Standalone Mode) |
| ARP Inspection |
• Sending GARP Packets, ARP Scanning (only in Standalone Mode), IP-MAC Binding |
| Attack Defense |
• TCP/UDP/ICMP Flood Defense, Block TCP Scan (Stealth FIN/Xmas/Null), Block Ping from WAN |
| PERFORMANCE |
|
| Concurrent Session |
500, 000 |
| New Sessions /Second |
6,100 |
| HARDWARE FEATURES |
|

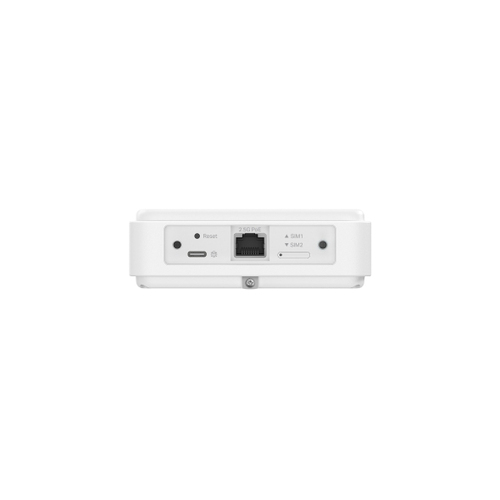

| Interface |
1×2.5G RJ45 Port |
| Network Media |
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
• 2500BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
|
| Button |
Reset Button |
| Power Supply |
• 802.3at PoE: 42-57V 0.6A
• Passive PoE: 48V 0.375A
|
| Flash |
4GB eMMC Flash |
| DRAM |
2GB LPDDR4x |
| LED |
System, Network Type, Signal Strength |
| Dimensions ( W x D x H ) |
7.2 × 4.3 × 1.4 in (183 × 110 × 36 mm) |
| Antenna |
• 9× internal Cellular antennas
• 1× internal Wi-Fi antenna
|
| SIM Slot |
1×Dual Nano SIM slot |

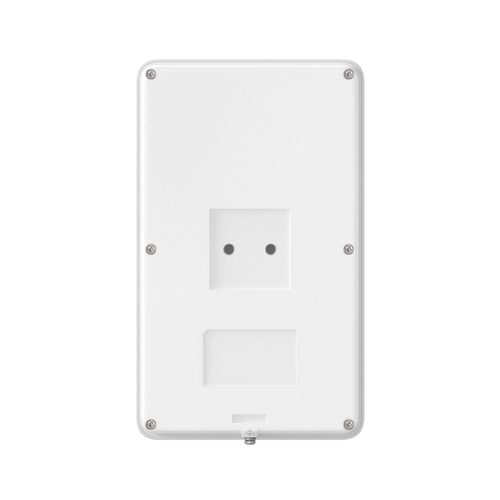

| Mounting |
Wall/Pole/Window Mounting |
| Max. Power Consumption |
15.3W (802.3at PoE or Passive PoE) |
| WIRELESS FEATURES |
|
| Wireless Speeds |
2.4 GHz: 150 Mbps† |
| Wireless |
• 802.11n: 6.5 Mbps to 150 Mbps (MCS0-MCS7, HT20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48 ,54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
|
| Advanced Features |
• Wireless Encryption: WPA/WPA2 Personal• SSID: 1• Enable/Disable Wireless Radio• Enable/Disable SSID Broadcast• Automatic Channel Selection Algorithm• Transmit Power Control: Adjust transmit Power on dBm |
| BASIC FUNCTIONS |
|
| WAN Connection Type |
5G/4G/3G |
| Stateful ACL |
Yes |
| Quality of Service |
Yes |
| Bridge VLAN |
Yes |
| SMS |
Receive / Send SMS |
| VLAN |
802.1Q VLAN |
| Advanced Features |
|
| Bandwidth Control |
IP-based Bandwidth Control |
| Session Limit |
IP-based Session Limit |
