Imagine a backyard where your video call never drops, even when the wind blows. The TP-Link Omada EAP225-Outdoor is a weather-proof Wi-Fi access point that brings fast, reliable internet to any outdoor space. Many users struggle with weak signals outside their home or office, causing frustration and lost productivity. This device solves that problem by delivering 2.4 GHz and 5 GHz bands with up to 1200 Mbit/s speed, so you stay connected wherever you need it.

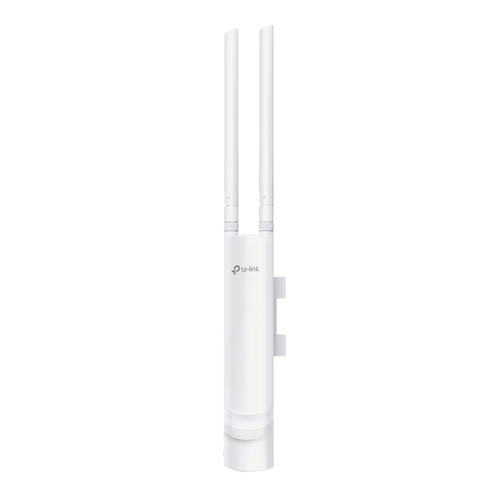

TP-Link Omada EAP225-Outdoor, 2.4 GHz, 5 GHz, 1200 Mbit/s, Wi-Fi Access Point
Outdoor areas often have weak or no Wi-Fi coverage. When you try to stream a movie, work from a garden, or monitor security cameras, the signal drops and the experience suffers. This matters because you lose time, entertainment, and safety. The Omada EAP225-Outdoor fixes the issue by mounting on a pole or wall, using PoE for easy power, and broadcasting dual-band Wi-Fi with beamforming and MU-MIMO. The result is strong, consistent coverage that reaches every corner of your yard, patio, or small business perimeter.
Usages of Omada
You can install the unit on a garden wall to give your family fast internet for video calls and streaming. It works well for coffee shops with outdoor seating, keeping customers online while they enjoy the sun. Small warehouses can use it to connect handheld scanners and IoT sensors. The device also supports security cameras on a balcony, delivering clear video feeds without lag.
Benefits
- Strong signal reaches every corner of your outdoor area, eliminating dead spots.
- Dual-band speeds let you stream HD video and run work apps at the same time.
- Weather-proof design survives rain, heat, and dust, so you never worry about damage.
- PoE power means only one cable is needed for both electricity and data.
- Easy management through the Omada controller keeps settings simple and secure.
Specifications
| Features |
| Transmitting power (CE) |
27 dBm |
| Transmitting power (FCC) |
22 dBm |
| BeamForming |
Yes |
| Quality of Service (QoS) support |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Band steering |
Yes |
| Rate limiting |
Yes |
| Virtual LAN features |
VLAN mapping |
| VLAN support |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Frequency band |
2.4 - 5 GHz |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) |
867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Maximum data transfer rate |
1200 Mbit/s |
| 5 GHz |
Yes |
| 6 GHz |
No |
| 2.4 GHz |
Yes |
| Security |
| Access Control List (ACL) |
Yes |
| Number of SSID supported |
16 |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| MAC address filtering |
Yes |
| Security algorithms |
802.1x RADIUS |
| Management features |
| Syslog |
Yes |
| Web-based management |
Yes |
| Ports & interfaces |
| USB 2.0 ports quantity |
0 |

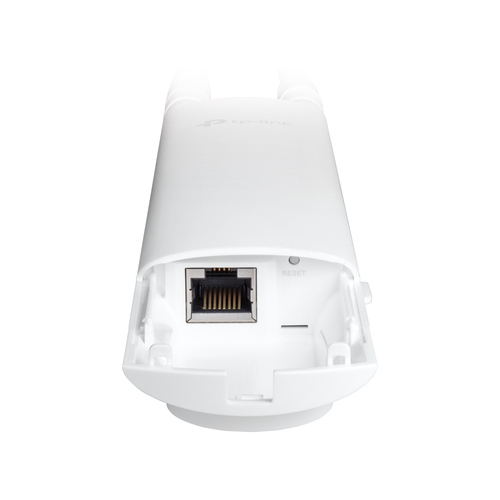

| Ethernet LAN (RJ-45) ports |
1 |
| Power |
| Power consumption (typical) |
10.5 W |
| Output voltage |
24 V |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) type supported |
Passive PoE |
| Design |
| Reset button |
Yes |
| International Protection (IP) code |
IP65 |
| Product colour |
White |
| Placement |
Pole, Wall |
| Antenna |
| Antenna gain level (max) |
4 dBi |
| Antennas quantity |
2 |
| Antenna features |
Detachable antenna |
| Antenna direction type |
Omni-directional |
| Antenna type |
External |
| Performance |
| Compatible operating systems |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Certificates |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Weight & dimensions |
| Height |
27 mm |
| Depth |
46 mm |
| Width |
215 mm |
| Packaging data |
| Package weight |
640 g |
| Package height |
100 mm |
| Package depth |
270 mm |
| Package width |
140 mm |

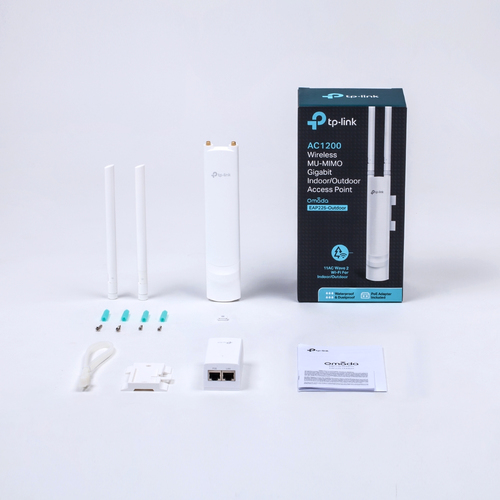

| Packaging content |
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| AC adapter included |
Yes |
| Quantity per pack |
1 pc(s) |
| Other features |
| Operating temperature (T-T) |
-30 - 70 °C |
| Operational conditions |
| Storage relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-30 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Sustainability |
| Sustainability compliance |
Yes |
