What This Product Does

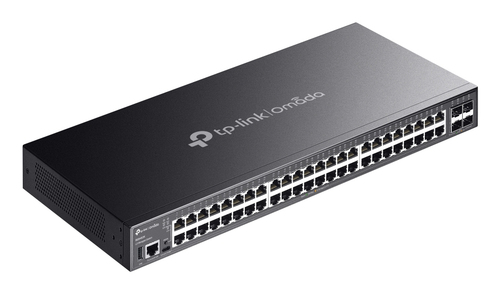

Omada SG5452X is a dependable entry-level L3 switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 48× gigabit RJ45 ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452X offers a reliable networking solution for SMEs, and ISPs.
High-speed Connectivity and Powerful Stacking
48× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 176 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG5452X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Specifications
| Management features |
| ARP inspection |
Yes |
| Cloud-managed |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L3 |
| Switch type |
Managed |
| Ports & interfaces |
| USB 2.0 ports quantity |
1 |
| Console port |
RJ-45 |
| USB Type-C ports quantity |
1 |
| SFP+ module slots quantity |
4 |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Gigabit Ethernet (copper) ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
| Number of VLANs |
4000 |
| Virtual LAN features |
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| VLAN support |
Yes |
| Broadcast storm control |
Yes |
| Link aggregation |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Data transmission |
| Packet buffer memory |
12 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
130.94 Mpps |
| Switching capacity |
176 Gbit/s |
| MAC address table |
16000 entries |
| Security |
| IP-MAC-Port binding |
Yes |
| MAC address filtering |
Yes |
| Password protection |
Yes |
| SSH/SSL support |
Yes |
| Security algorithms |
SNMP, SNMPv2, SNMPv3 |
| Static port security |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP relay, DHCP server |
| Multicast features |
| Multicast support |
Yes |
| Design |
| LED indicators |
Yes |
| Product colour |
Black |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
| Mean time between failures (MTBF) |
211.644 h |
| Fanless |
Yes |
| Firmware upgradeable |
Yes |
| Telnet |
Yes |
| Flash memory |
512 MB |
| Internal memory |
2000 MB |
| Memory type |
DRAM |
| Processor frequency |
1200 MHz |
| Built-in processor |
Yes |
| Processor manufacturer |
ARM |
| Physical stacking (units) |
4 |
| Power |
| Surge protection voltage |
6 kV |
| Surge protection |
Yes |
| Power consumption (max) |
34.1 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Other features |
| Bandwidth |
88 Gbit/s |
| Management level |
4 |
| Operational conditions |
| Heat dissipation |
116.42 BTU/h |
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
-5 - 45 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
220 mm |
| Width |
440 mm |
| Packaging content |
| Rack mount kit |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC |
| Certificates |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
