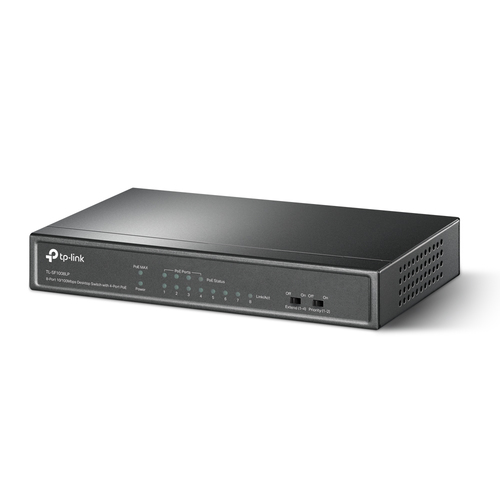

Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1008LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008LP delivers switching performance you can depend on.
Specifications
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Power connector |
DC-in jack |
| Fast Ethernet (copper) ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Flow control support |
Yes |
| MAC address auto-aging supported |
Yes |
| MAC address auto-learning supported |
Yes |
| Full duplex |
Yes |
| Half duplex |
Yes |
| Copper ethernet cabling technology |
10GBASE-T, 100BASE-TX |
| 10G support |
No |
| Networking standards |
IEEE 802.3af, IEEE 802.3x |
| Data transmission |
| Jumbo frames |
2000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
1.1904 Mpps |
| Switching capacity |
1.6 Gbit/s |
| MAC address table |
2000 entries |
| Security |
| DHCP features |
DHCPv6 relay |
| Protocols |
| IPv4 & IPv6 features |
IPv6 portal |
| GARP VLAN Registration Protocol (GVRP) |
Y |
| Routing protocols |
OSPF |
| Design |
| Number of fans |
0 fan(s) |
| Wall mountable |
Yes |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Stackable |
No |
| Rack mounting |
No |
| Performance |
| Fanless |
Yes |
| Power |
| Power consumption (max) |
47.1 W |
| Input current |
0.81 A |
| DC input voltage |
53.5 V |
| AC input frequency |
50 Hz |
| AC input voltage |
220 V |
| Power supply included |
No |
| Power source |
DC/PoE |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
41 W |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) |
Yes |
| Other features |
| Bandwidth |
1.6 Gbit/s |
| Operational conditions |
| Heat dissipation |
160.61 BTU/h |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Height |
27 mm |
| Depth |
98 mm |
| Width |
171 mm |
| Packaging content |
| User guide |
Yes |
| Cables included |
AC |
| Packaging data |
| Package weight |
750 g |
| Package height |
68 mm |
| Package depth |
280 mm |
| Package width |
223 mm |
| AC adapter included |
Yes |
| Sustainability |
| Sustainability compliance |
Yes |
| Certificates |
| Certification |
FCC, CE, RoHS |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
