Your office network keeps lagging when multiple users start video calls, and you cant tell which cable or port is the bottleneck. The lack of visibility turns simple fixes into costly downtime. The TL-SG1024DE brings Gigabit speed and easy management so you can spot problems fast and keep every conversation crystal clear. Within seconds you get traffic monitoring, priority rules and power-saving controls that stop the frustration before it starts.

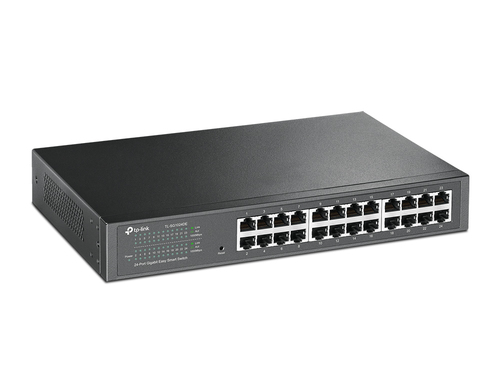

TP-Link (TL-SG1024DE), L2, Gigabit Ethernet Managed Switch
This is a 24-port Ethernet managed switch built for small and medium businesses that need more control than an unmanaged plug-and-play device. This Switch lets you monitor traffic, set QoS rules and separate networks with VLANs, all while fitting into a compact rack or desktop space.
Benefits
- Instantly identify slow or faulty ports with built-in diagnostics.
- Prioritize voice and video so meetings never stutter.
- Reduce electricity bills with automatic power-down on idle ports.
- Secure sensitive data by segmenting traffic with VLANs.
- Simple auto-MDI/MDI-X eliminates the need for crossover cables.
- LED status lights give you a quick visual health check.
Features
- 24 RJ-45 ports, 10/100/1000 Mbps
- Layer-2 managed switching
- Port-based, tag-based and MTU VLANs
- Port mirroring and loop prevention
- Four hardware queues, 4.1 MB buffer
- 48 Gbit/s switching capacity
- Energy-efficient power management
- Rack-mountable, compact 44 mm height
Specifications
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
| Number of VLANs |
32 |
| Auto MDI/MDI-X |
Yes |
| Broadcast storm control |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Rate limiting |
Yes |
| Full duplex |
Yes |
| Port mirroring |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Data transmission |
| Packet buffer memory |
4.1 MB |
| Jumbo frames |
10000 |
| Jumbo frames support |
Yes |
| Number of queues |
4 |
| Store-and-forward |
Yes |
| Throughput |
35.7 Mpps |
| Throughput |
35.7 Mpps |
| Switching capacity |
48 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| IGMP snooping |
Yes |
| Design |
| LED indicators |
Yes |
| Product colour |
Black |
| Rack mounting |
Yes |
| Power |
| Power consumption (typical) |
14.19 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Operational conditions |
| Heat dissipation |
48.39 BTU/h |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
180 mm |
| Width |
294 mm |
| Packaging content |
| Rack mount kit |
Yes |
| User guide |
Yes |
| Cables included |
AC |
| Packaging data |
| Package type |
Box |
| Certificates |
| Certification |
FCC, CE, RoHS |
