Product Code: CCEL-346
MPN #: VIGI C540(4mm)

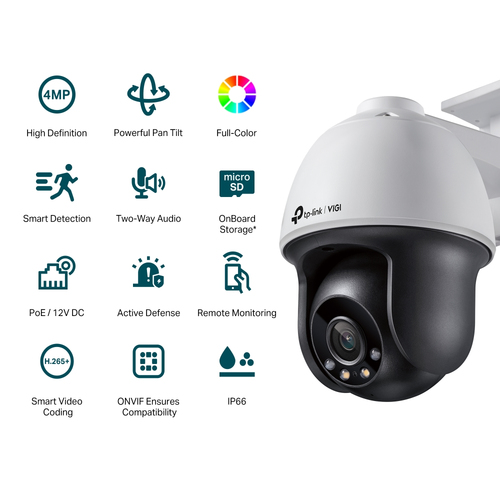

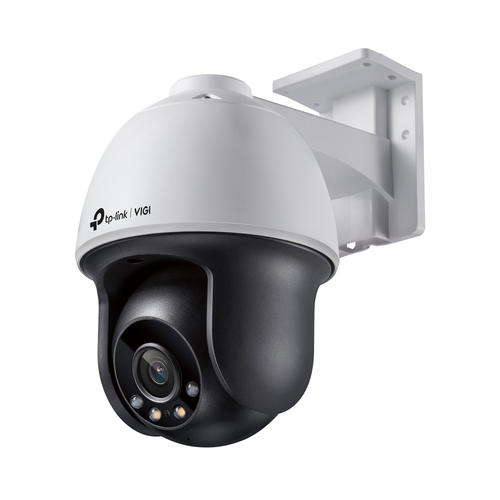

Imagine never worrying about blind spots in your home or business again. The TP-Link VIGI 4MP Wired IP Security Camera Indoor/Outdoor Pan/Tilt Ceiling/Wall gives you full-view coverage with smooth pan and tilt motion. If you have struggled with cameras that miss corners or give fuzzy night images, this camera solves those problems. It brings clear, colorful video to every angle, so you can protect what matters most.

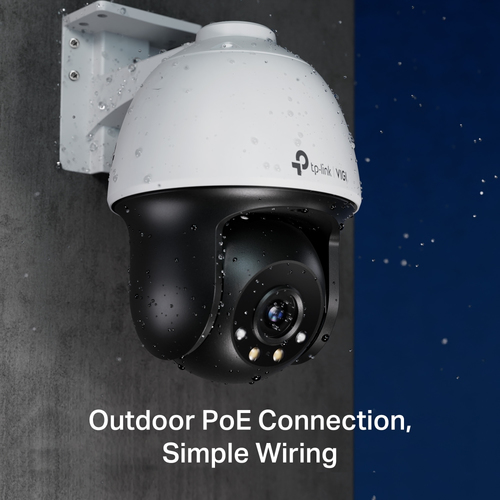

Many users find it hard to watch a large area with a single fixed camera. Gaps in coverage let intruders slip by unnoticed, and poor night vision creates doubt about what really happened. VIGI removes those gaps by letting you set patrol routes, auto-track movement, and switch between wide and zoomed views. The cameras PoE wiring keeps power and data simple, while its IP66 rating protects it from rain, dust, and extreme temperatures. In short, VIGI gives you a reliable, intelligent eye that works day and night.
Mount the camera on a ceiling in a retail store to watch aisles and entrances, or place it on a wall outside a home to monitor driveways and patios. The pan-tilt range works well for parking lots, warehouses, and office lobbies where you need to see both wide areas and specific entry points. Because it runs on PoE, you can install it in locations without nearby power outlets, such as stairwells or outdoor sheds. The built-in microphone and speaker make it useful for intercom needs at front doors or gate entries.
| Performance | |
| Certification | RCM, BSMI, VCCI, NTRA, KC |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Design | |
| International Protection (IP) code | IP66 |
| Housing material | Plastic |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Form factor | Turret |
| Camera | |
| Pan range | 0 - 350° |
| Tilt angle range | 0 - 120° |
| Lens viewing angle, diagonal | 93° |
| Lens viewing angle, vertical | 43° |
| Lens viewing angle, horizontal | 79° |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Sensor type | CMOS |
| Lens system | |
| Lens diameter | 4 mm |
| Zoom capability | Yes |
| Number of lenses | 1 |
| Night vision | |
| LED type | IR |
| Night vision distance | 30 m |
| Night vision | Yes |
| Video | |
| Bit rate | 256 Kbps - 4 Mbps |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Noise reduction technology | 3D noise reduction |
| Noise reduction | Yes |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440 |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Total megapixels | 4 MP |
| Maximum resolution | 2560 x 1440 pixels |
| Audio | |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Network | |
| Live view | Yes |
| Number of simultaneous live view channels | 3 channels |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
| Maximum memory card size | 256 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Intelligent Video Surveillance (IVS) system features | Human detection |
| Mirror | Yes |
| Password protection | Yes |
| Management features | |
| Behavior analysis | Intrusion detection, Line crossing detection |
| Reset button | Yes |
| Power | |
| DC output voltage | 12 |
| Power consumption (Power over Ethernet (PoE)) | 14 W |
| Power source type | PoE |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Weight & dimensions | |
| Height | 198 mm |
| Depth | 172 mm |
| Width | 120 mm |
| Packaging data | |
| Package weight | 950 g |
| Package height | 243 mm |
| Package depth | 213 mm |
| Package width | 163 mm |
| Supplier features | |
| Manufacturer | TP-Link |
| Sustainability | |
| Compliance certificates | CE, RoHS |
| Packaging content | |
| Mounting kit | Yes |
| Number of cameras | 1 |
| Other features | |
| Maximum resolution | 2560 x 1440 pixels |
