Imagine a factory line that stops because the controller cannot show the right status. The TR-Electronic SPCP, AMD G-Series, 7-segment display PLC Controller Board fixes that problem. It is a slot PLC for a PCI-Bus that lets you program and monitor machines with clear numeric displays. If you need reliable control, fast communication and easy diagnostics, this SPCP board is the answer.

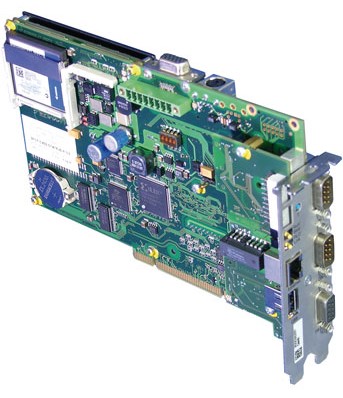

TR-Electronic SPCP, AMD G-Series, 7-segment display PLC Controller Board
Many small to medium automation projects struggle with a controller that cannot handle several fieldbuses at once. That leads to extra wiring, higher cost and more downtime. The SPCP board solves the issue by supporting Profibus-DP, Interbus, CANopen, DeviceNet and fiber optic links on a single card. It gives you a compact, PCI-compatible solution that reduces hardware clutter and lets you program in Siemens S7, S5 or CoDeSys IEC 61131.
Key Features
- Intel Celeron 600 MHz processor for fast execution.
- Up to 256 MB RAM and 128 MB CompactFlash data memory.
- 10/100 Mbit Ethernet and RS-232 (COM1) programming interface.
- USB and VGA output for local monitoring.
- 7-segment display with PLC status, RUN/STOP, LAN and fieldbus LEDs.
- Supports Profibus-DP, Interbus, Fiber Optic, CANopen and DeviceNet.
- Programming in Siemens S7, S5 or CoDeSys IEC 61131.
- IP20 protection with housing and connector installed.
Specifications
| General |
|
| Model |
SPCP |
| Manufacturer |
TRsystems GmbH |
| Product Type |
Slot PLC for PCI-Bus |
| Bus Interface |
PCI-BUS |
| PCI Bus Support |
+3.3 V PCI-BUS Signals |
| Processor & Memory |
|
| Processor |
Intel® Celeron® 600 MHz |
| RAM |
Up to 256 MB |
| Data Memory |
128 MB CompactFlash |
| Fieldbus Support |
|
| Fieldbus (Master) |
Free Selectable |
| Supported Fieldbus |
Profibus-DP |
| |
Interbus |
| |
Fiber Optic |
| |
CANopen |
| |
DeviceNet |
| Interfaces |
|
| Ethernet |
10/100 Mbit Ethernet |
| Serial Port |
COM1 (RS-232) |
| USB |
USB |
| VGA Output |
Yes |
| Keyboard Interface |
PS/2 |
| PCI-BUS |
Yes |
| Programming Interface |
RS-232 or Ethernet |
| Display & Controls |
|
| Display |
7-Segment Display |
| Status Indicators |
PLC Status, RUN/STOP, LAN, Fieldbus |
| Software |
|
| Programming Languages |
Siemens S7® |
| |
Siemens S5® |
| |
CoDeSys IEC 61131 |
| Power |
|
| PCI-BUS Power Supply |
+5 V / 2 A |
| Optional External Power Supply |
+12 V / 1 A |
| Optional External Power Supply |
+24 V / 0.5 A |
| Environmental |
|
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-20°C to +70°C |
| Relative Humidity |
98% RH (Non-Condensing) |
| Protection Class |
IP20 (with housing and connector installed) |
| Mechanical |
|
| Dimensions |
211 × 142.8 × 41.7 mm (Profibus, Interbus, DeviceNet Versions) |
| Fiber Optic Version Depth |
64.45 mm |
| Cooling Element Version Depth |
44.7 mm |
| Weight |
Approx. 0.46 kg (Including Connector) |
| Compliance |
|
| EMC |
EN 61000-4-2 (IEC 801-2), EN 61000-4-4 (IEC 801-4) |
