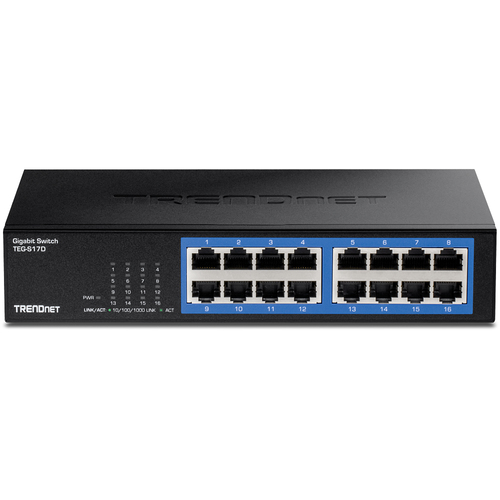

The 16-Port Gigabit Desktop Switch, model TEG-S17D, provides high bandwidth performance, ease of use, and reliability. Boost office network efficiency and eliminate network congestion with gigabit speeds and a total switching capacity of 32Gbps with full-duplex mode. A built-in universal power supply reduces cable clutter, and diagnostic LEDs help with network troubleshooting. Plug and play this sturdy metal switch for reliable high-speed network connectivity.
Gigabit Speeds
Gigabit ports provide high-speed network connections to 16 devices, and a 32Gbps switching capacity allows data traffic to flow smoothly, reducing traffic bottlenecks.
Housing Design

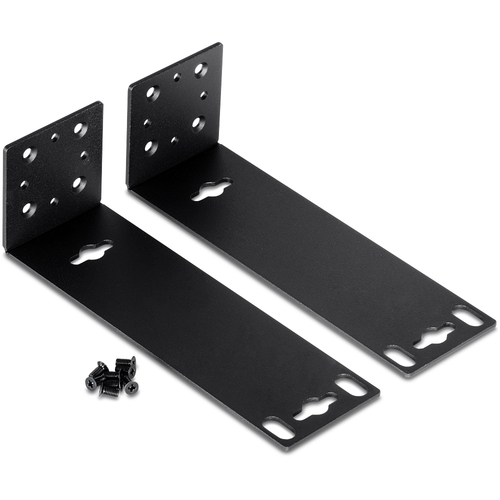

With a compact and sturdy metal housing design, this switch is well-suited for desktop or rackmount installations (brackets included).
Fanless
Fanless design lowers energy consumption and reduces distracting operating noise.
Specifications
| Ports & interfaces |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
| Full duplex |
Yes |
| Half duplex |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
0.5 MB |
| Jumbo frames support |
Yes |
| Forwarding rate |
23.8 Mpps |
| Switching capacity |
32 Gbit/s |
| MAC address table |
8000 entries |
| Design |
| LED indicators |
Yes |
| Product colour |
Black |
| Rack mounting |
Yes |
| Performance |
| Mean time between failures (MTBF) |
11121721 h |
| Fanless |
Yes |
| Power |
| Power consumption (max) |
9.19 W |
| Input current |
0.2 A |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight |
414 g |
| Height |
43 mm |
| Depth |
216 mm |
| Width |
132 mm |
| Certificates |
| Certification |
FCC CE ETL |
