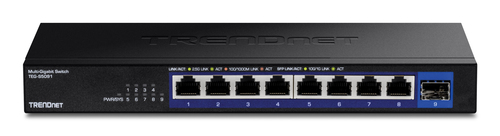

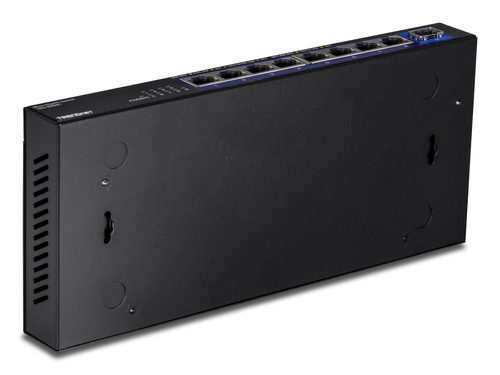

Expand your network’s bandwidth and reduce digital bottlenecks with TRENDnet’s 9-Port 2.5G Unmanaged Switch with 10G SFP+ Port. This 2.5G switch with an SFP+ port comes equipped with 2.5GBASE-T RJ-45 ports that provide speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling, and a 10G SFP+ slot for ultra-fast, long-distance fiber networking. Each 2.5G switch with an SFP+ port features a durable metal enclosure and can be mounted to the wall for setup flexibility. The fanless design lowers energy consumption and eliminates operating noise. TRENDnet’s reliable 2.5G Ethernet switches with a 10G SFP+ port are cost-effective solutions to increase your network’s throughput.
Specifications
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| SFP+ module slots quantity |
1 |
| 2.5G Ethernet (copper) ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| Full duplex |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
| Jumbo frames |
12000 |
| Jumbo frames support |
Yes |
| Forwarding rate |
44.6 Mpps |
| Switching capacity |
60 Gbit/s |
| MAC address table |
4000 entries |
| Design |
| Wall mountable |
Yes |
| Performance |
| Mean time between failures (MTBF) |
674176 h |
| Fanless |
Yes |
| Power |
| Power consumption (max) |
9.5 W |
| Input current |
1 A |
| DC input voltage |
12 V |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Height |
27 mm |
| Depth |
105 mm |
| Width |
240 mm |
| Certificates |
| Certification |
FCC CE |
