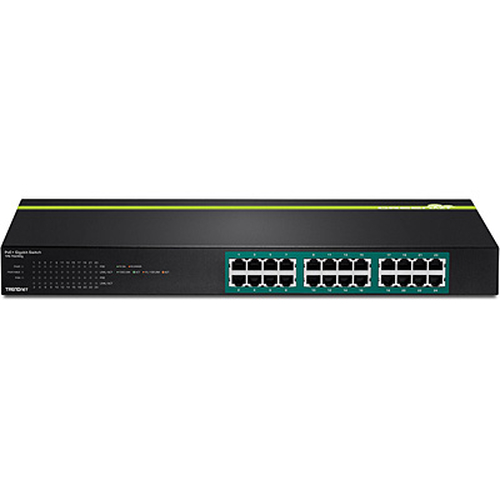

TRENDnet’s 24-Port Gigabit PoE+ Switch, model TPE-TG240g, offers 24 x Gigabit PoE+ ports, a 48 Gbps switching capacity, and a PoE power budget of 370 Watts. This rugged metal switch comes with a rack mount kit.
Specifications
| Management features |
| Switch layer |
L2 |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Gigabit Ethernet (copper) ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Network |
| Flow control support |
Yes |
| Full duplex |
Yes |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
0.512 MB |
| Jumbo frames support |
Yes |
| Throughput |
35.7 Mpps |
| Throughput |
35.7 Mpps |
| Switching capacity |
48 Gbit/s |
| MAC address table |
8000 entries |
| Design |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Rack mounting |
Yes |
| Power |
| Power consumption (typical) |
36 W |
| Input current |
0.75 A |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
110 - 240 V |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
370 W |
| Power over Ethernet plus (PoE+) ports quantity |
24 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight |
3.6 kg |
| Height |
44 mm |
| Depth |
250 mm |
| Width |
440 mm |
| Packaging content |
| Quick start guide |
Yes |
| Certificates |
| Certification |
CE FCC |
