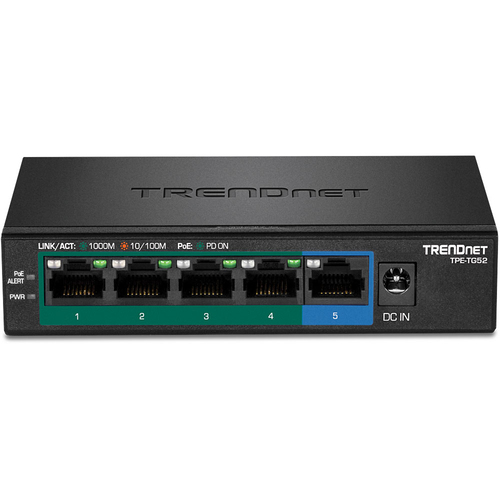

TRENDnet's 5-Port Gigabit PoE+ Switch, model TPE-TG52, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch features four gigabit PoE+ ports and one gigabit port, with a 32W total PoE power budget. The TPE-TG52 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.
PoE+
A 32W PoE power budget supports up to four Power over Ethernet devices.
Gigabit Ports
Five gigabit ports provide a 10Gbps switching capacity to support edge network installations.
Compact Design
Compact, lightweight, and fanless, this switch is designed for desktops and quiet environments.
Jumbo Frame
Sends Jumbo Frames (up to 9KB) for increased performance
Fanless
Fanless design is ideal for quiet environments that require silent operation
Specifications
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Power connector |
DC-in jack |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Network |
| VLAN support |
Yes |
| Full duplex |
Yes |
| Half duplex |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| Optical fiber |
| Switching optical modules type |
Gigabit Ethernet |
| Data transmission |
| Packet buffer memory |
0.128 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Forwarding rate |
7.44 Mpps |
| Switching capacity |
10 Gbit/s |
| MAC address table |
2000 entries |
| Design |
| Wall mountable |
Yes |
| LED indicators |
Activity, Link, PoE, Power |
| Housing material |
Metal |
| Product colour |
Black |
| Performance |
| MTBF (PoE) |
3516000 h |
| Fanless |
Yes |
| Power |
| Power consumption (max) |
36 W |
| Input current |
1.2 A |
| DC input voltage |
54 V |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power source |
AC/DC |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
32 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
4 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight |
246 g |
| Height |
26 mm |
| Depth |
75 mm |
| Width |
121 mm |
| Certificates |
| Certification |
CE, FCC, LVD |
