Product Code: PTHO-209
MPN #: A40L-A001-1002

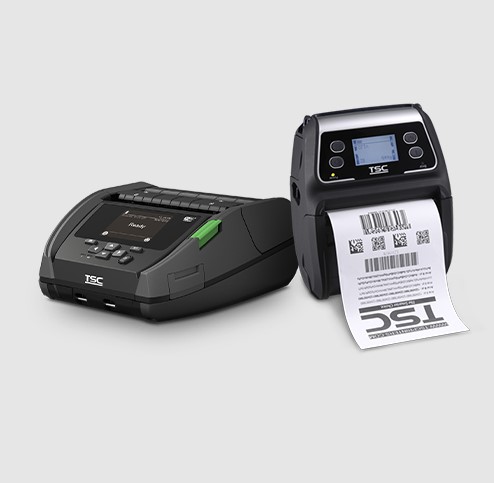

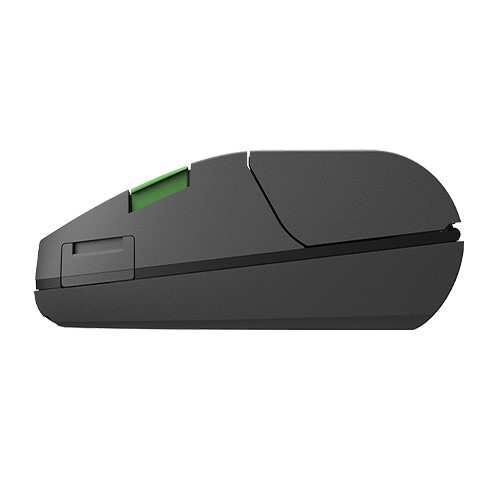

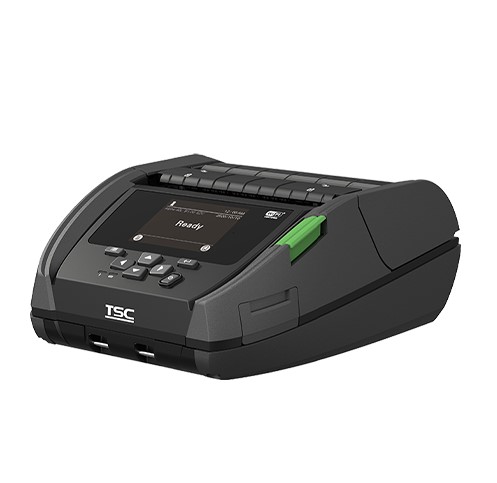

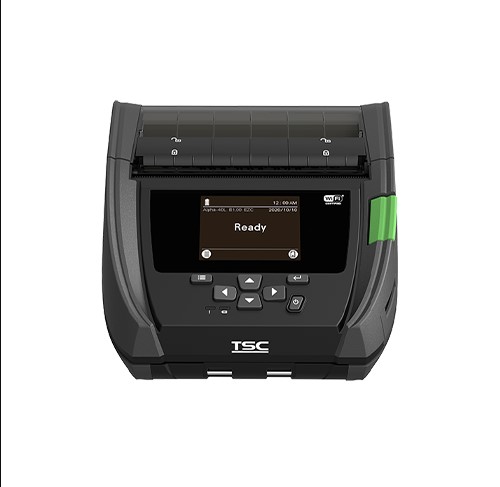

Imagine you are on the warehouse floor and need a label in seconds. The TSC Alpha-40L, 8 dot/mm (203 dpi), Peel sensor Mobile Printer gives you that instant print power in the palm of your hand. It is a compact, battery-operated printer that creates clear barcodes, receipts, and tags wherever you work. If you have ever waited for a fixed printer or struggled with tangled cords, this mobile solution removes the delay and keeps your workflow moving.
The biggest problem for field staff is the lack of a reliable, on-the-spot label maker. Without a printer that can travel, you waste time walking back to a desk, and errors increase. This matters because every minute of downtime costs money and customer satisfaction. The Alpha-40L solves the issue with a rugged, lightweight design, fast 127 mm/second printing, and a peel sensor that automatically separates each label, so you can print and apply in one smooth motion.
| Model | Alpha-40L |
| Resolution | 8 dots/mm (203 dpi) |
| Printing Method | Direct Thermal |
| Max. Print Speed | Up to 127mm (5")/second |
| Max. Print Width | 104mm (4.09") |
| Max. Print Length | 2,794mm (110") |
| Enclosure | Plastic with rubber over molded |
| Physical Dimension | 160mm (W) x 191mm (H) x 79mm (D) |
| Weight (Including Battery) | 985g (2.17lbs) |
| Drop Specification | 1.8m (6ft), with protective case can be 2.5m (8.2ft) |
| IP Rating | IP54 (without case, paper path is excluded) |
| Max. Roll Capacity | 67mm (2.64") OD |
| Processor | 32-bit RISC CPU |
| Memory |
Standard: 128 MB SDRAM, 128 MB Flash, microSD card reader for Flash memory expansion, up to 32 GB Factory Option: 256 MB SDRAM, 512 MB Flash |
| Interface | Either one selected |
| Interface | Type C USB 2.0 + 802.11 a/b/g/n/ac with Bluetooth 5.0 + Passive NFC tag |

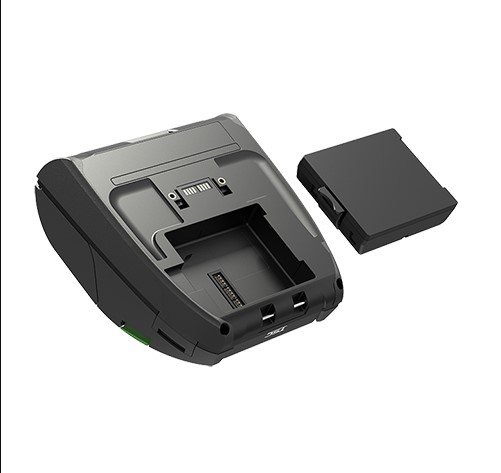

| Power | 7.4V DC, 6,200mAh Li-ion rechargeable smart battery |
| Operation | Switch, Button 7 buttons (Power, Feed/Pause, Menu, Navigation keys) |
| User Interface |
2 LED indicators (battery charging status, printer status), 2.3" color LCD display, 320 x 240 pixels |
| Sensors |
Peel sensor Head open sensor |
| Real Time Clock | Standard |
| Internal Fonts | 8 alpha-numeric bitmap fonts |
| Internal Fonts | Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font |
| Barcode | 1D barcode |
| Barcode |
Code128UCC, Code128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Standard 2 of 5, Industrial 2 of 5, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, EAN14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS |
| Barcode | 2D barcode |
| Barcode | CODABLOCK F mode, GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF417, TLC39 |
| Printer Language | TSPL-EZC (EPL2, ZPL2, CPCL), or ESC-POS |
| Media Type | Die cut, black mark, receipt, fan-fold, linerless, continuous (outside wound) |
