Tired of loose connections that cause your machines to stop working? The Turck PKW3M-1-PSG3M/TEY Actuator and Sensor Cable, PVC Extension Cable gives you a solid link between your actuator and sensor so you can keep production moving. It is built for industrial environments where a reliable signal is essential, and it solves the common problem of short, fragile wiring that wears out quickly.

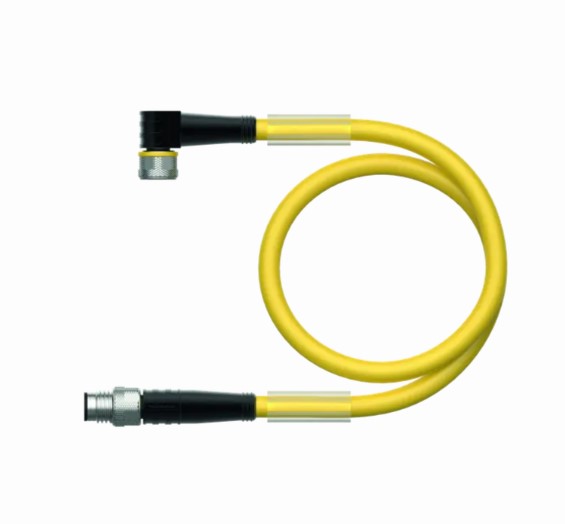

Turck PKW3M-1-PSG3M/TEY Actuator and Sensor Cable, PVC Extension Cable
Many factories face signal loss because the original cables are too short or not protected against dust and temperature changes. When a signal drops, the whole line can halt, costing time and money. This Turck cable extends the reach by one metre, adds a sturdy PVC jacket, and uses reliable brass connectors that stay tight even in vibration. The result is a clear, uninterrupted signal that lets your equipment run smoothly.
Key Features
- Length: 1 m
- Cable diameter: 4.3 mm
- Core cross-section: 0.34 mm
- Three-pin connectors on each end
- Connector A: female, angled, M8 1
- Connector B: male, straight, M8 1
- Connector material: brass
- Plug body: plastic
- Cable material: PVC
- Approved cULus for safety compliance
Specifications
| Application |
Signal |
| Design |
Extension Cable |
| Approvals |
cULus |
| Cable color |
Yellow |
| Cable diameter |
4.3 mm |
| Cable length |
1 m |
| Cable quality |
PVC |
| Core cross-section |
0.34 mm² |
| Current |
4 A |
| Plug body |
Plastic |
| Connector A |
|
| Connector A |
Female, M8 × 1, Angled |
| Connector A - Number of pins |
3 |
| Coupling nut/screw material A |
Brass |
| Connector B |
|
| Connector B |
Male, M8 × 1, Straight |
| Connector B - Number of pins |
3 |
| Connector B - Material coupling nut/screw |
Brass |
| Environmental conditions |
|
| Ambient temperature min. |
-5 °C |
| Ambient temperature max. |
80 °C |
