Imagine a home or office where every device streams, works, and plays without a single lag. The Ubiquiti Dream 7, Wi-Fi 7 Tri-band Tabletop Router, 10G Cloud Gateway is built for that need. It is a powerful router that gives you fast wireless and wired connections in one compact box. If you are tired of dropped video calls, slow game updates, or crowded Wi-Fi, this router solves those problems with the newest Wi-Fi 7 technology.

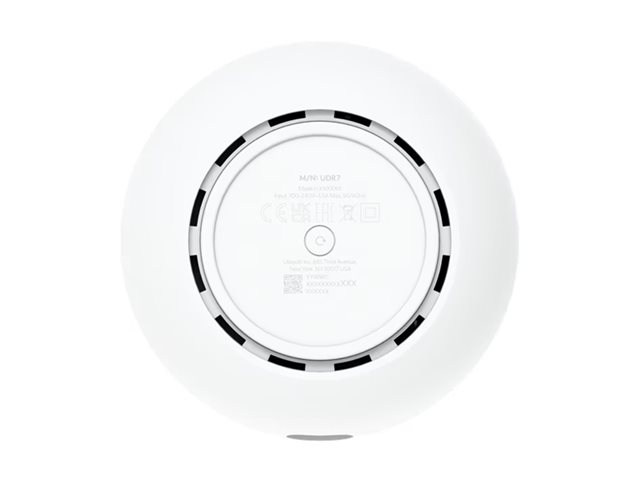

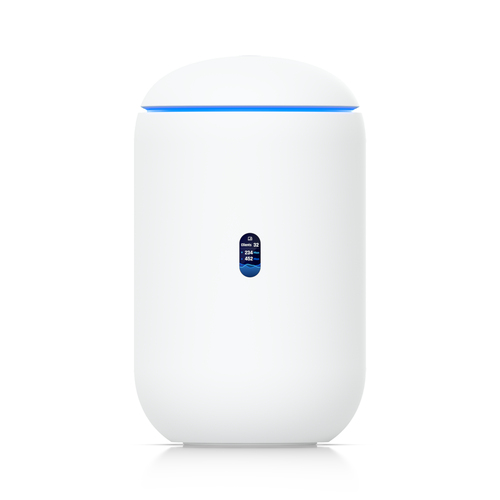

Ubiquiti Dream 7, Wi-Fi 7 Tri-band Tabletop Router, 10G Cloud Gateway
Many users struggle with too many devices fighting for bandwidth. When the network is overloaded, work files stall and family movies buffer. This matters because it wastes time and creates frustration. The Dream 7 router clears the bottleneck by using three separate frequency bands and a 10 Gbps cloud gateway. It separates traffic, speeds up each device, and gives you a stable connection you can rely on.
Key Features
- Wi-Fi 7 (802.11be) on 2.4 GHz, 5 GHz, and 6 GHz bands.
- Two WAN ports: one 10 Gb Ethernet, one 2.5 Gb Ethernet.
- Three LAN ports: two 2.5 Gb Ethernet, one 2.5 Gb PoE.
- Supports OSPF routing and VPN protocols (IPSec, OpenVPN, WireGuard, L2TP).
- 300+ concurrent clients and 4 BSSIDs per radio.
- 2.3 Gbps IDS/IPS throughput for strong threat protection.
- 3 GB RAM for smooth multitasking and fast processing.
- Internal antennas for a clean tabletop design.
- WPA-PSK, WPA2-Enterprise, WPA3-Enterprise encryption options.
- Operating temperature from 14 F to 104 F and humidity up to 95%.
Specifications
| Miscellaneous |
|
| Encryption Algorithm |
WPA3-Enterprise |
| Color Category |
White |
| Networking |
|
| WAN Ports Qty |
2 |
| Network |
IGMP |
| Form Factor |
Desktop |
| Connectivity Technology |
Wired |
| Key Features |
VPN support |
| Routing Protocol |
OSPF |
| Integrated Switch |
3-port switch |
| Data Link Protocol |
IEEE 802.11be (Wi-Fi 7) |
| Type |
Wireless router |
| Wireless Protocol |
802.11a/b/g/n/ac/ax/be |
| Dimensions & Weight |
|
| Height |
7.2 in |
| Width |
4.3 in |
| Depth |
4.3 in |
| Header |
|
| Model |
Dream Router 7 |
| Product Line |
Ubiquiti |
| Packaged Quantity |
1 |
| Environmental Parameters |
|
| Min Operating Temperature |
14 °F |
| Max Operating Temperature |
104 °F |
| Humidity Range Operating |
5 - 95% (non-condensing) |
| General |
|
| Capacity |
BSSIDs per radio: 4 ¦ Number of concurrent clients: 300+ ¦ IPS signatures: 20000 |
| Built-in Devices |
Status LCD |
| Encryption Algorithm |
WPA-PSK, WPA2-Enterprise, WPA3-Enterprise, WPA-Enterprise |
| Status Indicators |
System |
| Frequency Band |
2.4 GHz / 5 GHz / 6 GHz |
| Authentication Method |
RADIUS, RADSEC |
| Enclosure Type |
Desktop |
| Performance |
IDS/IPS throughput: 2.3 Gbps, Maximum data rate (2.4 GHz): 688 Mbps, Maximum data rate (5 GHz): 4.3 Gbps
Maximum data rate (6 GHz): 5.7 Gbps, Channel width: 20 / 40 / 80 / 160 / 240 / 320 MHz
|
| RAM |
3 GB |
| Connectivity Technology |
Wired, wireless |
| Network / Transport Protocol |
IPSec, OpenVPN, WireGuard, L2TP, DHCP, IGMP, IPv6 |
| Device Type |
Wireless router - 3-port switch (integrated) |
| Routing Protocol |
OSPF |
| Data Link Protocol |
IEEE 802.11be (Wi-Fi 7), IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
| Expansion / Connectivity |
|
| Interfaces |
LAN: 2 x 2.5GBase-T - RJ-45, LAN: 1 x 2.5GBase-T (PoE) - RJ-45, WAN: 1 x 10Gb Ethernet - RJ-45,
WAN: 1 x 2.5G Gigabit Ethernet - RJ-45
|
| Power |
|
| Power Device |
Internal power supply - 50 watt |
| Antenna |
|
| Antenna |
Internal |
| RAM |
|
| Installed Size |
3GB |
